Agilent Varian Mini-TASK - REBUILT

Call for Price

In stock
SKU
REBUILT_MiniTASK
Weight 18 lbs
Pumping Speed 40-60 l/s
Ultimate Pressure 3.75 x 10-8 torr

Agilent Varian Mini-TASK KF-40 9699170 / EX9699170 Turbomolecular Vacuum Pump System - REBUILT

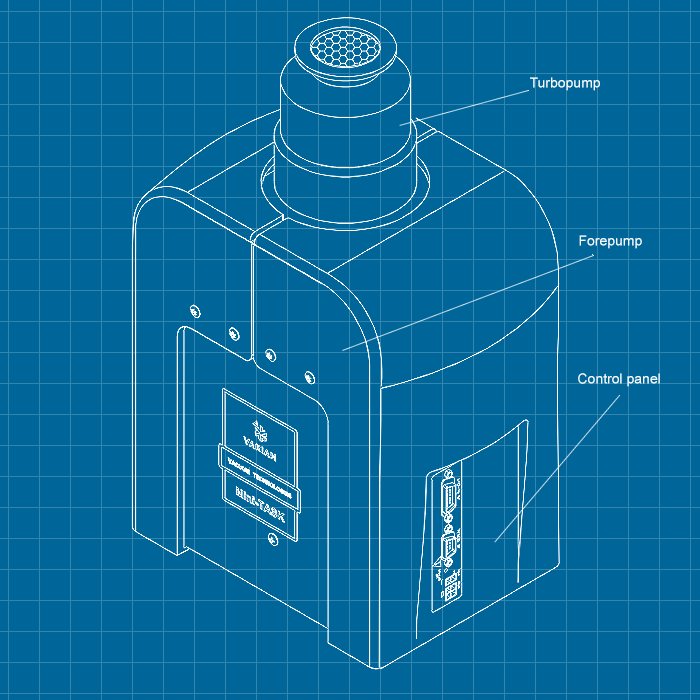

A small and compact, easy-to-use, integrated dry vacuum system, featuring the Agilent Turbo-V 81 MacroTorr pump with improved vacuum performance, backed by a dry 10 l/min diaphragm pump. Operability in any position, no maintenance required. Active Gauge capability, large pressure display, T-Plus Navigator Software to connect to your PC. Universal voltage (90V/240V), CE/CSA certified.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Pumping speed (l/s) With CF 4.5" or ISO-63:
N2: 60 l/s
He: 55 l/s
H2: 40 l/s
With KF-40 NW:
N2: 40 l/s
He: 45 l/s
H2: 36 l/s
Base pressure* 5 x 10-8 mbar (3.75 x 10-8 Torr)

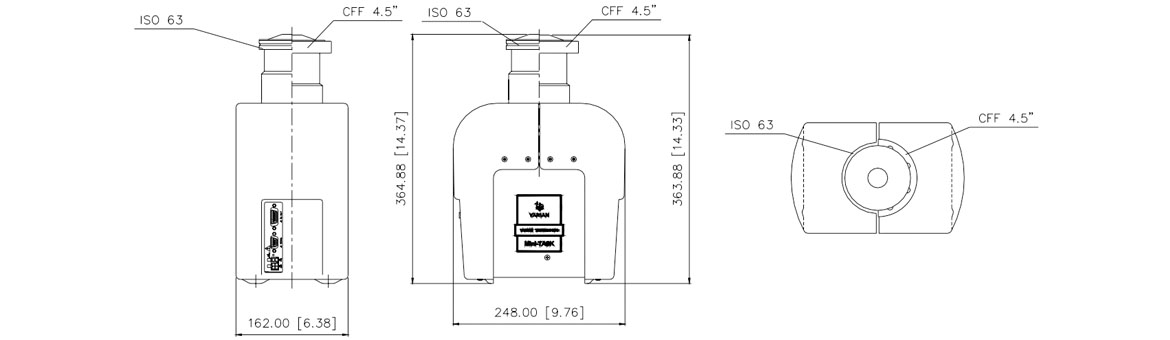

Inlet flange CF 4.5" O.D.; ISO-63; KF-40 NW
Rotational speed 75,000 rpm
Start-up time < 2 minutes
Operating position Any
Operating ambient temperature     + 5°C to + 35°C
Bakeout temperature 120°C at inlet flange max. (CF flange)
80°C at inlet flange max. (ISO flange)
Noise level 55 dB(A) at 1 meter
Lubricant Permanent lubrication
Power supply (Line type):
    Input voltage:
    Input frequency:
    Max input power:
    Stand-by power:

100-240 VAC
50/60 Hz
220 VA
10 W
Protection fuse 2.5 A
Compliance with: UNI EN 292-1
UNI EN 292-2
EN 55011 (Class A Group 1)
EN 61000/3/2
EN 61000/3/3
EN 61000/4/2
EN 61000/4/3
EN 61000/4/4
EN 61010-1
EN 1012-2
Installation category II
Pollution degree 2
Power cable With European, USA or UK plug 2 meters long
Serial communication (kit) RS232 cable with a 9-pin D type male connector and a 9-pin D type female connector, and software (optional)
Storage temperature -20°C to +70°C
Weight kg (lbs) ISO and KF: 7.5 (16) CFF: 8.3 (18)

Specifications

Type Label Description Download
Varian Mini-TASK - REBUILT Instruction Manual Download
Agilent Mini-TASK AG81 - REBUILT Instruction Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian Mini-TASK KF-40 9699170 / EX9699170 Turbomolecular Vacuum Pump System - REBUILT

9699170 / 969-9170  Turbo-V 70LP  KF-40
9699171 / 969-9171  Turbo-V 70LP  ISO-63
9699172 / 969-9172  Turbo-V 70LP  4.5" CF

03663946  Turbo-V 70 NAV controller
KNF Neuberger PJ14278-84.5 diaphragm pump

9699180 / 969-9180  Turbo-V 81M  KF-40 AG81
9699181 / 969-9181  Turbo-V 81M  ISO-63 AG81
9699182 / 969-9182  Turbo-V 81M  4.5" CF AG81
