Agilent RPS / MS-631 - NEW
Weight
3050 lbs
Pumping Speed
2770 cfm
Ultimate Pressure
≤ 5 x 10-3 mbar
Agilent RPS / MS-631 Roots Vacuum Pump System - NEW
Roots Pumping Systems (RPS) consist of one MS rotary vane pump and one RP roots pump, assembled on a dedicated frame, and connected in series with a flexible hose. This assembly is shipped with the pumps mounted on the frame and leak checked. Both pumps are equipped with motor.
State-of-the-art, high performance Agilent Roots pumps are ideal for use in demanding industrial applications:
Highest compression ratio
Agilent Roots pumps can withstand high mechanical loads reducing pumpdown cycles
Lowest base pressure: 5 x 10-3 mbar (4 x 10-3 Torr)
Questions? send an email to our sales team!
Specifications
RPS-2001/631
RPS-3001/631
RPS-4001/631
Nominal pumping speed
2,400 m3 /h (1,415 cfm) @ 60 Hz3 /h (1,180 cfm) @ 50 Hz
3,450 m3 /h (2,030 cfm) @ 60 Hz3 /h (1,710 cfm) @ 50 Hz
4,700 m3 /h (2,770 cfm) @ 60 Hz3 /h (2,300 cfm) @ 50 Hz
Ultimate total pressure (gas ballast closed)
≤ 5 x 10-3 mbar (≤ 4 x 10-3 Torr)
Roots pump start up pressure
≤ 55 mbar (≤ 42 Torr)
≤ 30 mbar (≤ 23 Torr)
≤ 16 mbar (≤ 12 Torr)
Power
8.8 + 18.5 kW (11.8 + 24.8 hp) @ 60 Hz
12.5 + 18.5 kW (16.7 + 24.8 hp) @ 60 Hz
12.5 + 18.5 kW (16.7 + 24.8 hp) @ 60 Hz
Power supply voltage
Δ400/Υ690 V @ 50 Hz
Noise level*
78 / 80 dB(A)
79 / 81 dB(A)
Oil charge
2.5 + 22.0 liter (2.6 + 23.2 qt)
7.0 + 22.0 liter (7.4 + 23.2 qt)
Working ambient temperature range
12 to 40°C (54 to 105°F)
Storage temperature
-20 to 70°C (-4 to 158°F)

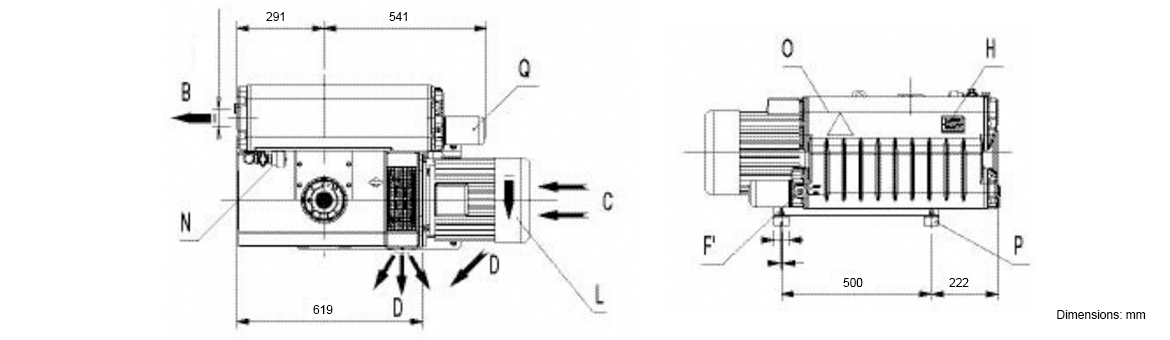

Dimensions
1,050 x 1,575 [1,605 version 60 Hz] x 1,516 mm
1,050 x 1,615 x 1,516 mm
1,050 x 1,636 x 1,576 mm
Weight
1,115 kg (2,460 lbs) @ 60 Hz
1,255 kg (2,700 lbs) @ 60 Hz
1,380 kg (3,050 lbs) @ 60 Hz
* Measured according to EN ISO 2151 (50/60 Hz)
Specifications
Type
Label
Description
Download
Agilent MS-631FL Series - NEW
User Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent RPS / MS-631 Vacuum Pump System - NEW
X3756-64002 RPS-2001/631 400/690V 50Hz
X3756-64007 RPS-2001/631 400/690V 50Hz - 460V 60Hz
X3756-64012 RPS-2001/631 230/460V 60Hz (US version)
X3756-64017 RPS-2001/631 220/380V 60Hz
X3756-64003 RPS-3001/631 400/690V 50Hz
X3756-64008 RPS-3001/631 400/690V 50Hz - 460V 60Hz
X3756-64013 RPS-3001/631 230/460V 60Hz (US version)
X3756-64018 RPS-3001/631 220/380V 60Hz
X3756-64004 RPS-4001/631 400/690V 50Hz
X3756-64009 RPS-4001/631 400/690V 50Hz - 460V 60Hz
X3756-64014 RPS-4001/631 230/460V 60Hz (US version)
X3756-64019 RPS-4001/631 220/380V 60Hz
