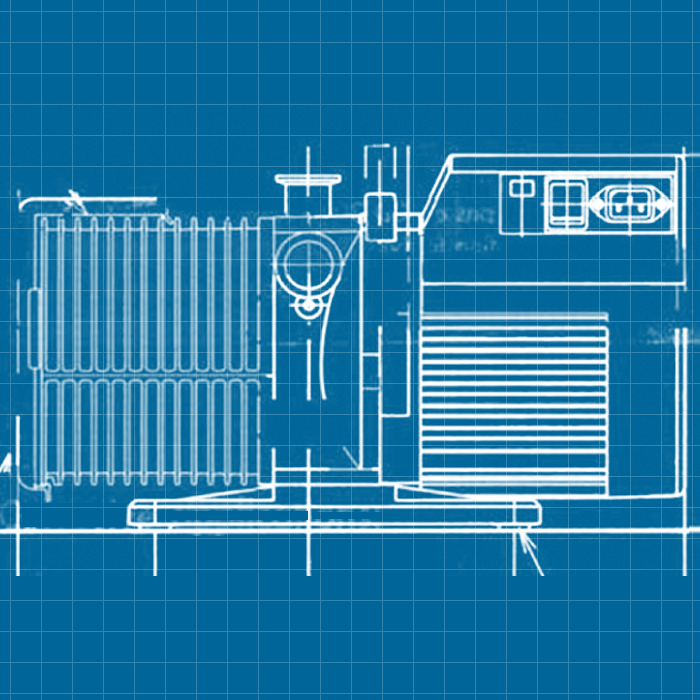

Agilent Varian SD 200 / 201 - REBUILT
| Weight |
57 lbs |
| Pumping Speed |
6.8 cfm |
| Ultimate Pressure |
1.5 x 10-3 torr |
Agilent Varian SD 200 / 201 Rotary Vane Vacuum Pump - REBUILT
Series 91 through 451 pump models with the following main characteristics:
- A direct drive motor makes them very compact.
- An electrically insulated fold-away handle is used for easy carrying.
- An anti-suckback system ensures the tightness of the pump during accidental or voluntary shutdowns.
- A gas ballast enables the pumping of condensable vapours (except for CP series).
- The universal three-phase or singlephase motor can be disassembled independently of the rest of the pump, without needing to drain the oil case.
- On the oil case, a vertical sight gloss can be used to inspect the oil level easily when filling the tank and during the operation of the pump.
- A neutral gas purge is used to degas oil and dilute pumped gases on CP series models.
If the requested voltage is not in stock then we will purchase a new motor and split the cost with you. They run on various vacuum pump oils.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| SD Series |
Unit |
SD-91 |
SD-201 |
SD-301 |
SD-451 |
| Frequency |
Hz |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
| Number of stages |
2 |
| Rotation speed |
rpm |
1,500 |
1,800 |
1,500 |
1,800 |
1,500 |
1,800 |
1,500 |
1,800 |
| Nominal flow rate |
m3/h (cfm) |
5.4 |
6.5 (3.8) |
9.7 |
11.6 (6.8) |
15 |
18 (10.6) |
20.7 |
24.8 (14.6) |
| Flow rate Pneurop method |
4.8 |
5.7 (3.4) |
8.5 |
10.2 (6) |
12.5 |
15 (8.8) |
16.5 |
20 (11.8) |
| Partial ultimate pressure* w/ Varian GP type oil |
Torr / mbar (Pa) |
7.5 x 10-5 / 1 x 10-4 (1 x 10-2) |
| Ultimate pressure w/ gas ballast closed |
1.5 x 10-3 / 2 x 10-3 (2 x 10-1) |
| Ultimate pressure w/ gas ballast open |
1.5 x 10-2 / 2 x 10-2 (2) |
| Oil capacity |
l |
0.83 |
0.950 |
0.98 |
| Weight (pump + motor)** |
kg (lbs) |
25 (55) |
26 (57) |
27 (59.5) |
28 (62) |
| Maximum water vapour pumping capacity (Ballast flowrate 1.1 m3/h) |
mbar (Pa) |
35 (35 x 102) |
25 (25 x 102) |
20 (2 x 103) |
15 (15 x 102) |
12 (12 x 102) |
10 (1 x 103) |
7 (7 x 102) |
| Water vapour pumping capacity |
g/h |
120 |
110 |
125 |
100 |
110 |
100 |
90 |
| Inlet and exhaust end fittings |
ISO-KF |
DN 25 |
Specifications
| Type |
Label |
Description |
Download |
|
|
Varian SD, CD & CP Series - REBUILT |
Instruction Manual |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian SD 200 / 201 Rotary Vane Vacuum Pump - REBUILT
SD-200 Off the shelf motor, older style pump (Alcatel 2008A)
SD-201 1-phase universal Adixen motor, 110/220V
