Agilent Varian SH-110 - REBUILT
Call for Price
In stock
SKU
REBUILT_SH110
| Weight | 43 lbs |
|---|---|
| Motor Power | 0.25 hp |
| Pumping Speed | 4.0 cfm |
| Ultimate Pressure | 5 x 10-2 Torr |

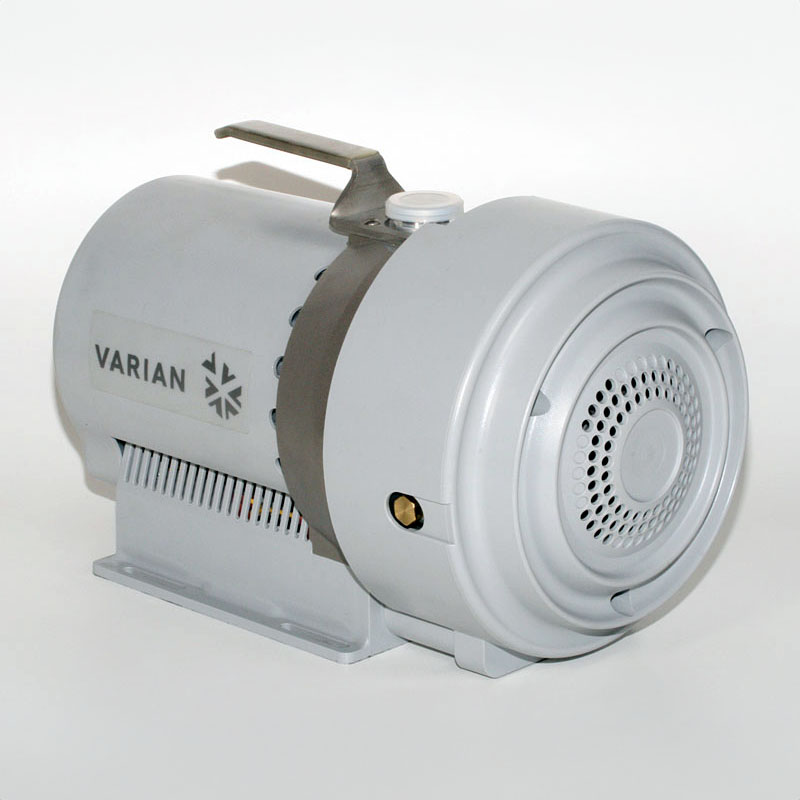

Agilent Varian SH-110 Dry Scroll Vacuum Pump - REBUILT
These Agilent Varian TriScroll pumps are sold rebuilt and come with a one year warranty. The warranty does not cover tip seal maintenance. For example, per OEM specs, scroll pump tip seals must be replaced every 8,000 hours, or slightly less than 11 months, to maintain good base pressure.
Agilent Varian calls their pump "tri" scroll because of the multistage design. For specifications or user manuals go to Agilent Varian for the PTS series TriScroll pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak pumping speed | 50 Hz: 90 L/m, 5.4 m3/hr (3.3 cfm) 60 Hz: 110 L/m, 6.6 m3/hr (4.0 cfm) |
| Media | Clean air. No toxic, corrosive, explosive or particulate forming gases |
| Ultimate pressure (Torr) | 5.0 x 10-2 Torr (6.6 x 10-2 mbar) |
| Maximum inlet pressure | 1.0 atmosphere (0 psig) |
| Maximum outlet pressure | 1.5 atmosphere (7.5 psig) |
| Inlet connection | NW25 |
| Exhaust connection | Female 1/4" National Pipe Thread (NW16 adapter provided) |
| Gas ballast | Female 1/8" National Pipe Thread (20 Micron sintered filter provided) |
| Ambient operating temperature | 5°C to 40°C (41°F to 104°F) |
| Storage temperature | -20°C to 60°C (-4°F to 140°F) |
| Motor rating | 0.25 hp (0.19 kW) |
| Operating voltages | Single-phase: 50-60 Hz 100-115:200-230 VAC |
| Motor thermal protection | Automatic thermal protection |
| Operating speed | 50 Hz: 1,425 rpm, 60 Hz: 1,725 rpm |
| Cooling system | Air-cooled |
| Noise level (per ISO 11201) | 56 dB(A) |
| Vibration level at inlet (per ISO 10816-1) | Class 1B, 1.5 mm/s |
| Leak rate (with exhaust sealed) | <1 x 10-7 sccs helium |
| Fuse type | M5 x 20 mm, 10 A, Slo-Blo, Littelfuse Model H215010 or equivalent |
| Weight | 43 lbs. |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent SH-110 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian SH-110 Dry Scroll Vacuum Pump - REBUILT SH01101UNIV Replaced by IDP-7 X3807-64000 or X3807-64010
