Agilent TriScroll 600 - NEW

Name: Agilent TriScroll 600 - NEW
Brand: Agilent Varian
SKU: NEW_TriScroll600

Be the first to review this product

Starting at $11,760

In stock

Only %1 left

SKU

NEW_TriScroll600

Request For Quote

Weight	87 lbs
Pumping Speed	17.7 cfm
Ultimate Pressure	9.3 x 10^-3 mbar

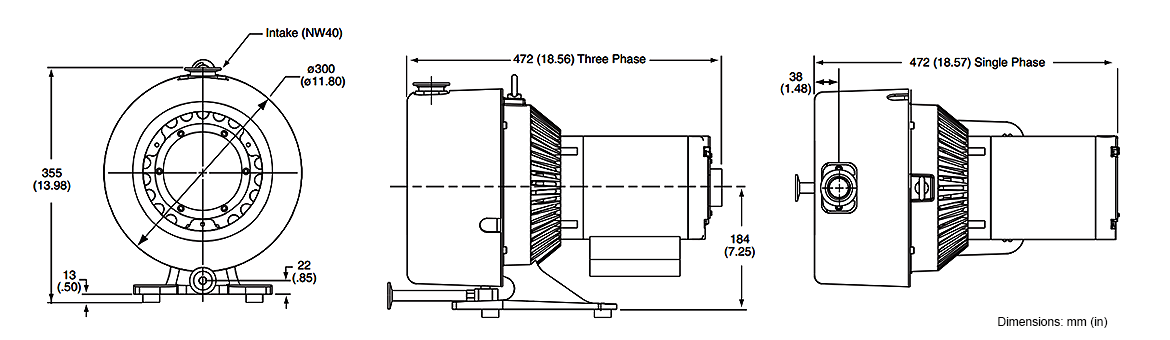

Dimensions

Description

Agilent TriScroll 600 Dry Scroll Vacuum Pump - NEW

Agilent Technologies’ unique, patented TriScroll series features two-stage dry scroll pumps that deliver high pumping speeds and low base pressure. The frequent maintenance requirements of oil-sealed rotary vane pumps are eliminated with dry scroll pumps, simplifying regulatory and environmental compliance, and eliminating oil disposal costs. Agilent TriScroll dry scroll pumps feature proven reliability and durability, providing consistent performance and superior cost of ownership.

The TriScroll 600 pump operates at a pumping speed of 500 liters/minute.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Peak pumping speed	50 Hz: 420 l/m, 25.2 m³/hr (14.8 cfm) 60 Hz: 500 l/m, 30 m³/hr (17.7 cfm)
Media	Clean air. No toxic, corrosive, explosive or particulate forming gases
Ultimate pressure (Torr)	7.0 x 10^-3 Torr (9.3 x 10^-3 mbar)
Maximum inlet pressure	1.0 atmosphere (0 psig)
Maximum outlet pressure	1.1 atmosphere (1.5 psig)
Inlet connection	NW40
Exhaust connection	Female 3/8" National Pipe Thread (NW25 adapter provided)
Gas ballast	Female 1/4" National Pipe Thread (40 Micron sintered filter provided)
Ambient operating temperature	5°C to 40°C (41°F to 104°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Motor rating	1.0 hp (0.76 kW)
Operating voltages	Single-phase: 50-60 Hz 100-115:200-230 VAC Three-phase: 50 Hz 200-230:380-415 VAC, 60 Hz 200-230:460 VAC
Motor thermal protection	Type U automatic
Operating speed	50 Hz: 1,425 rpm, 60 Hz: 1,725 rpm
Cooling system	Air-cooled
Noise level (per ISO 11201)	68 dB(A)
Vibration level at inlet (per ISO 10816-1)	6.3 mm/sec
Weight	87 lbs.

Specifications

Digital Manuals

Type	Label	Description	Download
	Agilent TriScroll 600 - NEW	Installation & Operation Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent TriScroll 600 Dry Scroll Vacuum Pump - NEW

PTS06001UNIV    single-phase motor
PTS06001UNIVEU    1-phase motor, Euro cord
PTS06001UNIVUK    1-phase motor, UK cord
PTS06003UNIV    three-phase motor
PTS06001UVPI    1-phase motor, w/ vacuum isolation valve (VPI), 120 V
PTS06001UVPIEU    1-phase motor, w/ VPI, 220 V, EU power cord
PTS06001UVPIUK    1-phase motor, w/ VPI, 220V, UK power cord
PTS06003200VPI    3-phase motor, w/ VPI, 200 V
PTS06003230VPI    3-phase motor, w/ VPI, 230 V
PTS06003380415VPI    3-phase motor, w/ VPI, 380 / 415 V
PTS06003460VPI    3-phase motor, w/ VPI, 460 V
S4807001    exhaust extension
