Agilent Varian TriScroll PTS600 - REBUILT

Name: Agilent Varian TriScroll PTS600 - REBUILT
Brand: Agilent Varian
SKU: REBUILT_PTS600

Be the first to review this product

$5,830

In stock

Only %1 left

SKU

REBUILT_PTS600

Request For Quote

Weight	70 lbs
Motor Power	1 hp
Pumping Speed	14.8 cfm
Ultimate Pressure	7 x 10^-3 Torr

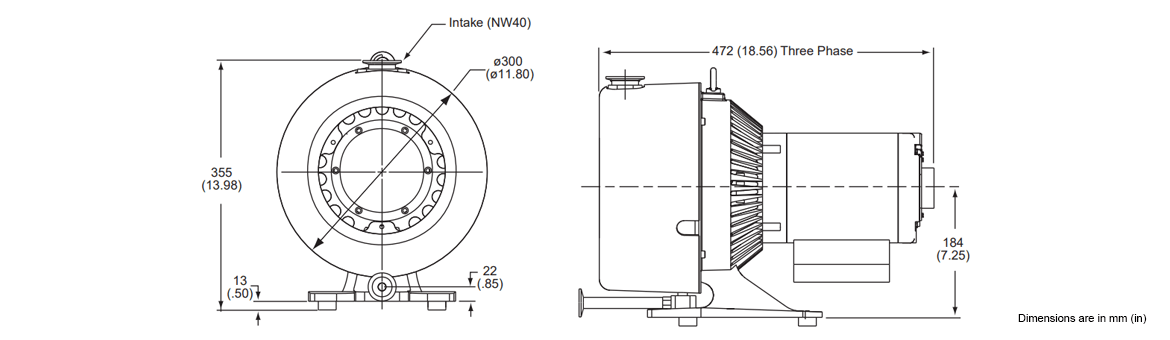

Dimensions

Description

Agilent Varian TriScroll PTS600 Dry Scroll Vacuum Pump - REBUILT

Rebuilt Agilent Varian TriScroll scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Peak pumping speed	50 Hz: 420 l/m, 25.2 m³/hr (14.8 cfm) 60 Hz: 500 l/m, 30 m³/hr (17.7 cfm)
Media	Clean air. No toxic, corrosive, explosive or particulate forming gases
Ultimate pressure (Torr)	7.0 x 10^-3 Torr (9.3 x 10^-3 mbar)
Maximum inlet pressure	1.0 atmosphere (0 psig)
Maximum outlet pressure	1.1 atmosphere (1.5 psig)
Inlet connection	NW40
Exhaust connection	Female 3/8" National Pipe Thread (NW25 adapter provided)
Gas ballast	Female 1/4" National Pipe Thread (40 Micron sintered filter provided)
Ambient operating temperature	5°C to 40°C (41°F to 104°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Motor rating	1.0 hp (0.76 kW)
Operating voltages	Single-phase: 50-60 Hz 100-115:200-230 VAC Three-phase: 50 Hz 200-230:380-415 VAC, 60 Hz 200-230:460 VAC
Motor thermal protection	Type U automatic
Operating speed	50 Hz: 1,425 rpm, 60 Hz: 1,725 rpm
Cooling system	Air-cooled
Noise level (per ISO 11201)	68 dB(A)
Vibration level at inlet (per ISO 10816-1)	6.3 mm/sec
Weight	70 lbs.

Specifications

Digital Manuals

Type	Label	Description	Download
	Agilent TriScroll 600 Series - REBUILT	Installation and Operation Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian TriScroll PTS600 Dry Scroll Vacuum Pump - REBUILT

PTS06001UNIV, EXPPTS06001  1-phase PTS 600
PTS06003UNIV, EXPPTS06003  3-phase PTS 600

S4896001Z Inverter

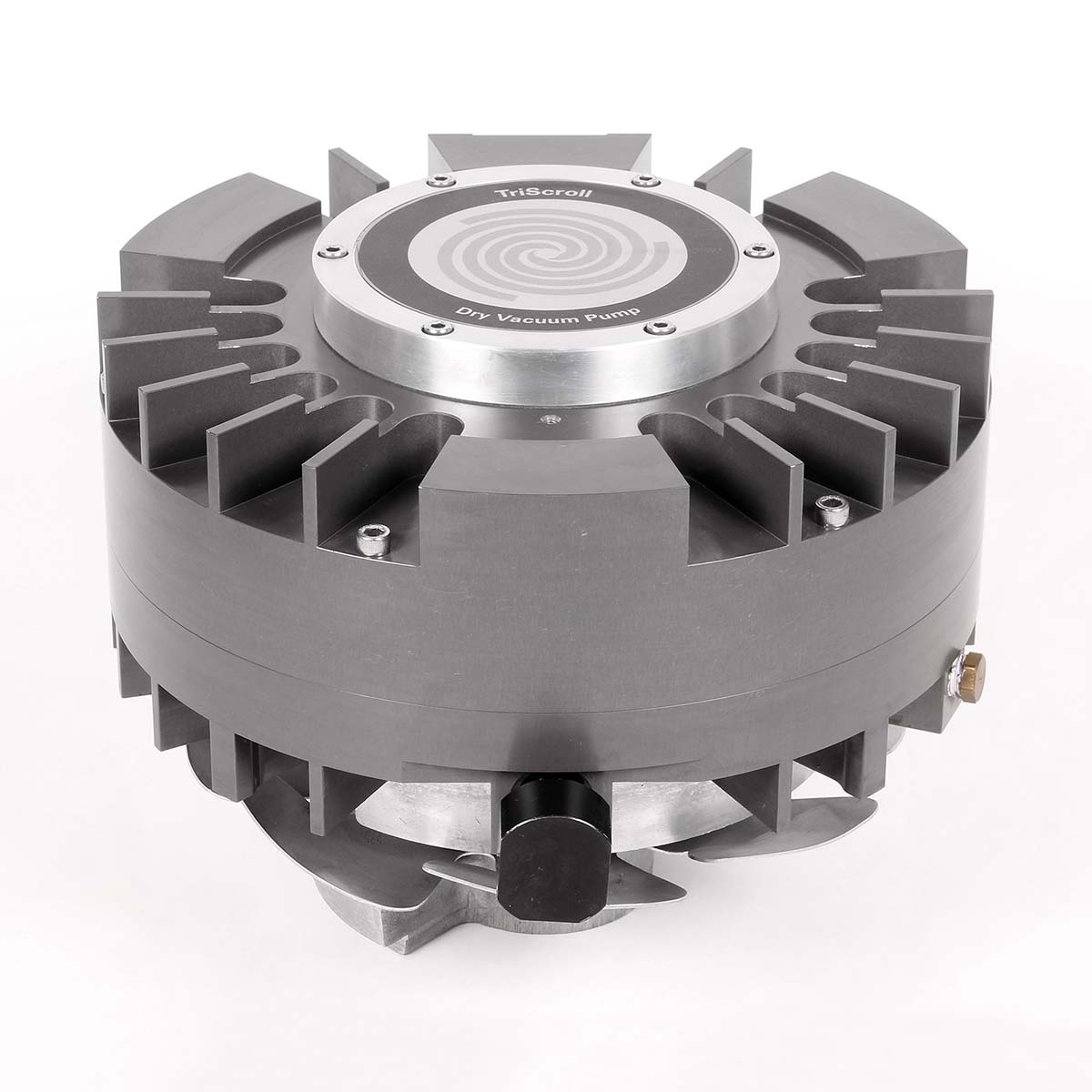

Advance Exchange TriScroll 600 Inverter Pump Module Only
EXPTS0600SC
Service/Rebuild TriScroll 600 Inverter Pump
PTS0600KMA
