Varian Turbo-V 1000HT Macro Torr - REBUILT
Weight
80 lbs
Pumping Speed
250 l/s
Ultimate Pressure
< 2 x 10-10 mbar

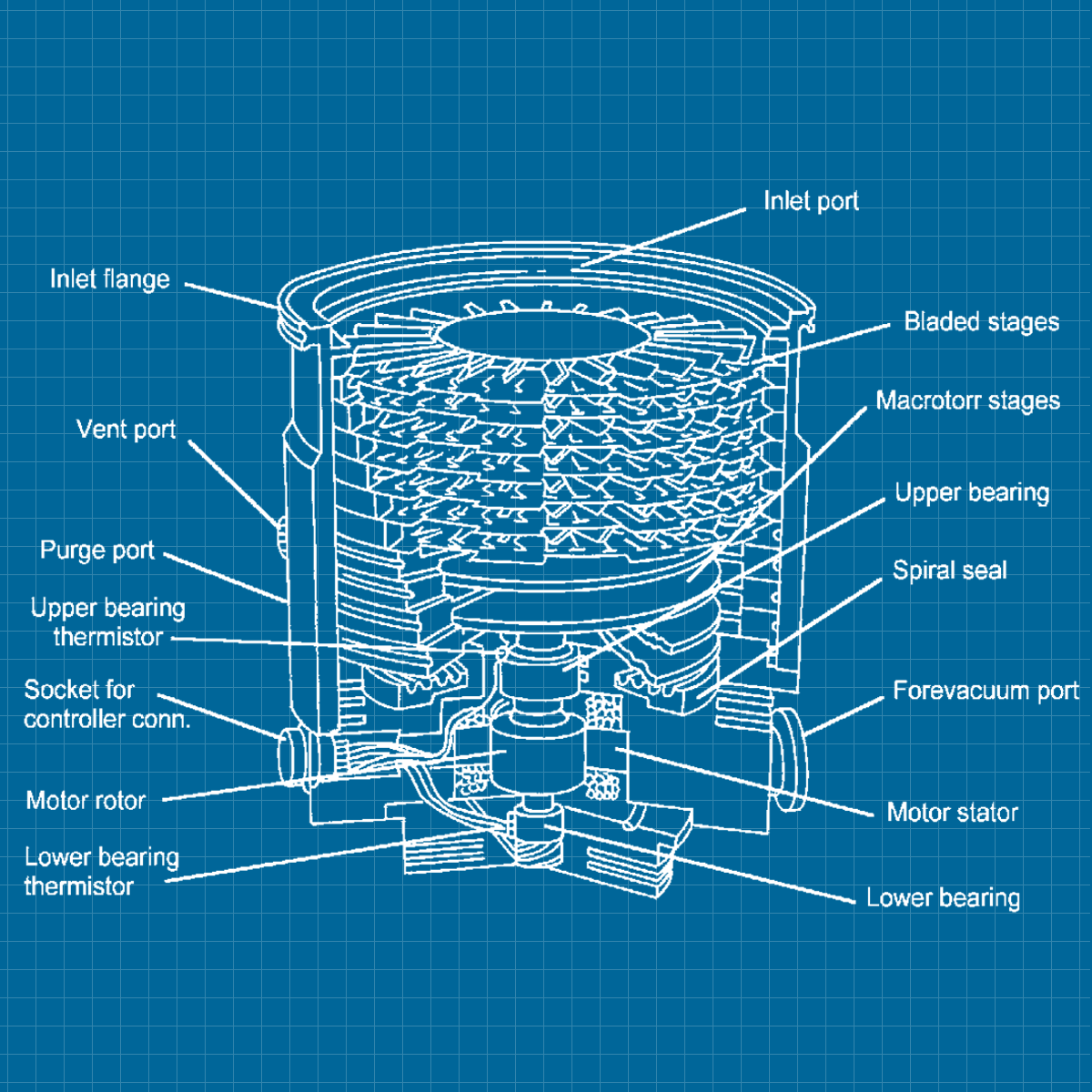

Agilent Varian Turbo-V 1000HT Macro Torr Turbomolecular Vacuum Pump - REBUILT
Each turbo pump must match its controller in reference to the same class. For example the TV 550 pump must match a V550 (stand alone, brick or PCB) controller. We also offer repair service.
Questions? send an email to our sales team!
Pumping speed (l/s)
N2 : 250 l/s He: 220 l/s H2 : 200 l/s
Compression ratio
N2 : 2 x 108 He: 1 x 105 H2 : 1 x 104
Base pressure*
with recommended mechanical fore- pump: 2 x 10-10 mbar (1.5 x 10-10 Torr) with recommended diaphragm fore pump: 2 x 10-8 mbar (1.5 x 10-8 Torr)
Inlet flange
DN 100 CFF (6" O.D.) DN 100 ISO
Foreline flange
NW 16 KF
Rotational speed
56,000 RPM
Start-up time
< 3 minutes
Recommended forepump
Two stage rotary pump SD-40 Diaphragm pump: MDP 30
Operating position
any
Cooling requirements
Natural air convection Forced air or water optional
Operating ambient temperature
+ 5°C to + 35°C
Coolant water
flow: 30 l/h (0.13 GPM) temperature: + 10°C to + 30°C pressure: 3 to 4 bar
Bakeout temperature
120°C at inlet CF flange maximum 80°C with ISO flange
Vibration level (displacement)
< 0.01 μ m at inlet flange
Noise level
45 dB (A) at 1 meter
Input
58 Vac, three phase, 933 Hz
Lubricant
permanent lubrication
Storage temperature
-20°C to +70°C
Weight kg (lbs)
ISO: 3.4 (7.5); CFF: 5.2 (11.4)
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 1000HT Macro Torr Turbomolecular Vacuum Pump - REBUILT
9699074 / 969-9074 ISO-200
9699075 / 969-9075 10" O.D. CF
9699084 / 969-9084 TV 2000HT 12" O.D. CF
