Agilent Turbo-V 1K-G - NEW

$26,000
In stock
Only %1 left
SKU
NEW_TV1KG
Weight 59.10 lbs
Pumping Speed 1,080 l/s
Ultimate Pressure < 1 x 10-10 mbar

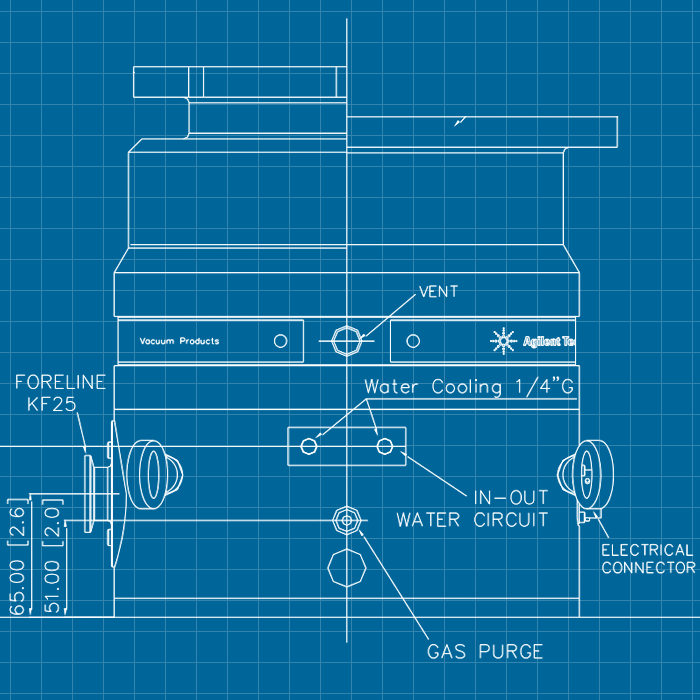

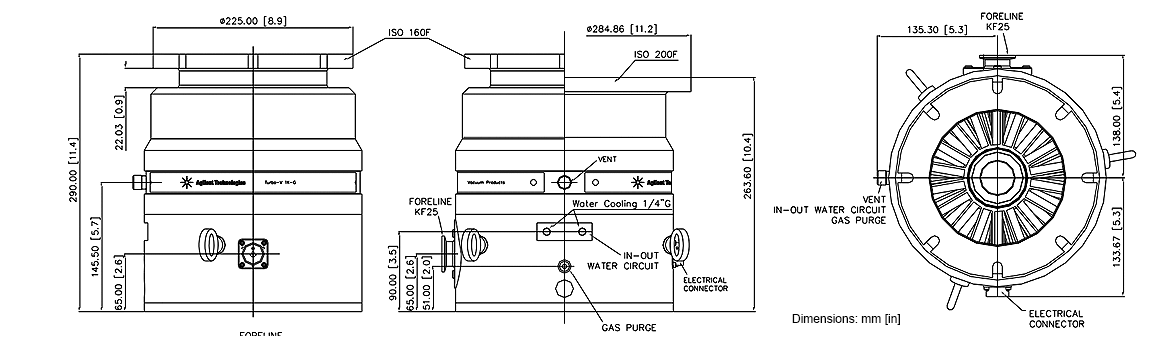

Agilent Turbo-V 1K-G Turbomolecular Vacuum Pump - NEW

The Turbo-V 1K-G is more than a pump. It is a dedicated pumping system, designed specifically for thin film deposition equipment. Its pumping stages, and the entire pump structure, are optimized to work with very high flows of argon gas and very high temperatures. Additionally, there is a possibility to drive the pump with a remote rack controller or an on-board controller. All of these assets make the Agilent Turbo-V 1K-G the optimum pumping solution for the coating industry.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Ambient Operating Temperature
  • +5 to +35 °C
Ambient Storage Temperature
  • -20 to +70 °C
Base Pressure
  • <1 x 10-10 mbar
Compression Ratio H2
  • 1.5 x 104
FlangeType
  • ISO 160 F
  • ISO 200 F
Foreline Flange Size
  • KF 25 NW
  • KF 40 NW
Foreline Tolerance - N2
  • 3 mbar
Nominal Rotation Speed
  • 45.5 KRPM
Operating Position
  • Any
Pumping Speed - Ar
  • 1040 l/s (ISO 200)
Pumping Speed - H2
  • 730 l/s (ISO 200)
Pumping Speed - He
  • 1150 l/s (ISO 200)
Pumping Speed - N2
  • 1080 l/s (ISO 200)
Recommended Forepump Capacity
  • 20 m³/h
Start Up Time
  • < 5 min
Vibration Level
  • < 0.01 μm at inlet flange
Weight
  • 26.8 kg

Specs

Type Label Description Download
Agilent Turbo-V 1K-G - NEW User Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Turbo-V 1K-G Turbomolecular Vacuum Pump - NEW

8698961R002 / 869-8961R002  ISO-160F
8698962R001 / 869-8962R001  ISO-200F

Controller

9698978M005 / 969-8978M005
9699454M002 / 969-9454M002
