Agilent Turbo-V 2K-G - NEW
| Weight | 77.16 lbs |
|---|---|
| Pumping Speed | 1600 l/s |
| Ultimate Pressure | < 1 x 10-8 mbar |

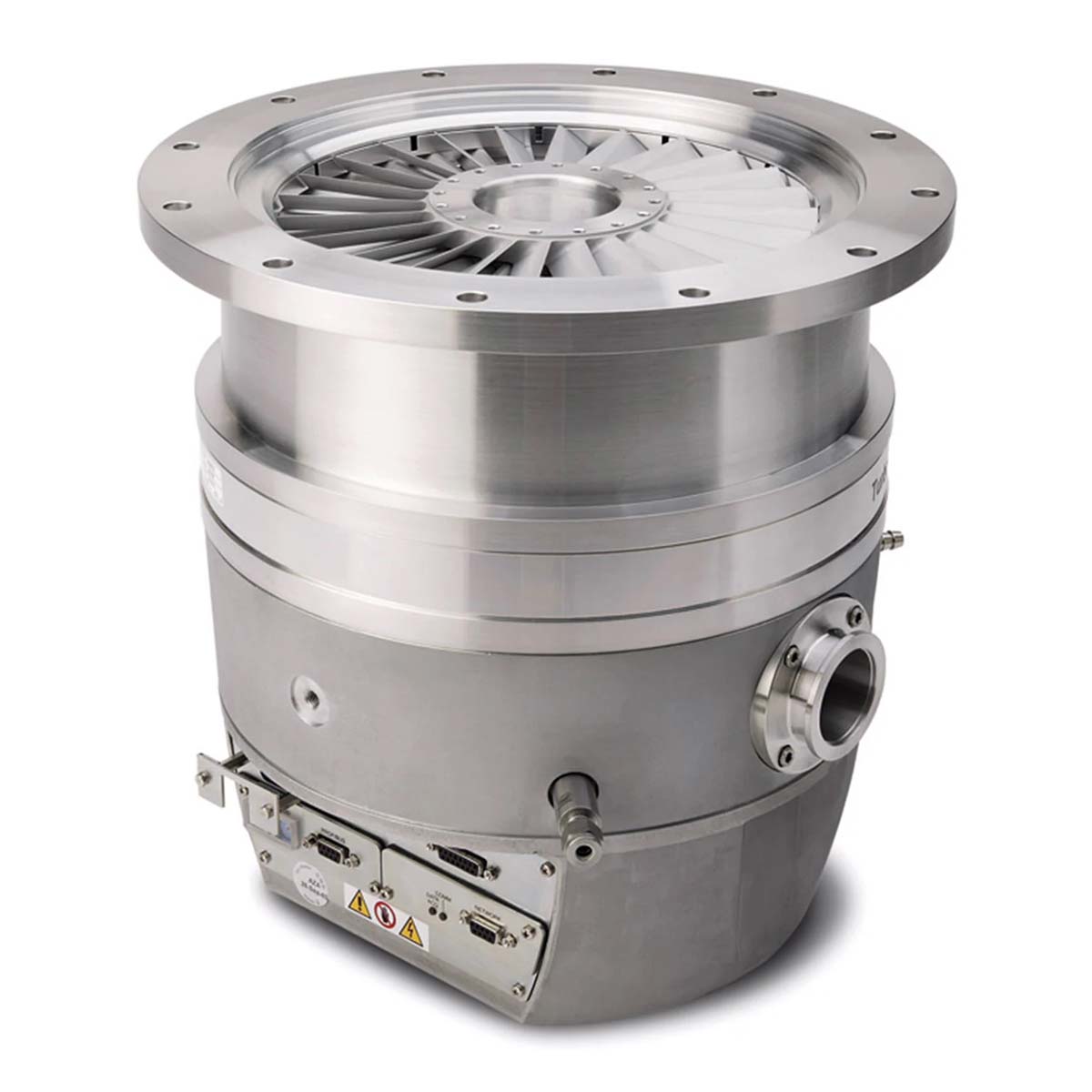

Agilent Turbo-V 2K-G Turbomolecular Vacuum Pump - NEW
The Turbo-V 2K-G is more than a pump. It is a dedicated pumping system, designed specifically for the plasma process industry. Its pumping stages, and the entire pump structure, are optimized to work with very high flows of argon gas and very high temperatures. Additionally, it features built-in control electronics, an integrated vent and purge valve, and maintenance-free bearings. All of these assets make the Agilent Turbo-V 2K-G the optimum pumping solution for the coating industry.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed (w/out inlet screen) N2 Ar |
1,600 l/s 1,400 l/s |
| Compression ratio N2 Ar |
3 x 105 6 x 105 |
| Base pressure | <1 × 10–8 mbar |

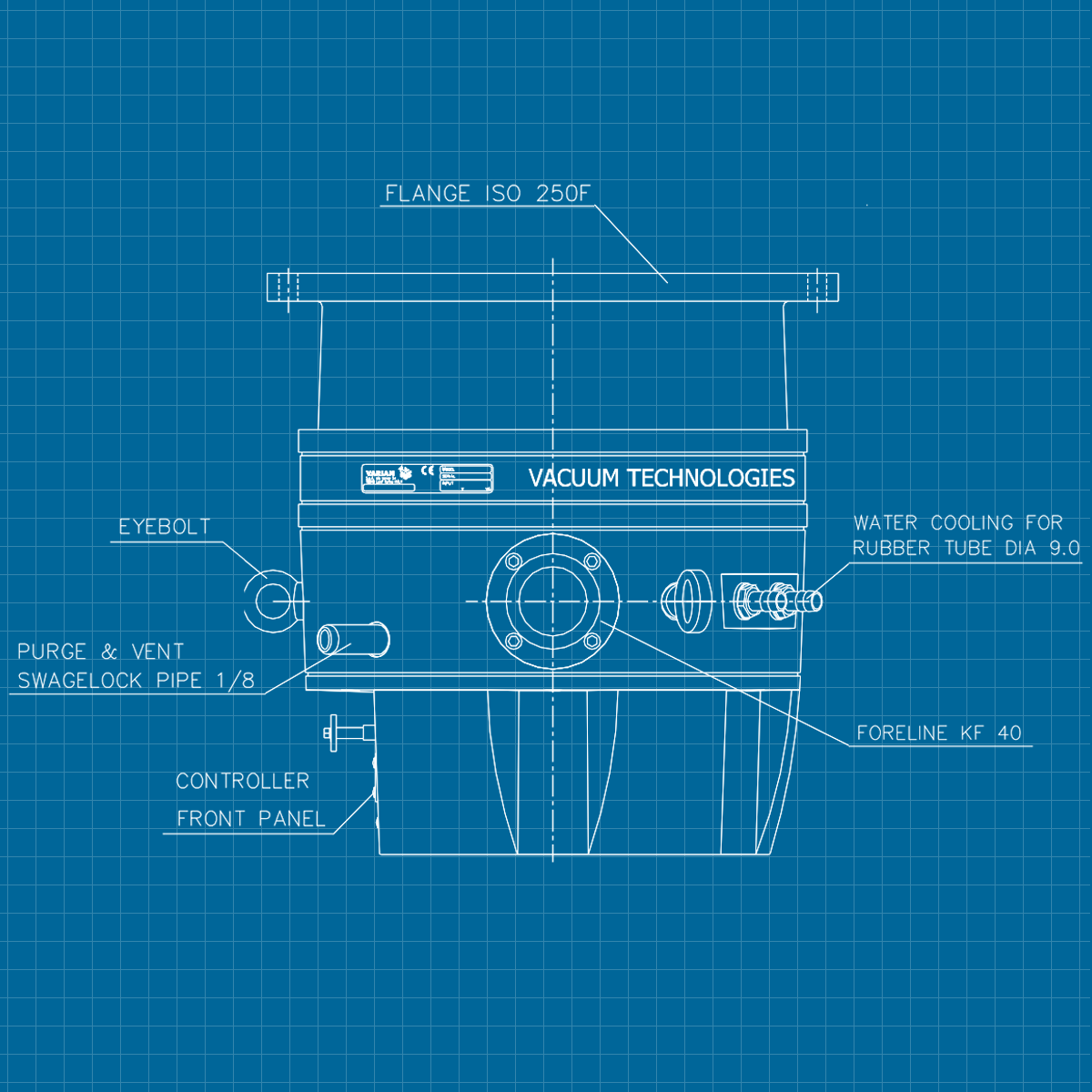

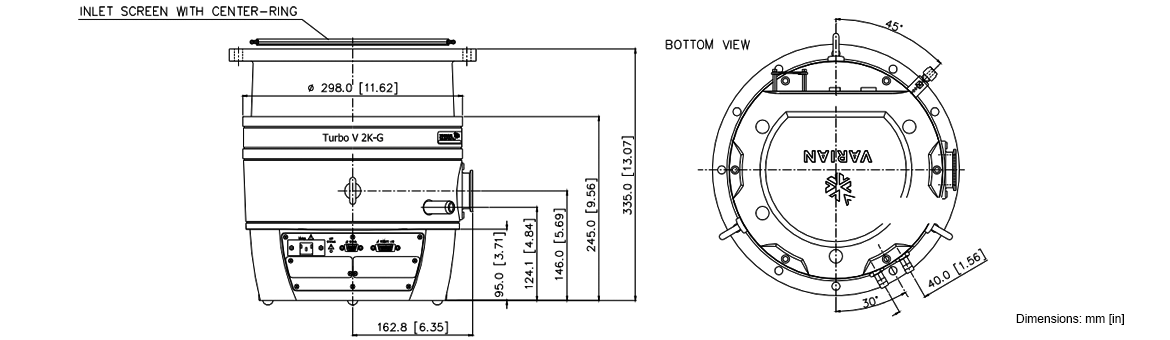

| Inlet flange | ISO-250F |
| Foreline flange | KF-40 NW |
| Nominal rotational speed | 33,000 rpm |
| Start up time | < 7 minutes |
| Recommended forepump | > 40 m3/h |
| Operating position | Any |
| Operating ambient temperature | 5°C to 40°C |
| Maximum flange temperature | no process: 80°C process: 50°C |
| Max rotor temperature | 120°C |
| Vibration level (displacement) | < 0.01 μm at inlet flange |
| Cooling requirements | Water |
| Coolant water | Minimum flow: 200 l/h (0.89 GPM) Temperature: +10°C to +35°C Pressure: 3 to 5 bar (45 to 75 psi) |
| Noise level | < 45 dB(A) at 1 meter |
| Power supply Input voltage Input freq. Max input power Stand-by power Max operating power |
208 – 240 VAC 50 – 60 Hz 850 VA 30 to 35 W 400 W for Nitrogen and lighter gases 390 W for Argon |
| Protection fuse | 2 x 8 A |
| Compliance with | EN 55011 (Radio disturbance characteristics) EN 61000-3-2 (Limits for harmonic current emissions) EN 61000-3-3 (Limitation of voltage changes, voltage fluctuations and flicker) EN 61000-6-2 and EN 61326 (Immunity for industrial environments) which recall: EN 61000-4-2 (Electrostatic discharge phenomena) EN 61000-4-3 (Radiated high-frequency phenomena) EN 61000-4-4, EN 61000-4-5, EN61000-4-6 (Conducted high-frequency phenomena) EN 61000-4-11 (Voltage fluctuation, voltage dips and short interruptions) |
| Installation Category | II |
| Pollution Degree | 2 |
| Max altitude | 2,000 m MSL |
| Power cable | w/ European or NEMA plug 3 meters long (optional) |
| Serial communication kit | RS232 cable w/ a 9-pin D type male connector and a 9- pin D type female connector, and Navigator software (optional) |
| Storage temperature | -20°C to 70°C |
| Environment protection | IP54 |
| Weight | 35 kg (77.16 lbs) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent Turbo-V 2K-G - NEW | User Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Turbo-V 2K-G Turbomolecular Vacuum Pump - NEW 9698871 / 969-8871 ISO-250F Monitorr 9698873 / 969-8873 ISO-250F Monitorr & ProfiBus
