Agilent Turbo-V 3K-G - NEW
| Weight | 114.64 lbs |
|---|---|
| Pumping Speed | 2,200 l/s |
| Ultimate Pressure | < 1 x 10-8 mbar |

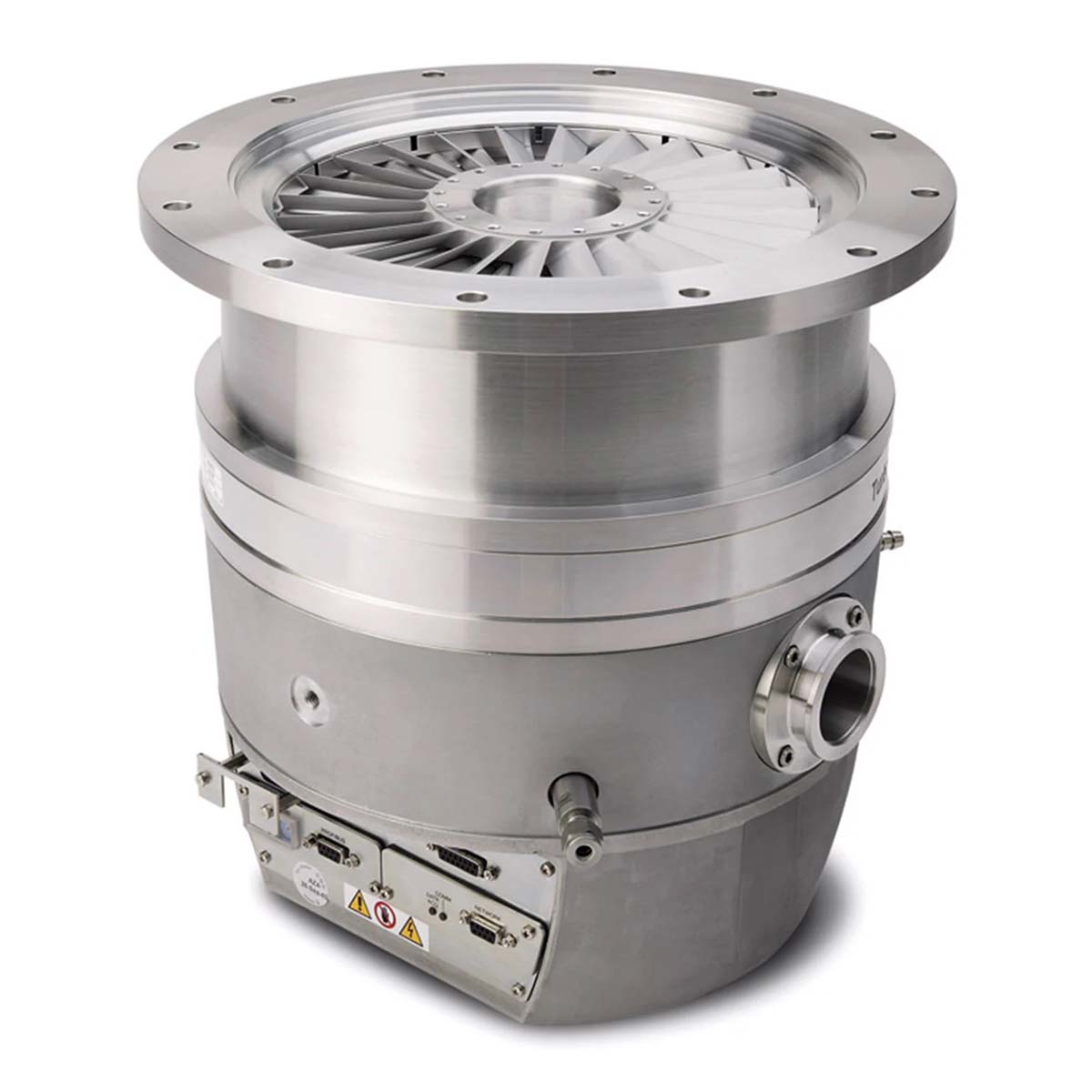

Agilent Turbo-V 3K-G Navigator Turbomolecular Vacuum Pump - NEW
The Turbo-V 3K-G turbomolecular pump (like Turbo-V 2K-G) is more than a pump. It is a dedicated pumping system, designed specifically for the plasma process industry. Its pumping stages, and the entire pump structure, are optimized to work with very high flows of argon gas and very high temperatures. Additionally,it features built-in control electronics, an integrated vent and purge valve,and maintenance-free bearings. All of these assets make the Agilent Turbo-V 3K-G turbomolecular pump the optimum pumping solution for the coating industry.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed (w/out inlet screen) | |
| N2 | 2,200 l/s |
| Ar | 2,050 l/s |
| He | 1,900 l/s |
| Compression ratio | |
| N2 | > 107 |
| Ar | > 108 |
| He | 6 x 103 |
| Base pressure w/ recommended forepump | 10-8 mbar (10-8 Torr) (According to standard DIN 28 428, the base pressure is that measured in a leak-free test dome, 48 hours after the completion of test dome bake-out, with a turbopump fitted with a CFF flange and using the recommended pre-vacuum pump) |
| Inlet flange | ISO-250F |
| Foreline flange | KF-40 NW |
| Nominal rotational speed | 31,800 rpm |
| Start up time | < 6 minutes |
| Recommended forepump | At least 60 m3/h (but depending on the inlet gas flow) |
| Operating position | Any |
| Operating ambient temperature | 5°C to 35°C |
| Max rotor temperature | 120°C |
| Lubricant | Permanent lubrication |
| Cooling requirements | Water |
| Coolant water | Minimum flow: 200 l/h (0.89 GPM) Temperature: +10°C to +35°C Pressure: 3 to 5 bar (45 to 75 psi) |
| Noise level | < 60 dB(A) at 1 meter |
| Power supply Input voltage Input freq. Max input power Stand-by power Max operating power |
208 – 240 VAC 50 – 60 Hz 950 VA 30 to 35 W 515 W for Nitrogen and lighter gases 430 W for Argon w/ purge on 390 W for Argon w/ purge on |
| Protection fuse | 2 x 12.5 A |
| Compliance with | EN 55011 (Radio disturbance characteristics) EN 61000-3-2 (Limits for harmonic current emissions) EN 61000-3-3 (Limitation of voltage changes, voltage fluctuations and flicker) EN 61000-6-2 and EN 61326 (Immunity for industrial environments) which recall: EN 61000-4-2 (Electrostatic discharge phenomena) EN 61000-4-3 (Radiated high-frequency phenomena) EN 61000-4-4, EN 61000-4-5, EN61000-4-6 (Conducted high-frequency phenomena) EN 61000-4-11 (Voltage fluctuation, voltage dips and short interruptions) |
| Installation Category | II |
| Pollution Degree | 2 |
| Power cable | w/ European or NEMA plug 3 meters long (optional) |
| Serial communication kit | RS232 cable w/ a 9-pin D type male connector and a 9-pin D type female connector, and T-Plus software (optional) |
| Storage temperature | -20°C to 70°C |
| Environment protection | IP54 |
| Weight | 52 kg (114.64 lbs) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent Turbo-V 3K-G - NEW | User Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Turbo-V 3K-G Navigator Turbomolecular Vacuum Pump - NEW 9698888 / 969-8888 ISO-250F system w/ integrated purge/vent device 9698889 / 969-8889 ISO-250F system w/ Profibus & integrated purge/vent device
