Varian Turbo-V 1800 ISO-250 - REBUILT
Call for Price
In stock
SKU
RB_TurboV1800-9699061
| Weight | 137 lbs |
|---|---|
| Pumping Speed | 1,600 l/s |
| Ultimate Pressure | < 1 x 10-10 mbar |
Agilent Varian Turbo-V 1800 Turbomolecular Vacuum Pump - REBUILT

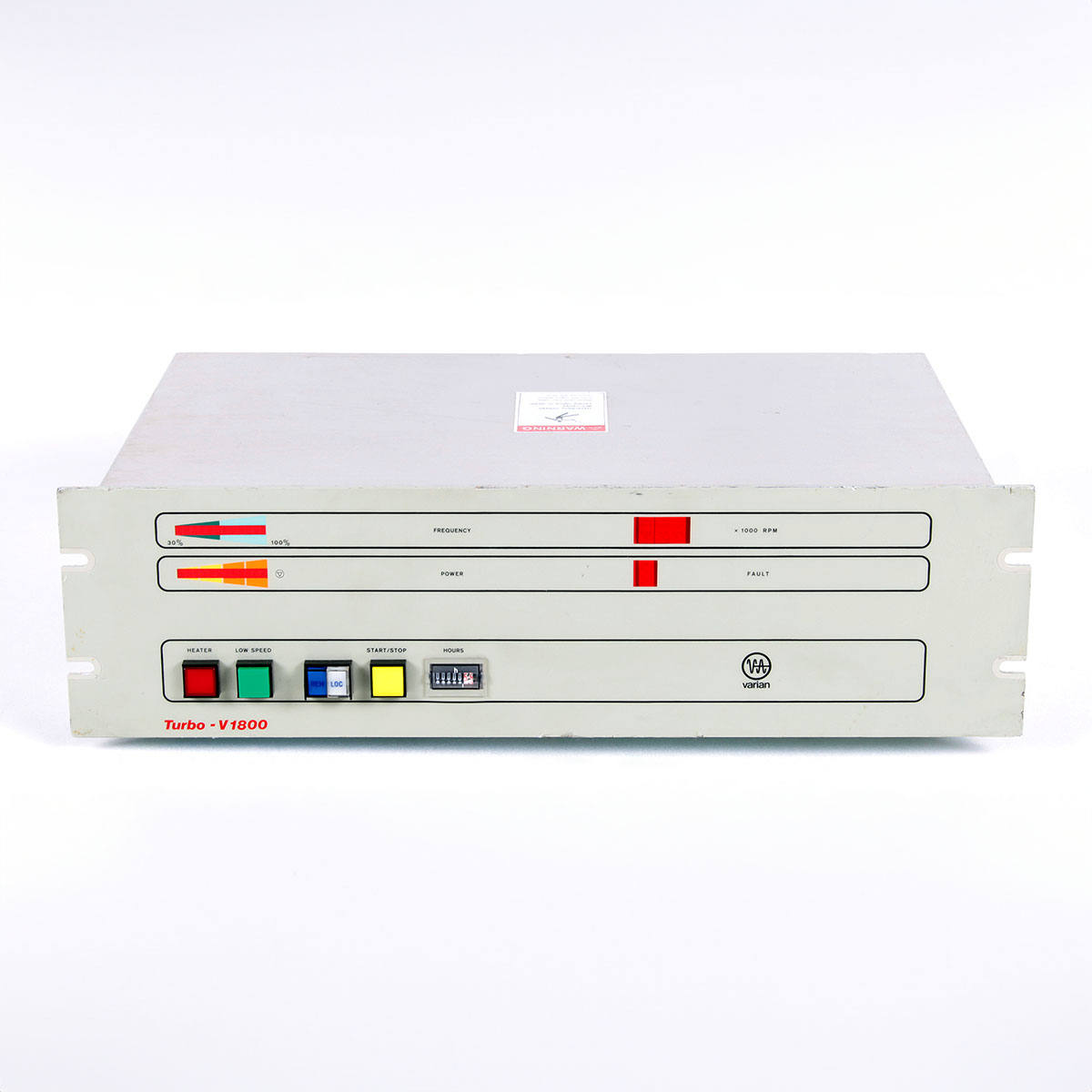

Each turbo pump must match its controller in reference to the same class. For example the TV 550 pump must match a V550 (stand alone, brick or PCB) controller. We also offer repair service.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed | N2: 1,600 l/s He: 1,850 l/s H2: 1,750 l/s |
| Compression ratio | N2: >1 x 1010 He: 2.5 x 105 H2: 6 x 103 |
| Base pressure* | 1 x 10-10 mbar (7.5 x 10-11 Torr) |
| Inlet flange | ISO 250 CFF 12" CFF 12.5” |
| Foreline flange | ISO 63 |
| Vent port flange | KF 10 NW |
| Purge port flange | KF 10 NW |
| Rotational speed | 27,000 rpm |
| Start-up time | 10 minutes |
| Recommended forepump | Varian SD 700 |
| Operating position | Vertical/inverted (max slope 10°) |
| Operating ambient temperature | +5°C to +35°C |
| Coolant water | Flow: 70 l/h (0.3 GPM) Temperature: +10°C to +30°C Pressure: 2 to 4 bar (30 to 60 Psi) |
| Bakeout temperature | 120°C at inlet flange maximum |
| Vibration level (displacement) | < 0.02 μm at inlet flange |
| Noise level | ≤ 52 dB (A) at 1 meter |
| Input | 90 VAC, three phase, 450 Hz |
| Lubricant | Permanent lubrication |
| Storage temperature | -20°C to +70°C |
| Weight kg (lbs) | 62 (137) |
Specifications
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 1800 Turbomolecular Vacuum Pump - REBUILT 9699060 / 969-9060 TV 1800 12" O.D. CF 9699061 / 969-9061 TV 1800 ISO-250 9699062 / 969-9062 TV 1800 12.5" O.D. CF 9699064 / 969-9064 TV 1800A ISO-250 9699065 / 969-9065 TV 1800A 12" O.D. CF 9699066 / 969-9066 TV 1800A 12.5" O.D. CF
