Varian Turbo-V 200 Controller - REBUILT
Call for Price

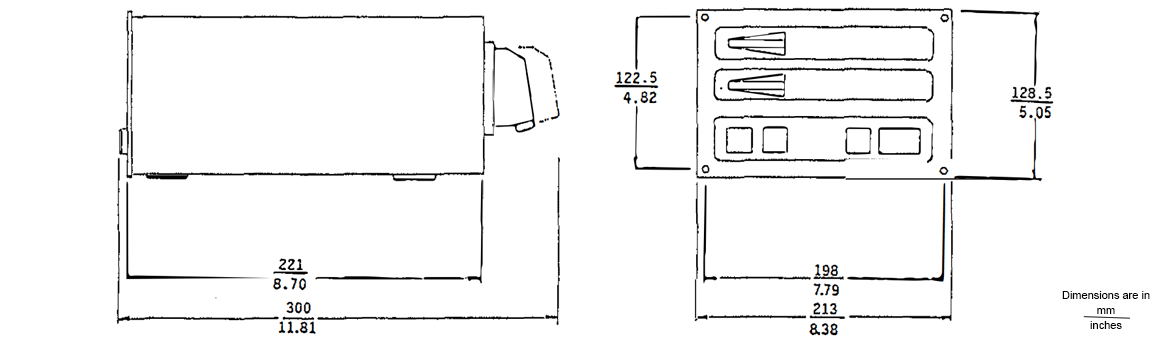

| Height | 128.50 mm |
|---|---|
| Width | 213 mm |
| Length | 221 mm |
| Weight | 14 lbs |
Agilent Varian Turbo-V 200 Turbomolecular Vacuum Pump Controller
The Turbo-V controllers are frequency converters with self diagnostic and protection features. The half rack unit has a multifunction alphanumeric display for pump status and error code diagnostics. It displays rotational speed as the pump starts up and indicates when full speed is reached. At any time during the operation of the pump, the speed, current, power, and bearing temperature can be displayed. Its microprocessor acts as a pump cycle log, and can display the number of vacuum cycles, the cycle time for the current cycle, and the total operating hours on the pump.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Input voltage | 100, 120, 220, 240 VAC ±10%, 1-phase |
| Frequency | 47 to 63 Hz |
| Power | 850 VA maximum |
| Output voltage | 54 VAC ±3% 3-phase |
| Frequency | 850 Hz ±2% |
| Power | 700 W maximum |
| Operating temperature | 0°C to +40°C |
| Storage temperature | -20°C to +70°C |
| Fuse | |
| F1 (mains) | T8A (slow blow) for 100-120 VAC T5A (slow blow) for 220-240 VAC |
| F2 (heater) | T5A (slow blow) disregarding the mains |
| F3 (pump) | T16A (slow blow) |
| Optoisolator input (remote start, remote low speed) | Minimum ON 4 VDC, 1.6 mA Maximum 16 VDC, 9 mA reverse voltage 3 VDC insulation voltage 150 V |
| Optoisolator output (normal speed) | Optomos device contact able to carry 60 mA at 36 VAC or48 VDC |
| Auxiliary output connectors | power socket logic socket |
| Interconnecting cables | Mains cable (3-wire, 3-meter long) Pump cable (5-wire, 5-meter long) |
| Weight | 6.1 kg (13.5 lbs) |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian Turbo-V 200 Controller - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 200 Turbomolecular Vacuum Pump Controller 9699422 / 969-9422 9699522 / 969-9522
