Varian Turbo-V 250 - REBUILT
Starting at
$4,600
In stock
Only %1 left
SKU
REBUILT_TurboV250
| Weight | 12 lbs |
|---|---|
| Pumping Speed | 250 l/s |
| Ultimate Pressure | <1 x 10-10 mbar |

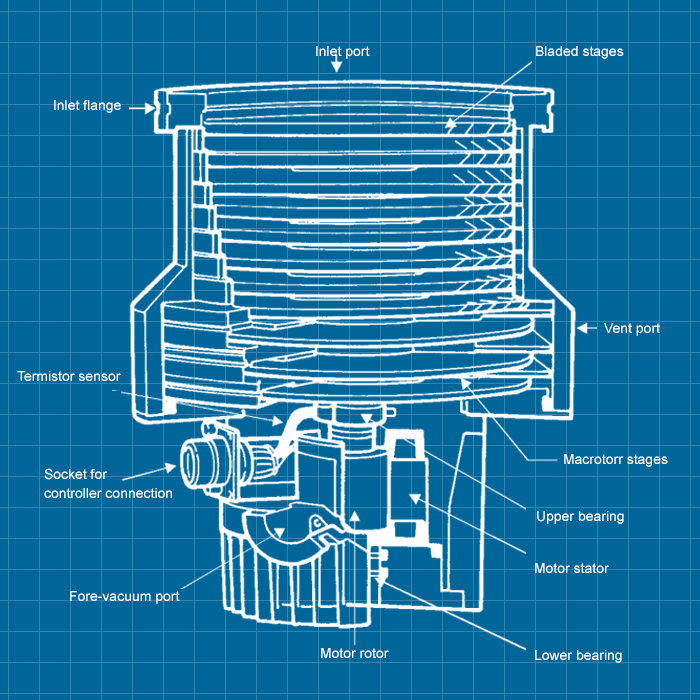

Agilent Varian Turbo-V 250 Turbomolecular Vacuum Pump - REBUILT

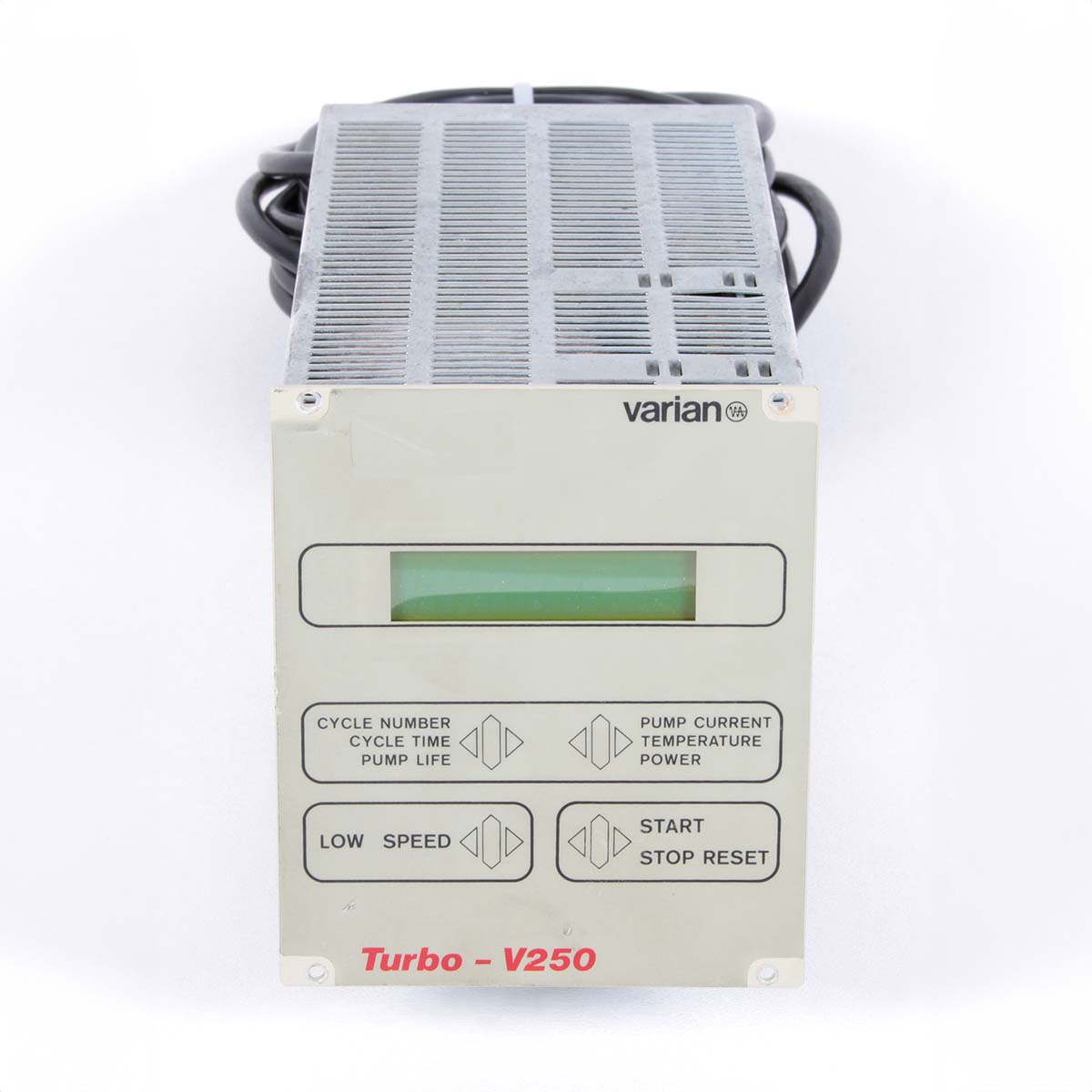

Each turbo pump must match its controller in reference to the same class. For example the TV 550 pump must match a V550 (stand alone, brick or PCB) controller. We also offer repair service.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed l/s | N2: 250, He: 220, H2: 200 |
| Compression ratio | N2: 2 x 108, He: 1 x 105, H2: 1 x 104 |
| Base pressure | with recommended mechanical forepump: 2 x 10-10 mbar (1.5 x 10-10 Torr) with recommended diaphragm forepump: 2 x 10-9 mbar (7.5 x 10-10 Torr) |
| Inlet flange | DN 100 ISO DN 100 CFF (6 in. OD) |
| Foreline flange | NW16 KF |
| Rotational speed | 56,000 rpm |
| Startup time | < 3 min |
| Recommended forepump | Two-stage rotary pump: SD 40 Diaphragm pump: MDP 30 |
| Operating position | Any |
| Cooling requirements | Natural air convection (with low gas load) Forced air or water optional |
| Bakeout temperature | 120°C at inlet flange (CFF version) |
| Vibration level (displacement) | < 0.01 μm at inlet flange |
| Weight lbs. (kg) | ISO: 7.5 (3.4); CFF: 11.4 (5.2) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian Turbo-V 250 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 250 Turbomolecular Vacuum Pump - REBUILT 9699007 / 969-9007 ISO-100 9699008 / 969-9008 6" CF TV 200 was replaced by the TV 250.
