Varian Turbo-V 2000HT - REBUILT
Call for Price
In stock
SKU
REBUILT_TurboV2000HT
| Weight | 138 lbs |
|---|---|
| Pumping Speed | 1950 l/s |
| Ultimate Pressure | 1 x 10-10 mbar |
Varian Turbo-V 2000HT Macro Torr Turbomolecular Vacuum Pump - REBUILT
Each turbo pump must match its controller in reference to the same class. For example the TV 550 pump must match a V550 (stand alone, brick or PCB) controller. We also offer repair service.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed (l/s) | N2: 1,950 l/s He: 2,000 l/s H2: 1,500 l/s |
| Compression ratio | N2: > 1 x 109 He: 2 x 106 H2: 2 x 105 |
| Base pressure* | w/ recommended mechanical fore-pump: 1 x 10-10 mbar (7.5 x 10-11 Torr) |
| Inlet flange | CFF 12" O.D. / ISO-250 |
| Foreline flange | KF 40 NW |
| Rotational speed | 33,000 RPM |
| Start-up time | 10 minutes |
| Recommended forepump | DS 602 / TriScroll 600 |
| Operating position | Any |
| Cooling requirements | Water |
| Operating ambient temperature | + 5°C to + 35°C |
| Coolant water | Minimum flow: 200 l/h (0.89 GPM) temperature: + 10°C to + 20°C pressure: 3 to 5 bar (45 to 75 psi) |
| Bakeout temperature | 120°C at inlet CF flange maximum 80°C w/ ISO flange |
| Max rotor temperature | 120°C |
| Vibration level (displacement) | < 0.01 μm at inlet flange |
| Noise level | 45 dB (A) at 1 meter |
| Input | 120 VAC, three-phase, 550 Hz |
| Lubricant | Permanent lubrication |
| Installation category | II |
| Pollution degree | 2 |
| Storage temperature | -20°C to +70°C |
| Weight kg (lbs) | ISO-250: 44 (96.8) 12" CFF: 55 (121) |
- According to standard DIN 28 428
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian Turbo-V 2000HT - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Varian Turbo-V 2000HT Macro Torr Turbomolecular Vacuum Pump - REBUILT 9699084 / 969-9084 12"" O.D. CF 9699085 / 969-9085 ISO-250
Related Products
-

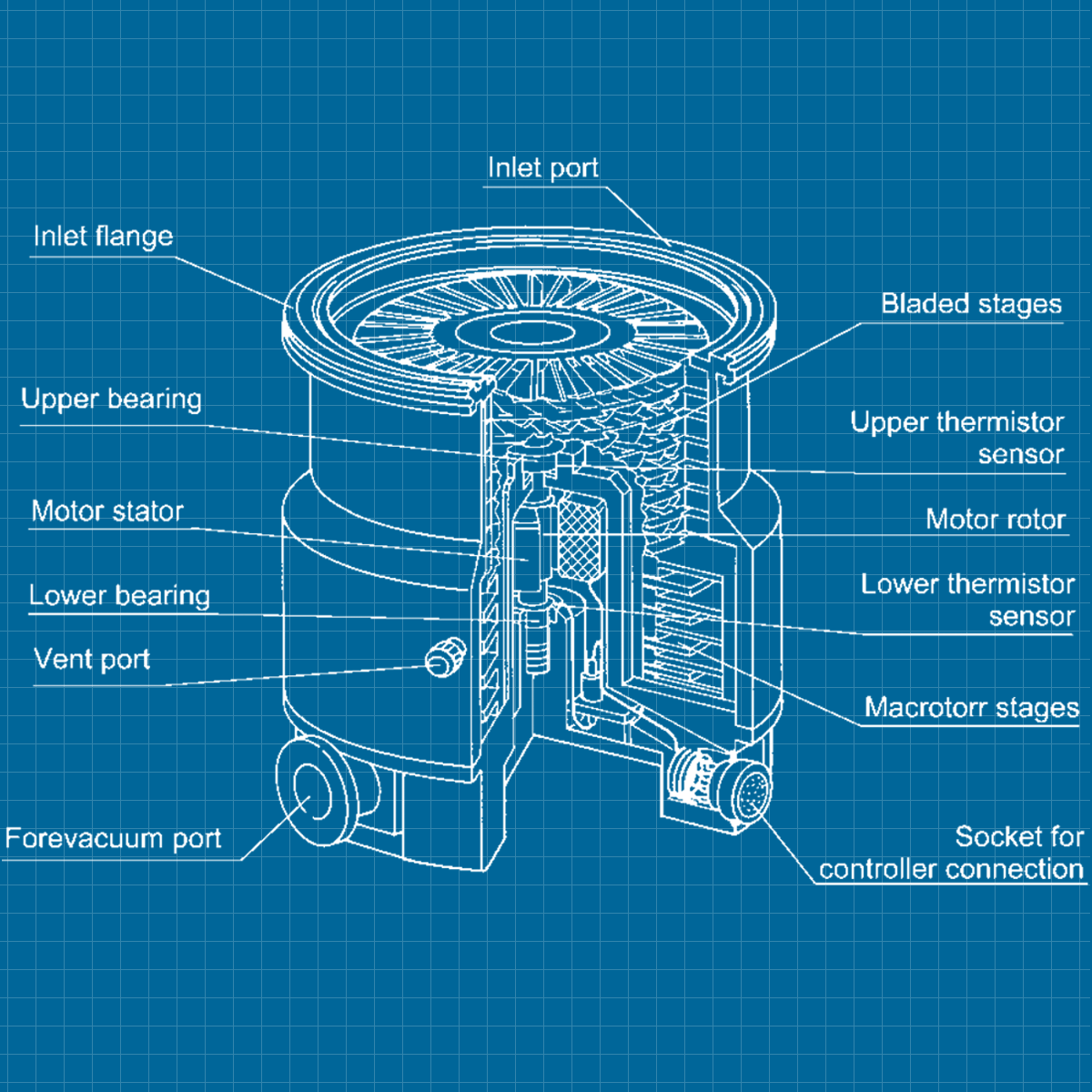

Varian V2000HT - SERVICECall for Price
