Agilent Varian Turbo-V 301 NAV C.U. - REBUILT
Height
4.5 mm
Width
4.5 mm
Length
10 mm
Weight
30 lbs
Agilent Varian Turbo-V 301 NAV C.U. Onboard Turbomolecular Vacuum Pump Controller
The Turbo-V 301 Navigator controllers are microprocessor-controlled frequency converters, fully controllable through PC software, with self-diagnostic and protection features that ensure the highest degree of reliability. They can be mounted on board, either on the bottom or on the side of the pump, offering outstanding flexibility and simplicity.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
Input voltages:
24 VDC
24 VDC ± 10%
120/220 VAC
100/120/220/240 Volt, 1 phase, 50/60 Hz
Maximum input power:
24 VDC
200 W
120/220 VAC
300 VA
Output voltage
75 VAC, 3 phase
Output frequency
963 Hz
Nominal power
150 W
Start-up power
150 W
Operating temperature
0 to +40°C
Storage temperature
20 to +70°C
Type
Label
Description
Download

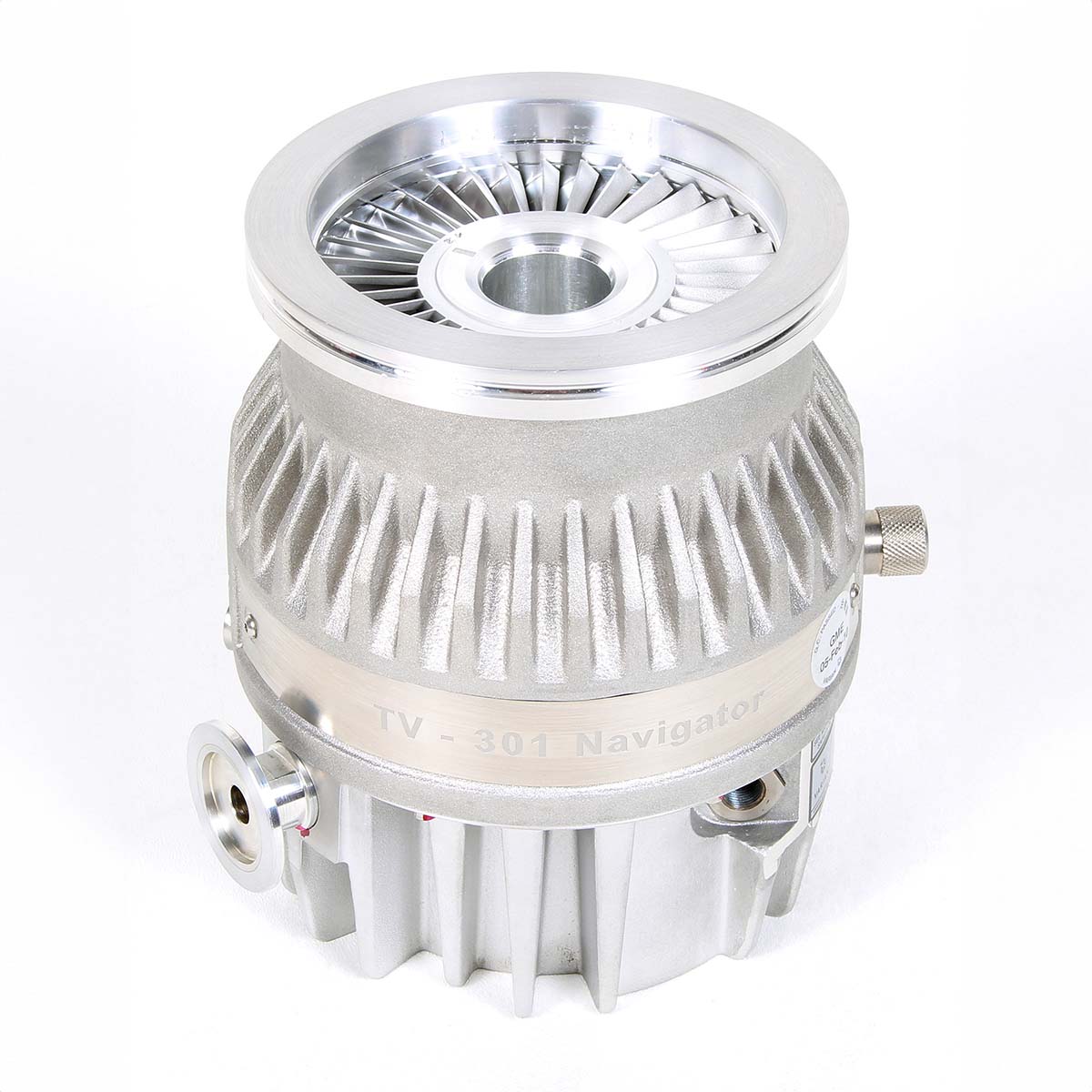

Varian TV 301 Navigator - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 301 NAV C.U. Onboard Turbomolecular Vacuum Pump Controller
9698972 / 969-8972 24 VDC
9698973 / 969-8973 120/220 VAC
EX9698973M003 / 9698973M003 120/220 VAC
EX9698973M002 / 9698973M002 120/220 VAC
EX9698973S007 / 9698973S007 120/220 VAC
EX9698973M010 / 9698973M010 120/220 VAC
EX9698973M014 / 9698973M014 120/220 VAC
EX9698973M017 / 9698973M017 120/220 VAC
9698979 / 969-8979 TV 401/301 NAV controller
9698979M005 / 969-8979M005 TV 401/301 NAV controller
9698991 / 969-8991 AG rack controller
9698992 / 969-8992 AG rack controller w/ RS-232/485
9698993 / 969-8993 AG rack controller w/ Profibus
