Agilent Varian Turbo-V 301 Navigator - REBUILT

Starting at $4,600
In stock
Only %1 left
SKU
REBUILT_TurboV301
Weight 18 lbs
Pumping Speed 250-280 l/s
Ultimate Pressure < 2 x 10-10 mbar

Agilent Varian Turbo-V 301 Navigator Turbomolecular Vacuum Pump - REBUILT

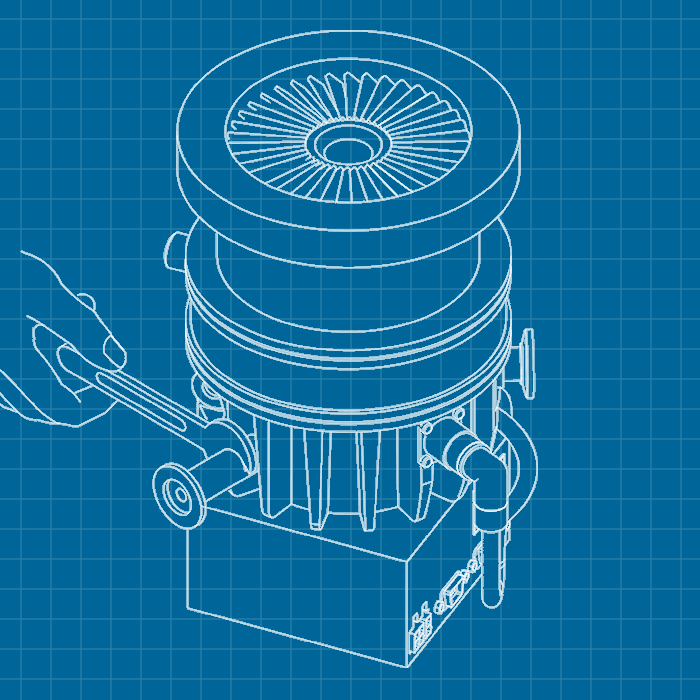

We sell and service the Varian TV 301 turbo pump. We are capable of rebuilding, balancing and testing this pump. View our inventory of Varian turbo pumps.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Pumping speed w/ CFF 8” or ISO 160:
N2: 280 l/s
He: 230 l/s
H2: 210 l/s
w/ CFF 6” or ISO 100:
N2: 250 l/s
He: 220 l/s
H2: 200 l/s
Compression ratio N2: > 2 x 108
He: 1 x 105
H2: 2 x 104
Base pressure * (with recommended forepump) Mechanical: < 2 x 10-10 mbar (< 1.5 x 10-10 Torr)
Diaphragm: 2 x 10-8 mbar (1.5 x 10-8 Torr)

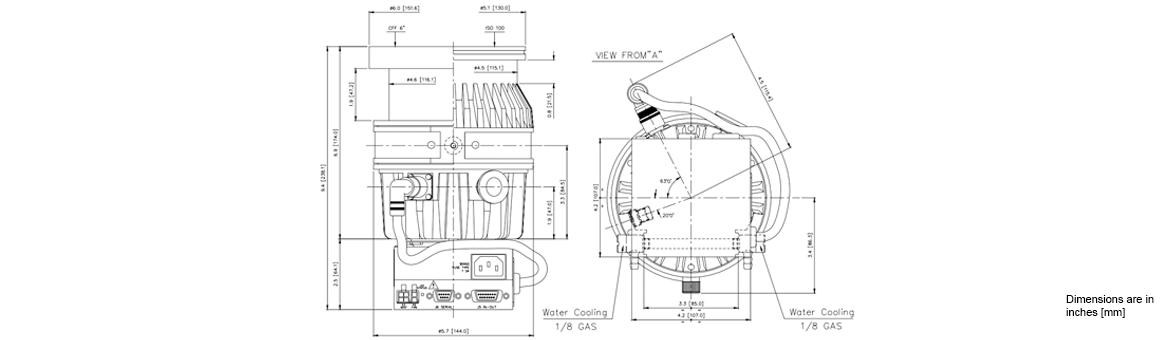

Inlet flange CFF 8" O.D. ISO 160
CFF 6” O.D. ISO 100
Foreline flange KF16 NW (KF25 – optional)
Rotational speed 56,000 RPM
Start-up time < 3 minutes
Recommended forepump Mechanical: Varian DS 102
Dry pump: Varian SH 100
Operating position Any
Cooling requirements Natural air convection
Forced air or water optional
Operating ambient temperature +5°C to +35°C
Coolant water Flow: 200 l/h (0.89 GPM)
Temperature: +10°C to +30°C
Pressure: 3 to 5 bar (45 to 75 Psi)
Bakeout temperature 120°C at inlet flange max. (CF flange)
80°C at inlet flange max. (ISO flange)
Vibration level (displacement) < 0.01 μm at inlet flange
Noise level ≤ 45 dB (A) at 1 meter
Power supply (mains)
Input voltage:
Input frequency:
Max input power:
Stand-by power:
Max oper. power:
100 - 240 VAC
50 - 60 Hz
300 VA
10 W
150 W w/ water or air cooling
Protection fuse 4 A
Power supply (24 VDC)
Input voltage:
Max input power:
Stand-by power:
Max oper. power:
24 VDC
200 W
10 W
150 W with water or air cooling
Protection fuse 8 A
Compliance with: UNI EN 292-1
UNI EN 292-2
EN-CENELEC 55011
IEC 1000-4-2 (ex 801-2)
IEC 1000-4-3 (ex 801-3)
IEC 1000-4-4 (ex 801-4)
EN 61010-1 (IEC 1010-1)
EN 1012-2
Power cable w/ European or NEMA plug 3 meters long (optional)
Serial communication (Navigator kit) RS232 cable with a 9-pin D type
male connector and a 9-pin D type
female connector, and Navigator software (optional)
Storage temperature -20°C to +70°C
Input 75 VAC, three phase, 963 Hz
Lubricant Permanent lubrication
Installation category II
Pollution degree 2
Storage temperature -20°C to +70°C
Weight kg (lbs):
Kit:
Controller:
ISO 100 and 160: 4.5 (10)
CFF 6” and 8”: 8 (17.6)
1 (2.2)

Specifications

Type Label Description Download
Varian TV 301 Navigator - REBUILT Instruction Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian Turbo-V 301 Navigator Turbomolecular Vacuum Pump - REBUILT

9698824 / 969-8824  ISO-100 24 DC
9698825 / 969-8825  6” CF 24 DC
9698826 / 969-8826  ISO-160, 24 DC
9698827 / 969-8827  8” CF 24 DC
9698828 / 969-8828  ISO-100, 120/220 VAC
9698829 / 969-8829  6” CF 120/220 VAC
9698830 / 969-8830  ISO-160 120/220 VAC
9698831 / 969-8831  8” CF 120/220 VAC
G3850-80020  TV 301 SF
9698917 / 969-8917  TV 301 SF
9698917 / 9698917M005 TV 301 SF
9698918 / 969-8918  ISO-100
9698918M002 / 969-8918M002  ISO-100 SCIEX
9698919 / 969-8919  TV 301 6” CF
9698920 / 969-8920  TV 301 NAV
9698921 / 969-8921  TV 301 NAV  8” CF
