Agilent Varian Turbo-V 401/301 8698928R004 - REBUILT
Call for Price
In stock
SKU
RB_TurboV401/301-869828R004
| Weight | 55 lbs |
|---|---|
| Pumping Speed | 310-400 l/s |
| Ultimate Pressure | < 7 x 10-10 mbar |

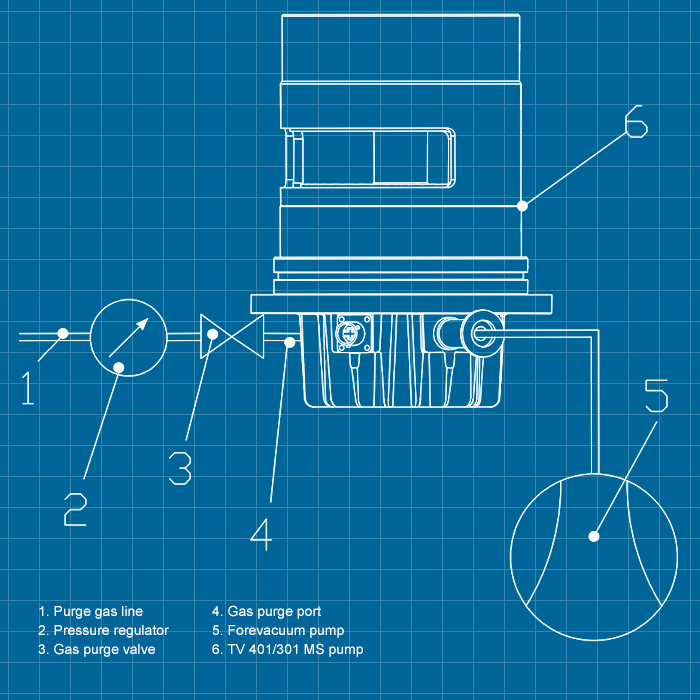

Agilent Varian Turbo-V 401/301 Turbomolecular Vacuum Pump - REBUILT
We sell and service the Varian TV 401/301 turbo pump. We are capable of rebuilding, balancing and testing this pump. View our inventory of Varian turbo pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| TV 401/301 | Main port | Side port |
|---|---|---|
| Pumping speed | N2: 310 l/s He: 300 l/s H2: 210 l/s |
N2: 400 l/s He: 380 l/s H2: 300 l/s |
| Compression ratio | N2: > 3 x 108 He: 1.4 x 105 H2: 6 x 104 |
N2: 1 x 106 He: 1.4 x 104 H2: 7 x 103 |
| Base pressure (w/ recommended forepump) | mechanical: < 7 x 10-10 mbar (< 5.25 x 10-10 Torr) diaphragm: 7 x 10-8 mbar (5.25 x 10-8 Torr) |
|
| Inlet flange | DN 100 | |
| Rotational speed | 60,000 RPM | |
| Start-up time | < 3 minutes | |
| Recommended forepump | mechanical: Varian DS 302 dry pump: Varian SH 100 |
|
| Operating position | Any | |
| Cooling requirements | Natural air convection Forced air or water optional |
|
| Operating ambient temperature | +5°C to +35°C | |
| Forced air option | Typical flow: 140 m3/h An internal supply is available (see para. "P4 – External fan") |
|
| Coolant water | flow: 200 l/h (0.89 GPM) temperature: +10°C to +30°C pressure: 3 to 5 bar (45 to 75 Psi) |
|
| Bakeout temperature | 80°C at inlet flange max. | |
| Noise level | ≤ 45 dB (A) at 1 meter | |
| Power supply (mains) Input voltage: Input frequency: Max input power: Stand-by power: Max oper. power: |
100 - 240 VAC 50 - 60 Hz 300 VA 10 W 150 W w/ water or air cooling |
|
| Protection fuse | 4 A | |
| Power supply (24 VDC) Input voltage: Max input power: Stand-by power: |
24 VDC 200 W 10 W |
|
| Protection fuse | 4 A | |
| Compliance with: | UNI EN 292-1 UNI EN 292-2 EN-CENELEC 55011 IEC 1000-4-2 (ex 801-2) IEC 1000-4-3 (ex 801-3) IEC 1000-4-4 (ex 801-4) EN 61010-1 (IEC 1010-1) EN 1012-2 |
|
| Power cable | w/ European or NEMA plug 3 meters long (optional) | |
| Serial communication (Navigator kit) | RS232 cable w/ a 9-pin D type male connector & a 9-pin D type female connector, & Navigator software (optional) |
|
| Storage temperature | -20°C to +70°C | |
| Lubricant | Permanent lubrication | |
| Installation category | II | |
| Pollution degree | 2 | |
| Storage temperature | -20°C to +70°C | |
| Weight kg (lbs): Pump: Controller: |
5.8 (12.76) 1 (2.2) |
|
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent TV 401/301 MS - REBUILT | User Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 401/301 Turbomolecular Vacuum Pump - REBUILT 8698928R004 / EX8698928R004 / Control Unit 9698979M005 / 969-8979M005 Agilent gas chromatography/mass spectrometry systems SCIEX mass spec tools.
