Agilent Varian Turbo-V 401/301 Navigator - REBUILT

Name: Agilent Varian Turbo-V 401/301 Navigator - REBUILT
Brand: Agilent Varian
SKU: REBUILT_TurboV401/301

Be the first to review this product

Call for Price

In stock

Only %1 left

SKU

REBUILT_TurboV401/301

Request For Quote

Weight	55 lbs
Pumping Speed	310-400 l/s
Ultimate Pressure	< 7 x 10^-10 mbar

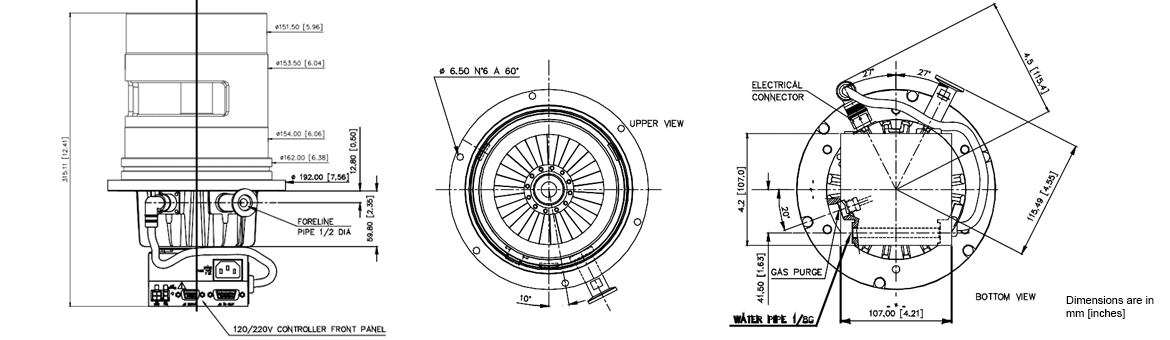

Dimensions

Description

Agilent Varian Turbo-V 401/301 Turbomolecular Vacuum Pump - REBUILT

We sell and service the Varian TV 401/301 turbo pump. We are capable of rebuilding, balancing and testing this pump. View our inventory of Varian turbo pumps.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

TV 401/301	Main port	Side port
Pumping speed	N₂: 310 l/s He: 300 l/s H₂: 210 l/s	N₂: 400 l/s He: 380 l/s H₂: 300 l/s
Compression ratio	N₂: > 3 x 10⁸ He: 1.4 x 10⁵ H₂: 6 x 10⁴	N₂: 1 x 10⁶ He: 1.4 x 10⁴ H₂: 7 x 10³
Base pressure (w/ recommended forepump)	mechanical: < 7 x 10^-10 mbar (< 5.25 x 10^-10 Torr) diaphragm: 7 x 10^-8 mbar (5.25 x 10^-8 Torr)
Inlet flange	DN 100
Rotational speed	60,000 RPM
Start-up time	< 3 minutes
Recommended forepump	mechanical: Varian DS 302 dry pump: Varian SH 100
Operating position	Any
Cooling requirements	Natural air convection Forced air or water optional
Operating ambient temperature	+5°C to +35°C
Forced air option	Typical flow: 140 m3/h An internal supply is available (see para. "P4 – External fan")
Coolant water	flow: 200 l/h (0.89 GPM) temperature: +10°C to +30°C pressure: 3 to 5 bar (45 to 75 Psi)
Bakeout temperature	80°C at inlet flange max.
Noise level	≤ 45 dB (A) at 1 meter
Power supply (mains) Input voltage: Input frequency: Max input power: Stand-by power: Max oper. power:	100 - 240 VAC 50 - 60 Hz 300 VA 10 W 150 W w/ water or air cooling
Protection fuse	4 A
Power supply (24 VDC) Input voltage: Max input power: Stand-by power:	24 VDC 200 W 10 W
Protection fuse	4 A
Compliance with:	UNI EN 292-1 UNI EN 292-2 EN-CENELEC 55011 IEC 1000-4-2 (ex 801-2) IEC 1000-4-3 (ex 801-3) IEC 1000-4-4 (ex 801-4) EN 61010-1 (IEC 1010-1) EN 1012-2
Power cable	w/ European or NEMA plug 3 meters long (optional)
Serial communication (Navigator kit)	RS232 cable w/ a 9-pin D type male connector & a 9-pin D type female connector, & Navigator software (optional)
Storage temperature	-20°C to +70°C
Lubricant	Permanent lubrication
Installation category	II
Pollution degree	2
Storage temperature	-20°C to +70°C
Weight kg (lbs): Pump: Controller:	5.8 (12.76) 1 (2.2)

Specifications

Digital Manuals

Type	Label	Description	Download
	Agilent TV 401/301 MS - REBUILT	User Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian Turbo-V 401/301 Turbomolecular Vacuum Pump - REBUILT

7698928 / EX7698928 / 769-8928  Turbo-V 401/301
8698928 / EX8698928 / 869-8928  TV 401/301
G3850-80020 V301 SplitFlow

Control Unit
9698979M005 / 969-8979M005
