Varian Turbo-V 70 Station - REBUILT
Call for Price
In stock
SKU
REBUILT_TV70Station
| Weight | 40 lbs |
|---|---|
| Pumping Speed | 45-68 l/s |
| Ultimate Pressure | 1 x 10-10 mbar |
Agilent Varian Turbo-V 70 Mini Pumping Vacuum Station - REBUILT
The Turbo Mini Pumping Station is a compact system mounted on a sturdy platform. It is designed for high utility, adaptability, and can be customized for both stationary and mobile applications. The integral console houses the Turbo-V controller and a wide choice of vacuum gauge controller options.
Digital Manual - Turbo-V 70D
Digital Manual - Turbo-V 70LP
Digital Manual - Turbo-V 150HT
Digital Manual - Turbo-V 250
Digital Manual - Turbo-V 300HT
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | Turbo-V 70 | |
|---|---|---|
| Pumping speed (l/s) | w/ CF 4.5" or ISO 63: N2: 68 l/s He: 60 l/s H2: 45 l/s |
w/ CF 2.75" or KF 40 NW: N2: 45 l/s He: 50 l/s H2: 41 l/s |
| Compression ratio | N2: 5 x 107 He: 4 x 103 H2: 4 x 102 |
|
| Base pressure* | 1 x 10-9 mbar (8 x 10-10 Torr) | |

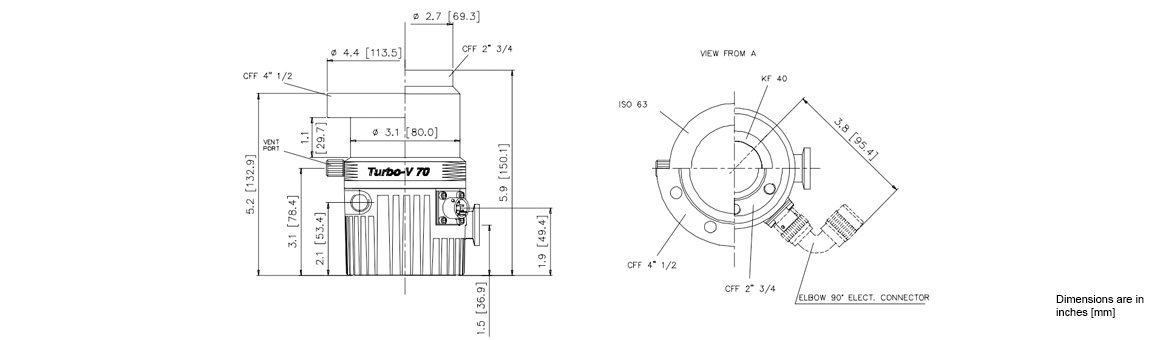

| Inlet flange | CF 4.5" O.D. ISO 63 CF 2.75" O.D. KF 40 NW |
|
| Foreline flange | KF 16 NW | |
| Rotational speed | 75,000 rpm | |
| Start-up time | < 60 seconds | |
| Recommended forepump | mechanical: Varian SD-40 diaphragm: Varian MD-6 2 m3/h (1.2 cfm) |
|
| Operating position | any | |
| Cooling requirements | Natural air convection Forced air or water optional |
|
| Operating ambient temperature | + 5°C to + 35°C | |
| Coolant water | flow: 10 l/h (0.05 GPM) temperature: + 10°C to + 30°C pressure: 2 to 4 bar (30 to 60 Psi) |
|
| Bakeout temperature | 120°C at inlet flange max. (CF flange) 80°C at inlet flange max. (ISO flange) |
|
| Vibration level (displacement) | < 0.01 μm at inlet flange | |
| Noise level | 45 dB (A) at 1 meter | |
| Input | 54 Vac, three phase, 1,250 Hz | |
| Lubricant | permanent lubrication | |
| Installation category | II | |
| Pollution degree | 2 | |
| Storage temperature | - 20°C to + 70°C | |
| Weight kg (lbs) | ISO: 1.6 (6) CFF: 2.3 (4) |
|
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian Turbo-V 70 - REBUILT | Instruction Manual | Download |
|
|
Varian Turbo-V 70LP - REBUILT | Instruction Manual | Download |
|
|
Varian Turbo-V 70D - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 70 Mini Pumping Vacuum Station - REBUILT 9499401 / 949-9401 MD-40 diaphragm vacuum pump serial # 22418303 MSP7359 / MSP-7359 Turbo-V 70 KF-40 MSP7357 / MSP-7357 Turbo-V 70 ISO-63 MSP7360 / MSP-7360 Turbo-V 70 2.75" CF MSP7358 / MSP-7358 Turbo-V 70 4.5" CF MSP7363 / MSP-7363 Turbo-V 70D KF-40 MSP7361 / MSP-7361 Turbo-V 70D ISO-63 MSP7364 / MSP-7364 Turbo-V 70D 2.75" CF MSP7362 / MSP-7362 Turbo-V 70D 4.5" CF MSP5367 / MSP-5367 Turbo-V 70LP KF-40 MSP5365 / MSP-5365 Turbo-V 70LP ISO-63 MSP5368 / MSP-5368 Turbo-V 70LP 2.75" CF MSP5366 / MSP-5366 Turbo-V 70LP 4.5" CF MSP5370 / MSP-5370 Turbo-V 150HT ISO-63 MSP5369 / MSP-5369 Turbo-V 150HT ISO-100 MSP5372 / MSP-5372 Turbo-V 150HT 4.5" CF MSP5371 / MSP-5371 Turbo-V 150HT 6" CF MSP2501 / MSP-2501 Turbo-V 250 ISO-100 MSP2500 / MSP-2500 Turbo-V 250 6" CF MSP8037 / MSP-8037 Turbo-V 300HT ISO-100 MSP8039 / MSP-8039 Turbo-V 300HT ISO-160 MSP8038 / MSP-8038 Turbo-V 300HT 6" CF MSP8040 / MSP-8040 Turbo-V 300HT 8" CF MSP0097 / MSP-0097 SD-40 MSP0098 / MSP-0098 SD-91 MSP0205 / MSP-0205 SD-201 MSP9982 / MSP-9982 MDP-30 MSP0099 / MSP-0099 MD-40 MSP0100 / MSP-0100 MD-60
