Agilent TwisTorr 304 FS-AG Controller
Call for Price
In stock
SKU
REBUILT_TwisTorr304FSAG

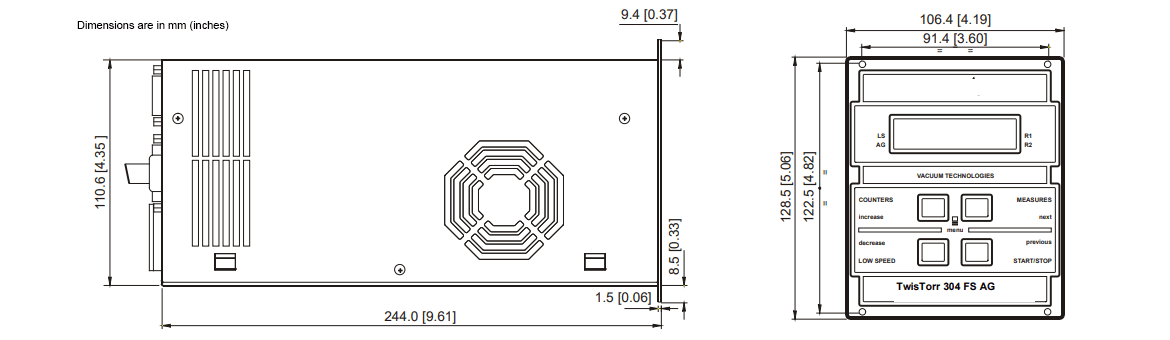

| Height | 128.50 mm |
|---|---|
| Width | 106.40 mm |
| Length | 244 mm |
| Weight | 5.5 lbs |
Agilent TwisTorr 304 FS-AG Turbomolecular Vacuum Pump Controller
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | Rack | Onboard |
|---|---|---|
| Input: Voltage Frequency Max power Stand-by power Max oper. power |
100, 240 Vac (voltage fluctuation +/- 10%) 50 to 60 Hz 450 VA - - |
100 - 240 Vac 50 to 60 Hz 300 VA 10 W 150 W w/ water or air cooling |
| Fuse | 2 x T4 A (slow blow) 250 V | 4 A 8 A (24 Vdc) |
| Output: Voltage Frequency Power |
75 Vac 1,010 Hz 150 W |
60 Vac 1,350 Hz 55 W |
| Storage temperature | -20°C to + 70°C 0 - 95% |
|
| Operating temperature | +5°C to + 45°C 0 - 90% |
|
| Compliance with | Safety: EN 61010 - 1 (2001) Radio Interference: EN 55011 (Class-A) Harmonics: EN 61000-3-2 Flicker: EN 61000-3-3, EN 61000-6-2 (2005) ESD: EN 61000-4-2 Radiated RF Immunity: EN 61000-4-3 Burst: EN 61000-4-4 Surge: EN 61000-4-5 Conducted RF Immunity: EN 61000-4-6 Radiated Magnetic Field: EN 61000-4-8 DIPS: EN 61000-4-11 |
UNI EN 292-1 UNI EN 292-2 EN-CENELEC 55011 IEC 1000-4-2 (ex 801-2) IEC 1000-4-3 (ex 801-3) IEC 1000-4-4 (ex 801-4) EN 61010-1 (IEC 1010-1) EN 1012-2 |
| Power cable | w/ European or NEMA plug 3 meters long (optional) | |
| Serial communication | RS232 cable with a 9-pin D type male connector and a 9-pin D type female connector, and TwisTorr software (optional) | |
| Weight | 1.7 Kg (3.2 lbs) | 1 Kg (2.2 lbs) |
| Internal use only | ||
| Max altitude | 2,000 m | |
| Pollution degree | 2 | |
| Installation Category | II | |
| Acoustic noise (ISO7779) | LpA < 70 dB(A), normal operation, operator position | |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent TwisTorr 304 FS AG Rack Controller - REBUILT | User Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent TwisTorr 304 FS-AG Turbomolecular Vacuum Pump Controller X350664002 / X3506-64002 RS 232-485 X350664003 / X3506-64003 Profibus X350669002 / X3506-69002
Related Products
-
Agilent TwisTorr 304 FS - NEWCall for Price
-

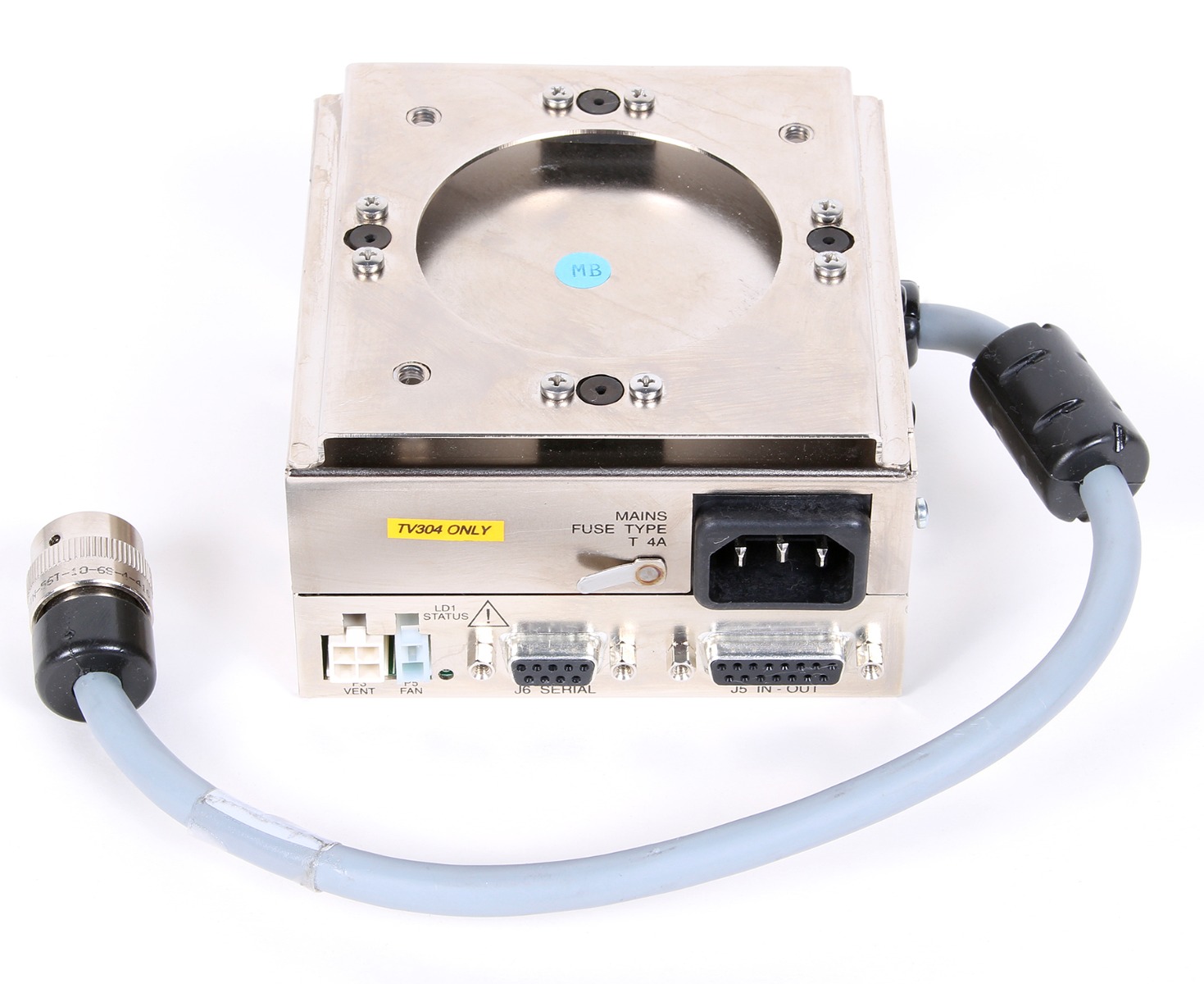

Agilent TwisTorr 304 NAV C.U.Call for Price
-
