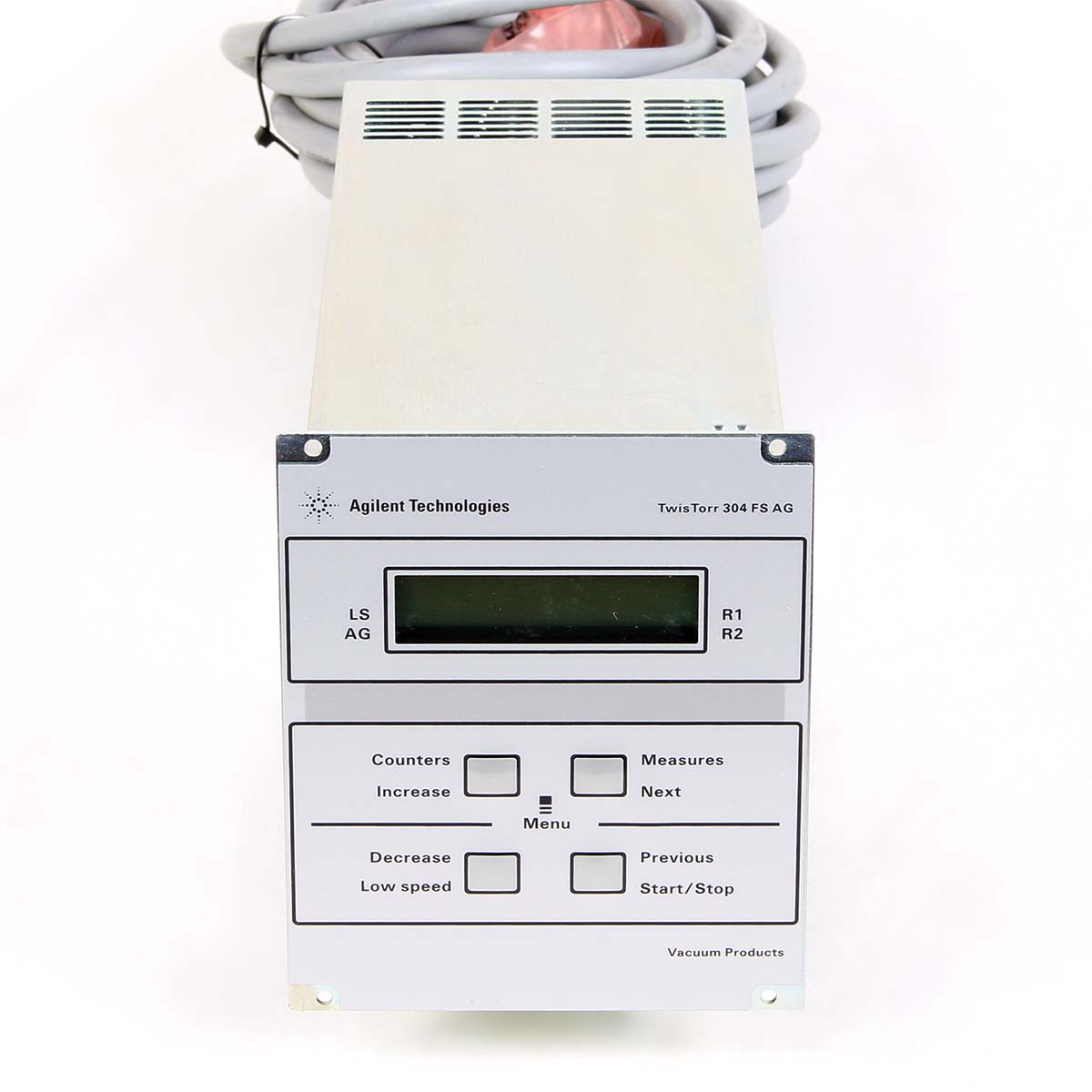

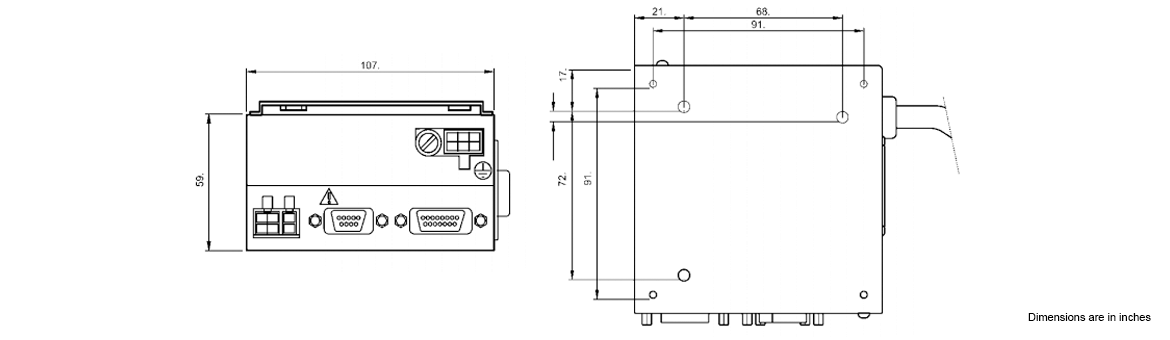

Agilent TwisTorr 304 NAV C.U. Onboard Turbomolecular Vacuum Pump Controller
The TwisTorr 304 FS onboard controllers are microprocessor controlled frequency converters. They are fully controllable through PC software, with self-diagnostic and protection features that ensure the highest degree of reliability. TwisTorr 304 FS onboard controllers can be mounted onboard the pump, either on the bottom or on the side, offering outstanding flexibility and simplicity.
Drives the TwisTorr 304 FS pumps and the vent valve
Powers the pump cooling fan
Provides and acquires the pressure of the wide range gauge
Remote I/Os
Navigator default serial compatible with the previous RS 232 and 485 version
Able to operate with active gauges (full range gauge FRG-700 and FRG-702)
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
Input: Voltage Frequency Max power Stand-by power Max oper. power
100, 240 Vac (voltage fluctuation +/- 10%) 50 to 60 Hz 450 VA - -
100 - 240 Vac 50 to 60 Hz 300 VA 10 W 150 W w/ water or air cooling
Fuse
2 x T4 A (slow blow) 250 V
4 A 8 A (24 Vdc)
Output: Voltage Frequency Power
75 Vac 1,010 Hz 150 W
60 Vac 1,350 Hz 55 W
Storage temperature
-20°C to + 70°C 0 - 95%
Operating temperature
+5°C to + 45°C 0 - 90%
Compliance with
Safety: EN 61010 - 1 (2001) Radio Interference: EN 55011 (Class-A) Harmonics: EN 61000-3-2 Flicker: EN 61000-3-3, EN 61000-6-2 (2005) ESD: EN 61000-4-2 Radiated RF Immunity: EN 61000-4-3 Burst: EN 61000-4-4 Surge: EN 61000-4-5 Conducted RF Immunity: EN 61000-4-6 Radiated Magnetic Field: EN 61000-4-8 DIPS: EN 61000-4-11
UNI EN 292-1 UNI EN 292-2 EN-CENELEC 55011 IEC 1000-4-2 (ex 801-2) IEC 1000-4-3 (ex 801-3) IEC 1000-4-4 (ex 801-4) EN 61010-1 (IEC 1010-1) EN 1012-2
Power cable
w/ European or NEMA plug 3 meters long (optional)
Serial communication
RS232 cable with a 9-pin D type male connector and a 9-pin D type female connector, and TwisTorr software (optional)
Weight
1.7 Kg (3.2 lbs)
1 Kg (2.2 lbs)
Internal use only
Max altitude
2,000 m
Pollution degree
2
Installation Category
II
Acoustic noise (ISO7779)
LpA < 70 dB(A), normal operation, operator position
