Agilent TwisTorr 804 FS - NEW
| Weight | 45.5 lbs |
|---|---|
| Pumping Speed | 720 l/s |
| Ultimate Pressure | < 1 x 10-10 mbar |
Agilent TwisTorr 804 FS Turbomolecular Vacuum Pump - NEW
The Agilent TwisTorr 804 FS turbomolecular high-vacuum pump combines TwisTorr drag stage technology and Agilent Floating Suspension to provide high performance, reliability, and economy.
TwisTorr drag stages create high compression ratios for light gases such as hydrogen and helium to deliver high throughput and high tolerance of foreline pressure, thereby permitting the use of smaller and more economical backing pumps. This technology results in a compact rotor design that is energy-efficient and maintains a low operating temperature.
The Agilent Floating Suspension system reduces noise and vibration, and ensures optimal bearing operating conditions to extend operating life, minimize system downtime, and assure stability over time.
The unique bearing and dry lubrication in the TwisTorr 804 FS eliminate oil and maintenance, and permit operation of the pump in any orientation. Available with onboard or rack controllers.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| TwisTorr 804 FS | ISO-200K-F | 10" CF / ISO-250K-F |
|---|---|---|
| Pumping speed | ||
| N2 | 720 l/s | |
| He | 660 l/s | |
| H2 | 485 l/s | |
| Ar | 690 l/s | |
| Max. gas throughput | Ambient temp. (25°C) | Water temperature. (25°C, 50 l/h) |
| He | 7.9 mbar l/s | 10.4 mbar l/s |
| N2 | 4.3 mbar l/s | 6.1 mbar l/s |
| Ar | 1.5 mbar l/s | 3.3 mbar l/s |
| Compression ratio and foreline tolerance | ||
| N2 | > 1E + 11 | 10 mbar |
| He | 2E + 08 | 10 mbar |
| H2 | 3E + 06 | > 4 mbar |
| Ar | > 1E + 11 | 8.5 mbar |
| Base pressure with recomm. forepump | < 1 x 10-10 mbar | |
| Inlet flange | ISO-160K, ISO-160F, 10” CF | |
| Foreline flange | NW-25 | |
| Rotational speed | Auto setting from 40,800 rpm to 49,500 rpm | |
| Start-up time | < 5 minutes |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent TwisTorr 804 FS - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent TwisTorr 804 FS Turbomolecular Vacuum Pump - NEW X351164023 / X3511-64023 DN 200 ISO-K KF-40 water cooling X351164025 / X3511-64025 DN 200 ISO-F KF-40 water cooling X351164027 / X3511-64027 DN 200 CF-F (10" CF) KF-40 water cooling X351164028 / X3511-64028 DN 250 ISO-K KF-40 water cooling X351164029 / X3511-64029 DN 250 ISO-F KF-40 water cooling X351164043 / X3511-64043 DN 250 ISO-F KF-40 water cooling X351164044 / X3511-64044 DN 200 CF-F (10" CF) KF-40 water cooling X351164007 / X3511-64007 DN 200 ISO-K KF-25 air cooling (Obsolete, replaced by X3511-64023) X351164008 / X3511-64008 DN 200 ISO-K KF-40 air cooling (Obsolete, replaced by X3511-64023) X351164009 / X3511-64009 DN 200 ISO-F KF-25 air cooling (Obsolete, replaced by X3511-64025) X351164010 / X3511-64010 DN 200 ISO-F KF-40 air cooling (Obsolete, replaced by X3511-64025) X351164011 / X3511-64011 DN 200 CF-F (10" CF) KF-25 air cooling (Obsolete, replaced by X3511-64027) X351164012 / X3511-64012 DN 200 CF-F (10" CF) KF-40 air cooling (Obsolete, replaced by X3511-64027) X351164013 / X3511-64013 DN 250 ISO-K KF-40 air cooling (Obsolete, replaced by X3511-64028) X351164014 / X3511-64014 DN 250 ISO-F KF-40 air cooling (Obsolete, replaced by X3511-64029) X351164022 / X3511-64022 DN 200 ISO-K KF-25 water cooling (Obsolete, replaced by X3511-64023) X351164024 / X3511-64024 DN 200 ISO-F KF-25 water cooling (Obsolete, replaced by X3511-64025) X351164026 / X3511-64026 DN 200 CF-F (10" CF) KF-25 water cooling (Obsolete, replaced by X3511-64027)
-
Agilent TwisTorr 704 FS - NEWStarting at $20,631 -
Agilent TwisTorr 304 FS - REBUILTStarting at $5,495 -

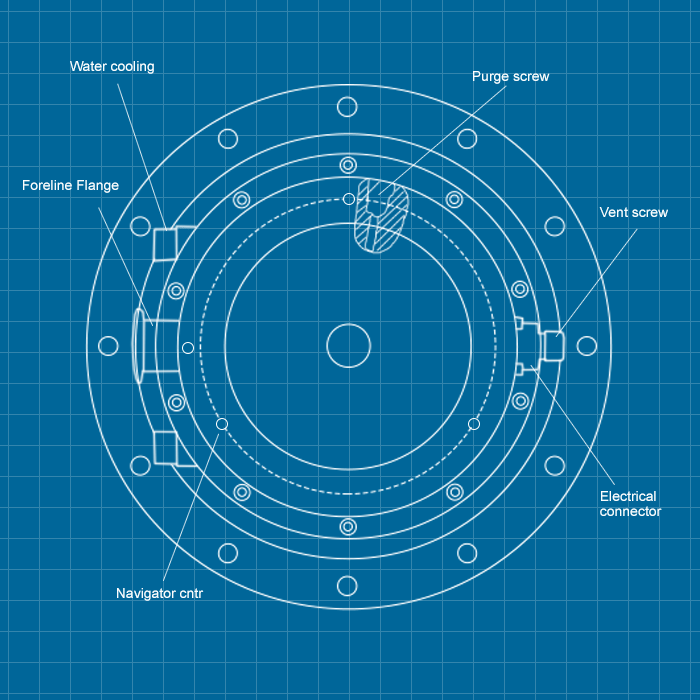

Agilent 804 FS - SERVICECall for Price
