Agilent TwisTorr 84 FS-AG Controller - NEW

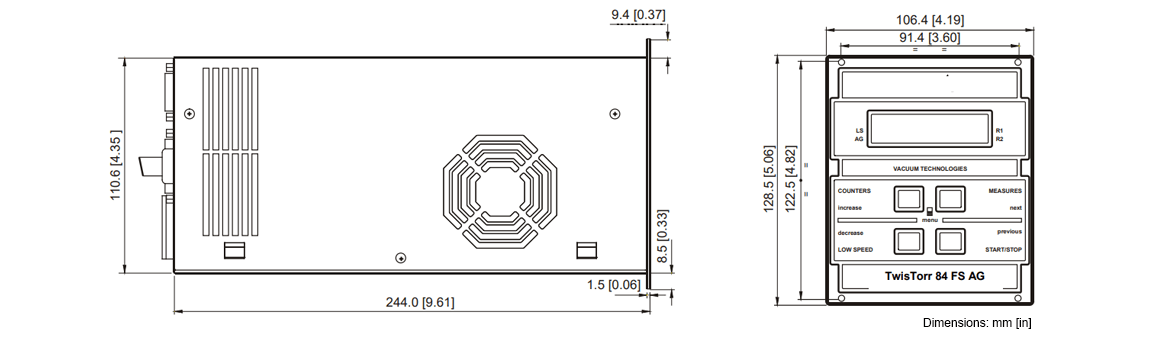

| Height | 128.5 mm |
|---|---|
| Width | 106.5 mm |
| Length | 244 mm |
| Weight | 3.2 lbs |
Agilent TwisTorr 84 FS-AG Turbomolecular Vacuum Pump Controller - NEW
The TwisTorr 84 FS-AG rack controller is a microprocessor controlled frequency converter with, enhanced features that allow greater control and communication capabilities. This compact, ¼ rack unit is designed for full worldwide compatibility, vent valve control, active gauge pressure reading, and pump operation parameters control. As well as including self-diagnostic and protection features.
- Universal voltage – the controller is able to auto set according to the input voltage, providing flexibility for easy installation worldwide
- RS-232/485 communication protocols and Profibus (options)
- Allows the pump to interact the system controls
- Enables the pump to be operated via PC with T-plus software
- Helps development of own customer software
- Stop Speed Reading (SSR)
- Continues pump speed reading after the stop command
- Allows observation of the pump in slow down ramp and shut down time
- N.O. and N.C. Vent Valve Drive
- Valve delay and opening time adjustable
- Vent valve driven by controller automatically or by serial line
- Opening time control through SSR function
The TwisTorr 84 FS onboard controller is a solid-state frequency converter, which is driven by a single chip microcomputer. It consists of two PCBs, which include power supply and three-phase output, analog and input/output section, microprocessor, and digital section. The power supply, together with the three-phase output, converts the single phase AC mains supply or 24 VDC supply into a three-phase, low voltage, medium frequency output, which is required to power the pump. A remote host computer can operate the controller via the serial connection. Windows-based software is available (optional). The TwisTorr 84 FS onboard controller can be mounted onboard, on the bottom of the TwisTorr 84 FS pumps.
- Drives the TwisTorr 84 FS pumps and the vent valve
- Powers the pump cooling fan
- Provides and acquires the pressure of the wide range gauge
- Remote I/Os
- Navigator default serial compatible with the previous RS 232 and 485 version
- Able to operate with active gauges (full range gauge FRG-700 and FRG-702)
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | Rack | Onboard X3509-64001 |
Onboard X3509-64000 |
|---|---|---|---|
| Input: Voltage Frequency Power |
100, 240 Vac 50 to 60 Hz 450 VA |
24 Vdc ±10 % 50 to 60 Hz 80 W |
100 to 240 Vac ±10 % 50 to 60 Hz ±5 % 130 VA |
| Fuse | 2 x T4 A (slow blow) 250 V | 2 x T2 A (slow blow) 250 V | |
| Output: Voltage Frequency Power |
75 Vac 1,350 Hz 100 W (Ramp), 70 W (Normal and Autotuning) |
60 Vac 1,350 Hz 55 W |
60 Vac 1,350 Hz 70 W |
| Storage temperature | -20°C to + 70°C 0 - 95% |
||
| Operating temperature | +5°C to + 45°C 0 - 90% |
||
| Compliance with standards | Safety: EN 61010 - 1 (2001) Radio Interference: EN 55011 (Class-A) Harmonics: EN 61000-3-2 Flicker: EN 61000-3-3, EN 61000-6-2 (2005) ESD: EN 61000-4-2 Radiated RF Immunity: EN 61000-4-3 Burst: EN 61000-4-4 Surge: EN 61000-4-5 Conducted RF Immunity: EN 61000-4-6 Radiated Magnetic Field: EN 61000-4-8 DIPS: EN 61000-4-11 |
||
| Weight | 1.7 Kg (3.2 lbs) | 500 g (230V) 300 g (24V) | |
| Pollution degree | 2 | ||
| Installation Category | II | ||
| Acoustic noise (ISO7779) | LpA < 70 dB(A), normal operation, operator position | - |
| Type | Label | Description | Download |
|---|---|---|---|
|
Agilent TwisTorr 84 FS AG Rack Controller - NEW | User Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent TwisTorr 84 FS-AG Turbomolecular Vacuum Pump Controller - NEW Rack controller X350864001 / X3508-64001 RS 232-485 X350864002 / X3508-64002 RS & Profibus Onboard controller X350964000 / X3509-64000 100 ÷ 240 VAC X350964001 / X3509-64001 24 VDC
