Agilent TwisTorr Medium-TMP Rack Controller - NEW

Starting at $0
In stock
Only %1 left
SKU
NEW_TMPRACK

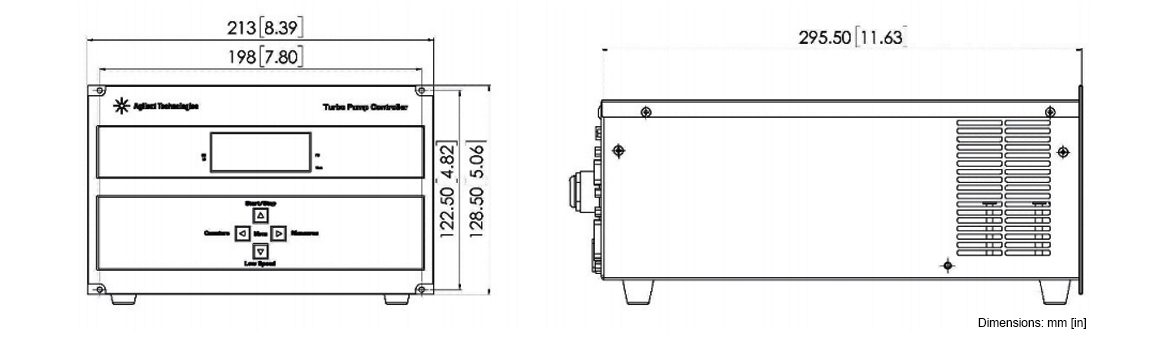

Height 128.5 mm
Width 213 mm
Length 295.50 mm
Weight 13.9 lbs

Agilent Varian TwisTorr Medium-TMP Rack Controller - NEW

The TwisTorr Medium TMP rack controller is a remote unit designed to operate the TwisTorr 404 FS, 704 FS, and 804 FS turbomolecular pumps. This 'half-rack' unit can be rack mounted or standalone. The controller optimizes pump parameters based on application conditions and drives vent valves and air cooling fans.

Capable of running on worldwide voltage, the TwisTorr Medium TMP rack controller can be mounted up to 100 m away from the pump. The controller also offers data monitoring via its display in addition to analog and serial interfaces.

  • Ready for use with the Vacuum Link app to give full pump control through your mobile phone
  • Pump cable lengths up to 100 m long for remote controller mounting
  • RS232/RS485 communication protocols (and optional Profibus interface) for easy data management
  • Analog I/O provides accurate control of the pump
  • Remote control with A-plus software enables pump operation, control, and recording of system parameters
  • Rack-mounted design for easy integration
  • Vent valve and cooling fan driving to give full vacuum system control
  • Universal voltage (100–240 V) enables worldwide operation

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Configuration
  • Remote controller, rack-mounted
For Pump Type
  • Turbo Pump
Maximum Pump Cable Length
  • 100 m
Operating Environment Relative Humidity
  • 90 % maximum non condensing humidity
Operating Environment Temperature
  • 5° C to 45° C
Pump Model Compatibility
  • TwisTorr 404 FS Turbo Pump
  • TwisTorr 704 FS Turbo Pump
  • TwisTorr 804 FS Turbo Pump
Standards and Certifications
  • EN 61010-1 (2010)
    EN 61326-1 (2013)
    Emission level : Class B for Residential Application
    Immunity level : for Industrial Application
Weight
  • 6.3 kg

Specs

Type Label Description Download
Agilent TwisTorr Medium-TMP Rack Controller - NEW User Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian TwisTorr Medium-TMP Rack Controller - NEW

X3501-64016 Rack Controller, 404 FS, 704 FS, 804 FS Turbo Pumps, 120-220v
X3501-64026 Twistorr Medium-TMP OS Rack Controller
