Agilent Varian VHS-4 - REBUILT

Name: Agilent Varian VHS-4 - REBUILT
Brand: Agilent Varian
SKU: REBUILT_VHS4

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_VHS4

Request For Quote

Weight	55 lbs
Pumping Speed	1,589 cfm
Ultimate Pressure	6.50 x 10^-1 Torr

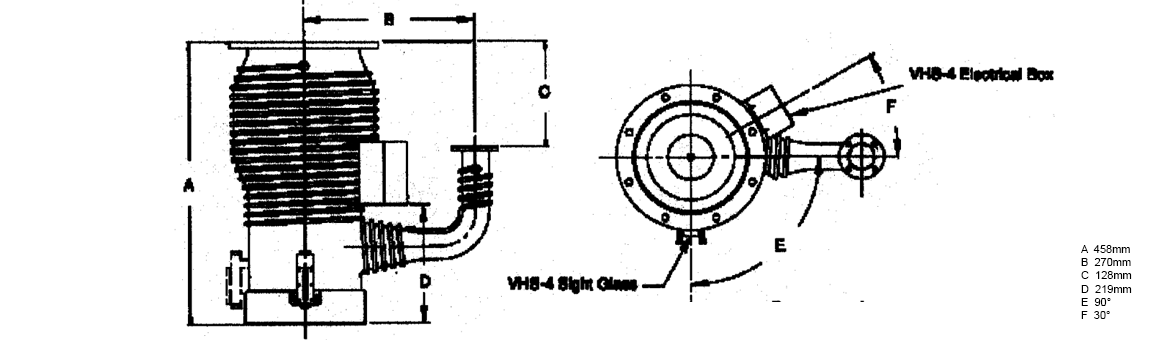

Dimensions

Description

Agilent Varian VHS-4 Diffusion High Vacuum Pump - REBUILT

The Agilent Varian VHS Series bulge contour increases gas capture and maintains lower pressure for the process. These VHS diffusion pumps have sight glass/fill and drain assemblies for continuous monitoring and easy maintenance of pump fluid. Finned boilers increase surface area, prolonging fluid life. Full thermal protection and quick-cool coils are also standard. Please let us know if you would like a quote for a different heater voltage or for repair service of your pump.

We also carry Agilent Varian diffusion pump LN₂ traps and baffles and valves.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Backstreaming Rate	5 x 10^-4 mg/cm²/min
Cooldown Time	10 min
Electrical Requirements	1-phase 50/60 Hz 120/208/240 V
Fluid Charge	300 CC
Fluid Type	Oil
Input Voltage	120, 208, 240 V
Maximum Forepressure - Full Load	0.55 Torr / 0.73 mbar
Maximum Forepressure - No Load	0.65 Torr / 0.86 mbar
Maximum Throughput	1.5 T-L/s (2.0 mbar-L/s)
Operating Range	2 x 10^-3 to < 5 x 10^-9 Torr 2.7 x 10^-3 to < 6.5 x 10^-9 mbar
Pump Power	1,450 W
Pump Weight	55 lbs / 25 kg
Pumping Speed - Air	750 L/s
Pumping Speed - Air, via AVS 4.1 (1963)	1,200 L/s
Pumping Speed - He/H2	940 L/s
Recommended Backing Pump	≥ 10 cfm (17 m³/hr)
Warmup Time	10 min
Water Connections	1/8 inch FPT
Water Cooling - Temperature Requirement	60-80°F / 15-26°C
Water Cooling Flow Requirement	0.15 gpm / 30 L/hr

Digital Manuals

Type	Label	Description	Download
	Varian Diffusion Pumps - REBUILT	Data Sheet	Download
	Varian VHS-4 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian VHS-4 Diffusion High Vacuum Pump - REBUILT

Type No. 0183

86460301 / 86460-301  ASA w/ standard cold cap 120V
86460311 / 86460-311  ASA w/ extended cold cap 120V
86460306 / 86460-306  ASA w/ standard cold cap 208V
86460316 / 86460-316  ASA w/ extended cold cap 208V
86460302 / 86460-302  ASA w/ standard cold cap 240V
86460312 / 86460-312  ASA w/ extended cold cap 240V
L6256301 / L6256-301  ISO w/ standard cold cap 120V
L6256311 / L6256-311  ISO w/ extended cold cap 120V
L6256306 / L6256-306  ISO w/ standard cold cap 208V
L6256316 / L6256-316  ISO w/ extended cold cap 208V
L6256302 / L6256-302  ISO w/ standard cold cap 240V
L6256312 / L6256-312  ISO w/ extended cold cap 240V
