Alcatel ATH 1600 M - REBUILT

Name: Alcatel ATH 1600 M - REBUILT
Brand: Adixen Alcatel
SKU: REBUILT_ATH1600M

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_ATH1600M

Request For Quote

Weight	92.59 lbs
Pumping Speed	1,400 l/s
Ultimate Pressure	6 x 10^-9 mbar

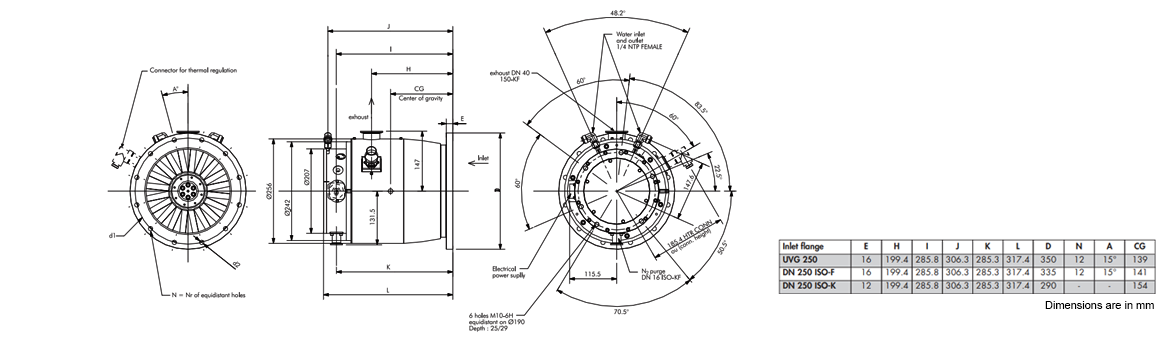

Dimensions

Description

Pfeiffer Adixen Alcatel ATH 1600 M Turbomolecular Vacuum Pump - REBUILT

5-axis magnetically levitated turbo pump with drag stage for a pump speed of up to 1,400 l/s for N₂.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Bearing	Magnet
Compression ratio for Ar	> 1 x 10⁸
Compression ratio for H₂	> 5 x 10²
Compression ratio for He	> 4 x 10³
Compression ratio for N₂	> 1 x 10⁸
Connection flange (in)	DN 250 ISO-F
Connection flange (out)	DN 40 ISO-KF
Cooling method	Water
Cooling water flow	60 l/h
Cooling water flow, max.	60 l/h
Cooling water flow, min.	60 l/h
Cooling water temperature	15-25°C \| 59-77°F \| 288-298 K
Corrosive gas version	Yes
Electronic drive unit	External drive electronics
Final pressure	< 6 x 10^-9 hPa \| < 4.5 x 10^-9 Torr \| < 6 x 10^-9 mbar
Final pressure without gas ballast	< 6 x 10^-9 hPa \| < 4.5 x 10^-9 Torr \| < 6 x 10^-9 mbar
Fore-vacuum max. for N₂	2.2 hPa \| 1.65 Torr \| 2.2 mbar
Gas throughput at maximum rotation speed for Ar, heated pump at 75°C	8.5 hPa·l/s
Gas throughput at maximum rotation speed for H₂, heated pump at 75°C	> 16.9 hPa·l/s
Gas throughput at maximum rotation speed for N₂, heated pump at 75°C	16.9 hPa·l/s
Gas throughput for Ar	20.3 hPa·l/s
Gas throughput for H₂	> 67.6 hPa·l/s
Gas throughput for He	> 67.6 hPa·l/s
Gas throughput for N₂	67.6 hPa·l/s
I/O interfaces	Via external drive electronics
Mounting orientation	Arbitrary
Operating voltage: 50/60 Hz	200 – 240 / 200 – 240

Digital Manuals

Type	Label	Description	Download
	Adixen Alcatel ATH 1300 / 1600 M-MT - REBUILT	Maglev Hybrid Turbomolecular Pumps	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Adixen Alcatel ATH 1600 M Turbomolecular Vacuum Pump - REBUILT

ATH 1600 MT, DN 200 ISO-F,
External drive electronics, Water cooled, Heated
P6562100

ATH 1600 MT, DN 200 ISO-F,
OBC V4 integrated drive electronics, Profibus, Water cooled, Heated
PM56215A

ATH 1600 MT, DN 200 ISO-F,
OBC V4 integrated drive electronics, Remote, Water cooled, Heated
PI56215A

ATH 1600 MT, DN 200 CF-F,
External drive electronics, Water cooled, Heated
P6522100

ATH 1600 MT, DN 200 CF-F,
OBC V4 integrated drive electronics, Profibus, Water cooled, Heated
PM52215A

ATH 1600 MT, DN 200 CF-F,
OBC V4 integrated drive electronics, Water cooled, Heated
PI52215A

ATH 1600 MT, DN 250 ISO-F,
External drive electronics, Water cooled, Heated
P6662100

ATH 1600 MT, DN 250 ISO-F,
OBC V4 integrated drive electronics, Profibus, Water cooled, Heated
PN66215A

ATH 1600 MT, DN 250 ISO-F,
OBC V4 integrated drive electronics, Remote, Water cooled, Heated
PI66215A

ATH 1600 MT, DN 250 CF-F,
External drive electronics, Water cooled, Heated
P6622100

ATH 1600 MT, DN 250 CF-F,
OBC V4 integrated drive electronics, Profibus, Water cooled, Heated
PM62215A

ATH 1600 MT, DN 250 CF-F,
OBC V4 integrated drive electronics, Remote, Water cooled, Heated
PI62215A
