Alcatel MDP 5011 - REBUILT
Weight
10 lbs
Pumping Speed
15.89 cfm
Ultimate Pressure
1 x 10-6 mbar

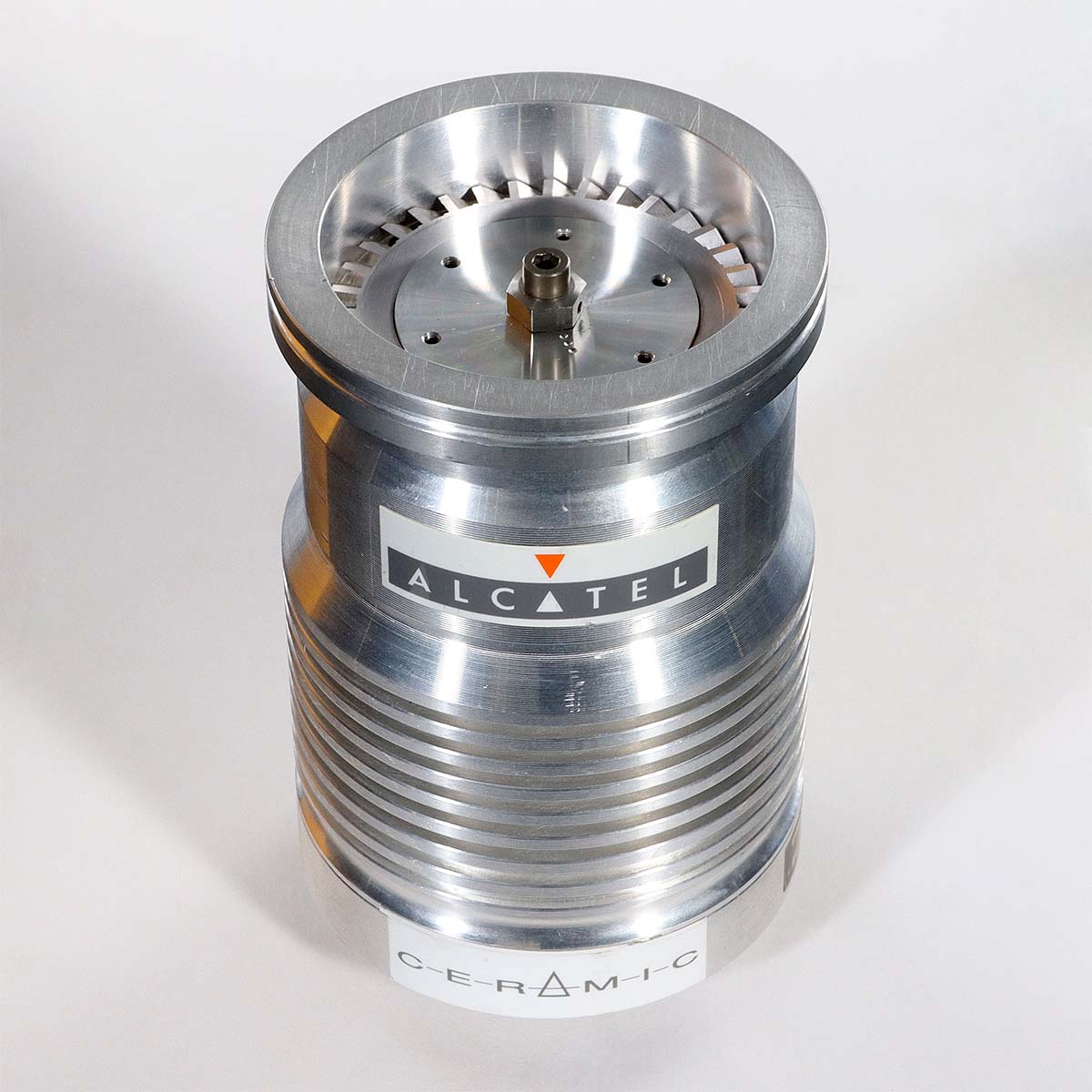

Alcatel MDP 5011 Turbomolecular Vacuum Pump - REBUILT
The MDP 5011 offers high pumping performances between 10 mbar and 10-5 mbar and a maximum flowrate fo 400 sccm.

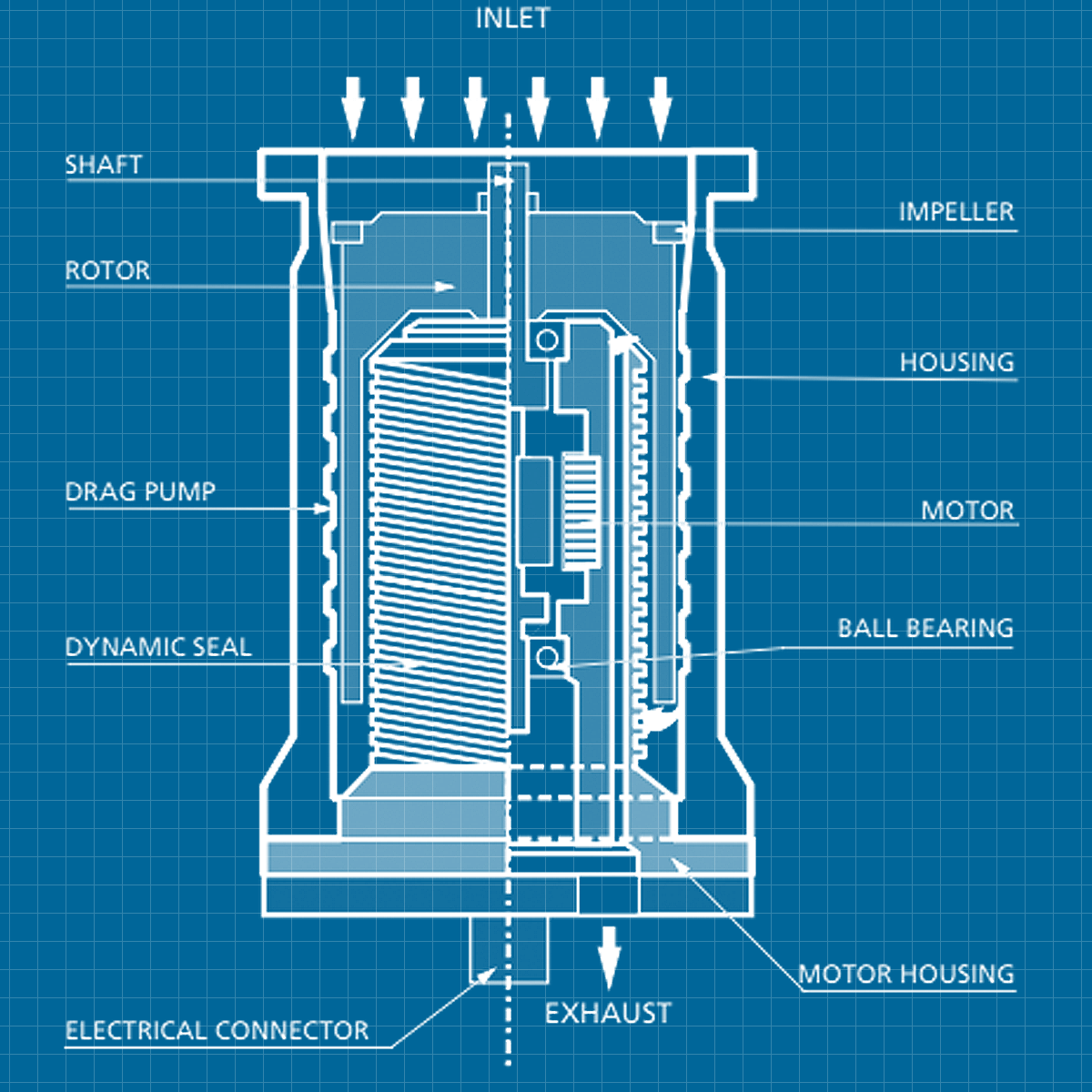

With a simple construction but robust rotor and low rotational speed (27,000 rpm), the MDP is robust against accidental air in-rush, shock venting and gyroscopic effects.
Including built in ceramic ball bearings, the MDP is easily field maintainable.
Questions? send an email to our sales team!

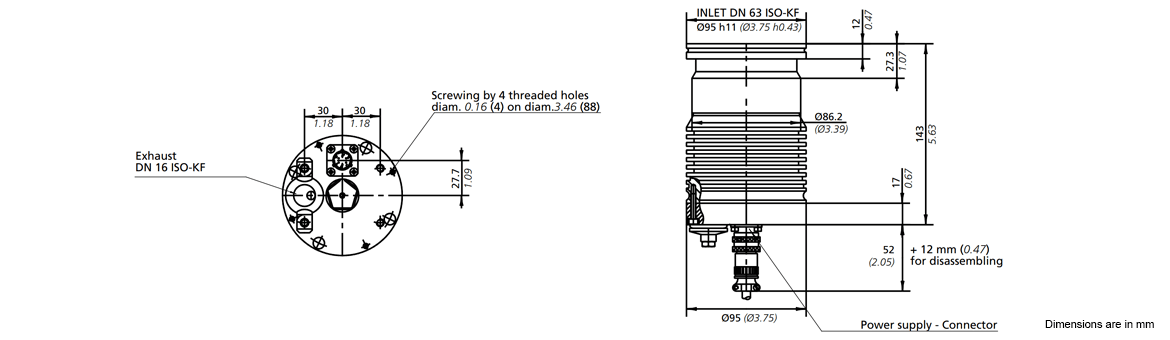

Inlet flange
DN 63 ISO-K
Exhaust flange
DN 16 ISO-KF
Rotation speed
27,000 tr/mn
Starting time (0 to 27,000 tr/mn)
< 1 mn
Pumping speed
N2
7.5 l/s
He
4 l/s
H2
3 l/s
Compression rate
N2
1 x 109
He
2 x 104
H2
1 x 103
Ultimate pressure (CP with purge sccm)
1 x 10-6 mbar
Max. pressure at inlet in continuous operation
Natural convection
1 x 10-1 mbar
Air cooling
10 mbar
Water cooling
10 mbar
Maximum pressure at exhaust in continuous operation
Natural convection
40 mbar
Air cooling
40 mbar
Water cooling
40 mbar
Ambient operating temperature
Natural convection
5 to 35°C (41 to 95°F)
Air cooling
5 to 35°C (41 to 95°F)
Water cooling
5 to 50°C (41 to 122°F)
Recommended primary pump
Ultimate pressure < 20 mbar
Weight
Natural convection
2.3 kg
Air cooling
3 kg
Water cooling
2.5 kg
Type
Label
Description
Download
Adixen Pfeiffer MDP 5011 - REBUILT
User's Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Alcatel MDP 5011 Turbomolecular Vacuum Pump - REBUILT
