Alcatel PTM 5081 - REBUILT

Name: Alcatel PTM 5081 - REBUILT
Brand: Adixen Alcatel
SKU: REBUILT_PTM5081

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_PTM5081

Request For Quote

Weight	6.6 lbs
Pumping Speed	80 l/s
Ultimate Pressure	≤ 5 x 10^-9 mbar

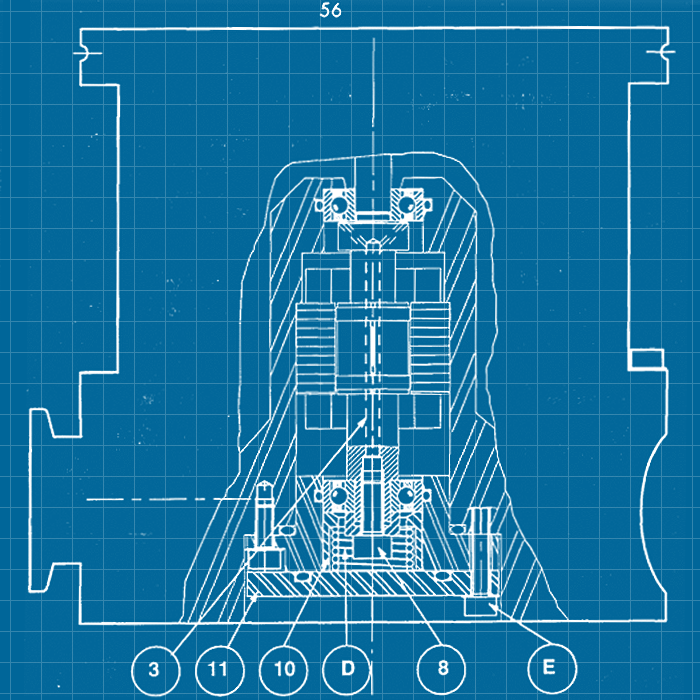

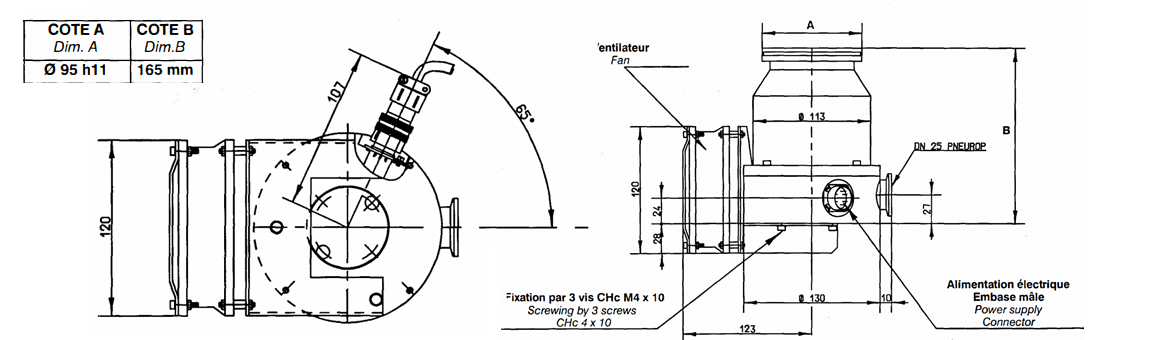

Dimensions

Description

Alcatel PTM 5081 Turbomolecular Vacuum Pump - REBUILT

5-axis magnetically levitated turbopump with drag stage for a pump speed of up to 1,400 l/s for N₂.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Pumping speed
N₂	80 l/s
He	50 l/s
H₂	40 l/s
Compression ratio
N₂	8 x 10⁷
He	2,500
H₂	300
Ultimate pressure (measured w/ 2 stages RP & metal seal at inlet)	≤ 5 x 10^-9mbar
Maximum pressure in continuous operation
TMP cooled by natural convection	1 x 10^-3 mbar at inlet 1 x 10^-2 mbar at exhaust
TMP air cooled	1 x 10^-1 mbar at inlet & exhaust
TMP water cooled	1 x 10^-1 mbar at inlet & exhaust
Roughing pump recommended	4 m³/h (3.2 cfm) - 2004A
Rotational speed	27,000 rpm
Startup	≤ 1 mn 45 s
Ambient temperature
TMP cooled by natural convection	0 to 35°C (32 to 95°F)
TMP air cooled or by natural convection	0 to 35°C (32 to 95°F)
TMP water cooled	0 to 50°C (32 to 132°F)
Water flow	0.2 to 1 l/mn w/ water temperature between 10 and 20°C
Weight	3 kg (6.6 lbs)

Digital Manuals

Type	Label	Description	Download
	Alcatel 5081 - 5101 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Alcatel Annecy Ty. PTM 5081 Turbomolecular Vacuum Pump - REBUILT

795576 795412  5081  ISO-63 115V Ambient air cooled
795574 795412  5081  ISO-63 220V Ambient air cooled
795577 795412  5081  ISO-63 240V Ambient air cooled
795575 795412  5081  ISO-63 100/200V Ambient air cooled
795416 795414  5081  ISO-63 115V Forced air cooled
795413 795519  5081  ISO-63 220V Forced air cooled
795435 795414  5081  ISO-63 240V Forced air cooled
795415 795414  5081  ISO-63 100/200V Forced air cooled
795527 795525  5081  ISO-63 115V water cooled
795529 795525  5081  ISO-63 220V water cooled
795526 795525  5081  ISO-63 240V water cooled
795528 795525  5081  ISO-63 100/200V water cooled
