ANEST IWATA ISP-250C - REBUILT
Weight
55 lbs
Motor Power
0.5 hp
Pumping Speed
10.59 cfm
Ultimate Pressure
< 1.6 x 10-2 mbar
ANEST IWATA ISP-250C Dry Scroll Vacuum Pump - REBUILT
Rebuilt ANEST IWATA scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.
Questions? send an email to our sales team!
Displacement
50 Hz
250 L/min
Ultimate pressure Pa
≤ 1.6
Leak tightness Pa • m3 /s
≤ 1.0 x 10-5
Max. inlet pressure
Atmospheric pressure
Ambient operating temperature
5°C ~ 40°C
Type
Single-phase induction motor 4P
3-phase induction motor 4P
Output
0.4 kW
Voltage
100 V
115 V
200 V
230 V
200 V
208 V
230 V
380 V
400 V
415 V
460 V
Rated current A
50 Hz
4.8
-
2.6
2.4
1.6
-
-
0.9
0.9
1.0
-
Revolution min-1 {rpm}
50 Hz
1,440
-
1,430
1,450
1,420
-
-
1,440
1,440
1,440
-
Noise level at 1m dB(A)
≤ 58
Inlet connection
NW25
Outlet connection
NW16
Direction of inlet
Vertical

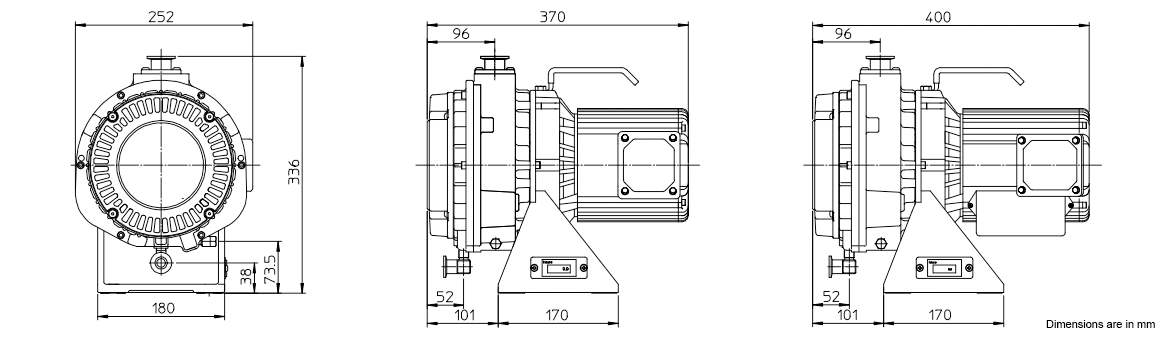

Dimensions
400 x 252 x 336 mm
370 x 252 x 336 mm
Mass
25 kg (55.1 lbs)
23 kg (50.7 lbs)
Cooling system
Air-cooled
Others
w/ hour counter and air-flush
Specifications
Type
Label
Description
Download
ANEST IWATA ISP-250C & ISP-500C - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
ANEST IWATA ISP-250C Dry Scroll Vacuum Pump - REBUILT
ISP-250 single-phase 10.6 cfm
ISP-250 three-phase 10.6 cfm
ISP-250B 1-phase 10.6 cfm
ISP-250B 3-phase 10.6 cfm
ISP-250C 1-phase 10.6 cfm
ISP-250C 3-phase 10.6 cfm
