The ISP series of vacuum pumps offer a clean vacuum environment and eliminate the nuisance of cumbersome lubricant maintenance or sealing water administration. The ISP series is free from installation restrictions because of its air-cooled system. ISP vacuum pumps maintain low power consumption from atmosphere to maximum pressure.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Displacement

50 Hz
60 Hz

500 L/min
600 L/min

Ultimate pressure Pa

≤ 1

Leak tightness Pa • m³/s

≤ 1.0 x 10^-5

Max. inlet pressure

Atmospheric pressure

Ambient operating temperature

5°C ~ 40°C

Type

Single-phase induction motor 4P
Totally-enclosed
Insulation Class B IP44
Capacitor start TP212
Automatic Reset Type

3-phase induction motor 4P
Totally-Enclosed
Insulation Class B IP44

Output

0.6 kW

Voltage

100 V

115 V

200 V

230 V

200 V

208 V

230 V

380 V

400 V

415 V

460 V

Rated current A

50 Hz
60 Hz

8.5
10.0

-
8.6

4.3
4.8

3.9
4.0

2.7
2.8

-
2.6

-
2.5

1.57
-

1.63
-

-
1.47

Revolution min^-1 {rpm}

50 Hz
60 Hz

1,430
1,660

-
1,720

1,430
1,690

1,450
1,730

1,460
1,740

-
1,760

1,470
-

-
1,770

Noise level at 1m dB(A)
w/ air-flush ON

≤ 62
≤ 70

≤ 60
≤ 68

Inlet connection

NW40

Outlet connection

NW25

Direction of inlet

Horizontal (vertical)

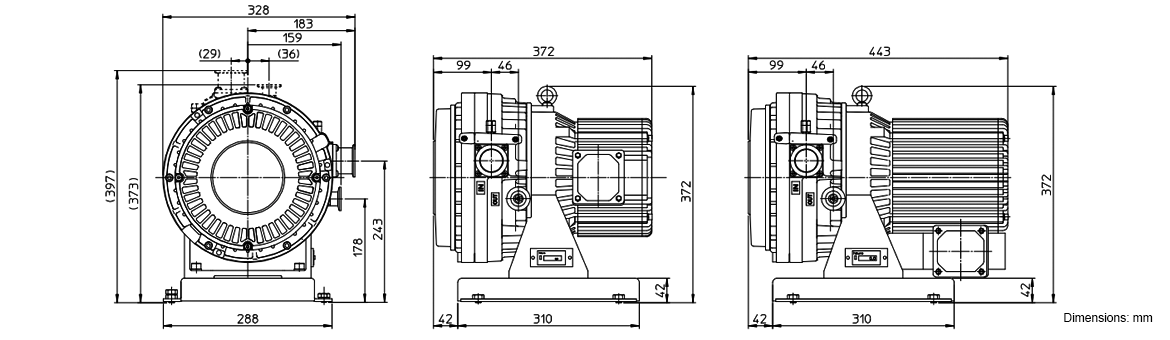

Dimensions

443 x 328 x 372 mm
17.4 x 12.9 x 14.6 in

372 x 328 x 372 mm
14.6 x 12.9 x 14.6 in

Mass

44 kg (97 lbs)

38 kg (83.7 lbs)

Cooling system

Air-cooled

Others

w/ hour counter and air-flush

Digital Manuals

Type	Label	Description	Download
	ANEST IWATA ISP-250C & ISP-500C - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

ANEST IWATA ISP-500C Dry Scroll Vacuum Pump - NEW

ISP-500C-SH     1-phase 100-115V, Horizontal inlet
ISP-500C-SV     1-phase 100-115V, Vertical inlet
ISP-500C-TH     3-phase 200-230V, Horizontal
ISP-500C-TV     3-phase 200-230V, Vertical

ISP-500C-SV-D1  1-phase 100-115V VFD: Dual speed operation, Remote & manual control
ISP-500C-SV-D2  1-phase 200-230V VFD: Dual speed operation, Remote & manual control
