CTI-Cryogenics 8500 - REBUILT
| Weight |
340 lbs |
| Height |
672 mm |
| Width |
540 mm |
| Length |
493 mm |
| Power |
6.75 kW |

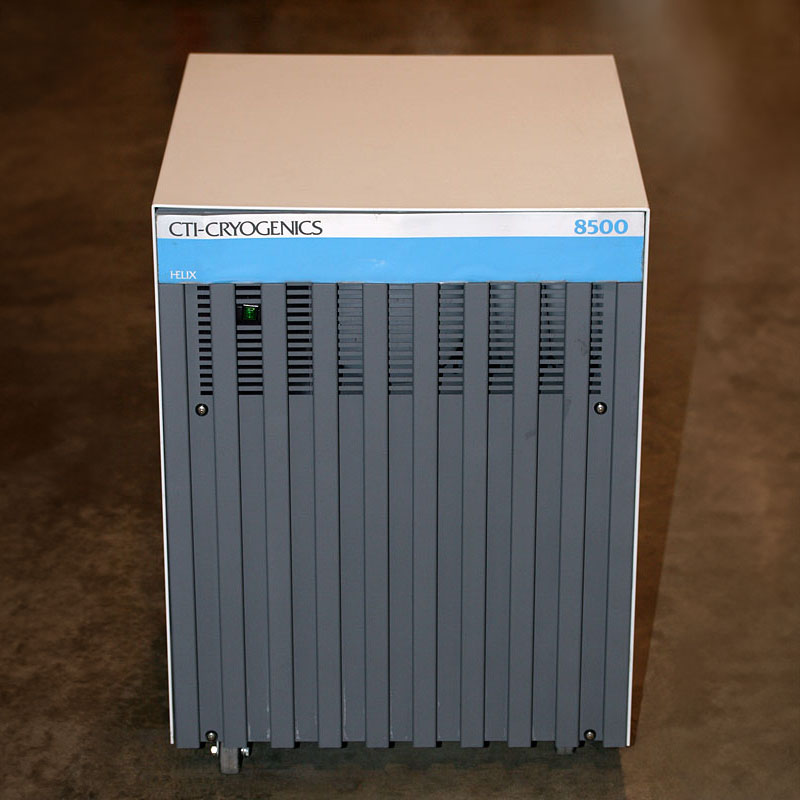

Brooks CTI-Cryogenics 8500 Helium Compressor - REBUILT
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Model |
Cooling Type |
Capacity (pump models) |
Weight |
| SC |
air/water |
1 Cryo-Torr (100, 7, 8, 8F) |
175 |
| 8200 |
air/water |
1 On-Board (100, 7, 8, 8F) |
155 |
| 8300 |
water |
| 1020R |
air/water |
1 Cryo-Torr (10, 400, 500) or 3 Cryo-Torrs (100, 7, 8, 8F) |
350 |
| 8500 |
water |
365 |
| 8510 |
water |
1 On-Board (10, 400, 500) or 3 On-Board (100, 7, 8, 8F) |
| 9600 |
water |
275 |
| Part # |
8031348G001 |
8031348G002 |
| Cooling |
Water |
| Capacity (pump model) |
1 Cryo-Torr 10
|
| Type |
Label |
Description |
Download |
|
|

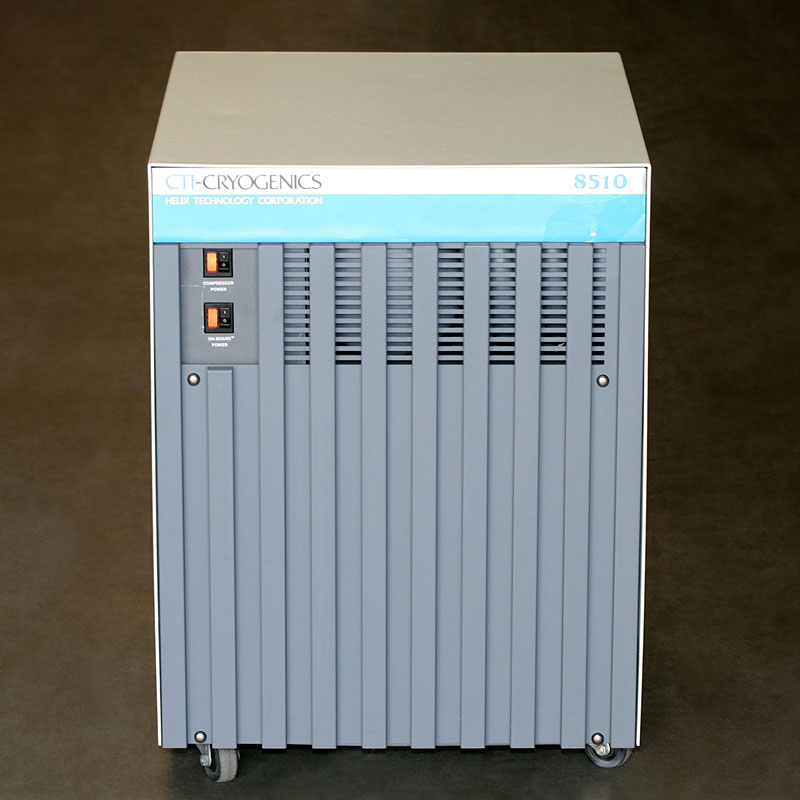

Brooks CTI-Cryogenics 8510 - REBUILT |
Installation, Operation & Service Instructions |
Download
|
|
|
Brooks CTI-Cryogenics 8500 - REBUILT |
Installation, Operation & Servicing Instructions |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Brooks CTI-Cryogenics 8500 Helium Compressor - REBUILT
8031348G001 LV low voltage 208/230V 60Hz 3-phase
8031348G002 HV high voltage 460V 60Hz 3-phase
