CTI-Cryogenics 8510 - REBUILT

Call for Price

In stock
Only %1 left
SKU
REBUILT_8510
Weight 340 lbs

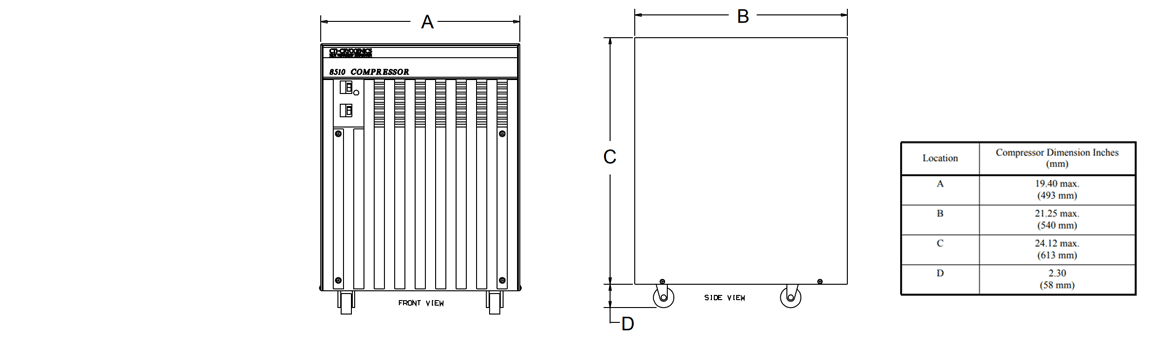

Height 672 mm
Width 540 mm
Length 493 mm
Power 6.75 kW

Brooks CTI-Cryogenics 8510 Helium Compressor - REBUILT

This compressor has been designed to operate with water having a pH value of 6.0 to 8.0 and a calcium carbonate concentration of less than 75 parts per million (typical municipal drinking water quality). For applications of lower pH or greater hardness, water conditioning may be necessary.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Model Cooling Type Capacity (pump models) Weight
SC air/water 1 Cryo-Torr (100, 7, 8, 8F) 175
8200 air/water 1 On-Board (100, 7, 8, 8F) 155
8300 water
1020R air/water 1 Cryo-Torr (10, 400, 500) or 3 Cryo-Torrs (100, 7, 8, 8F) 350

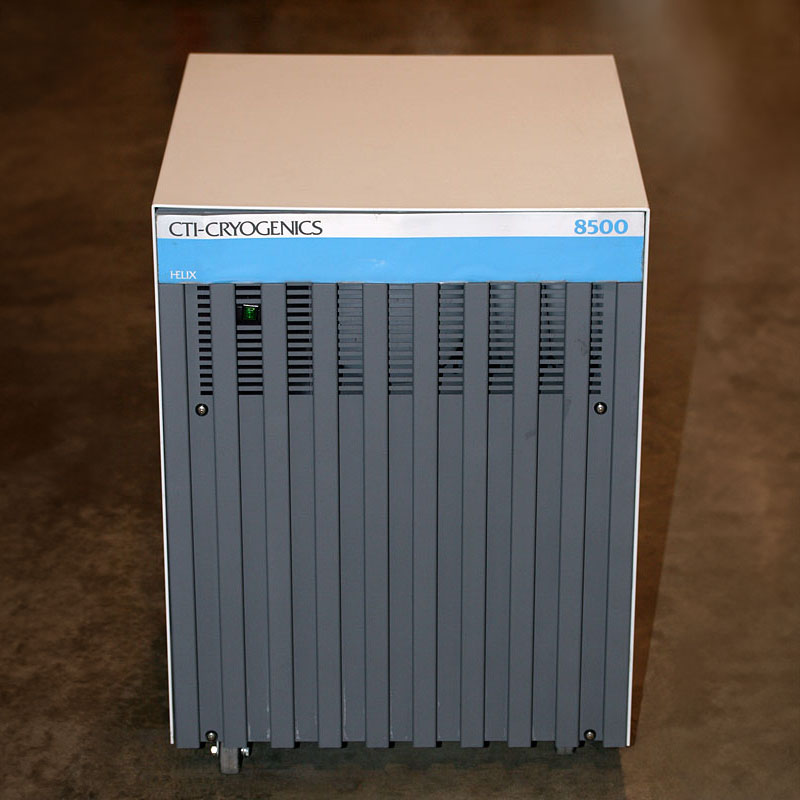

8500 water 365

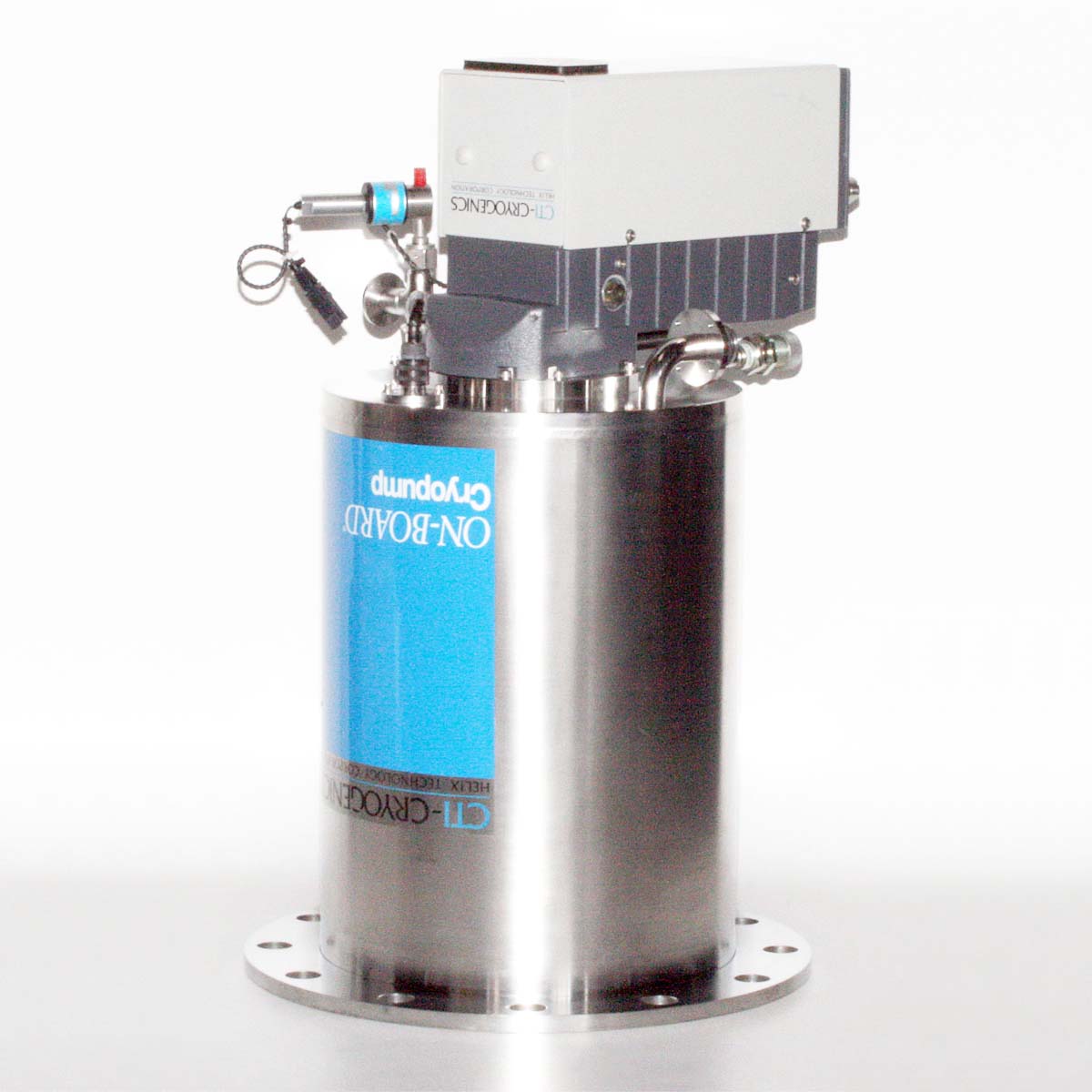

8510 water 1 On-Board (10, 400, 500) or 3 On-Board (100, 7, 8, 8F)
9600 water 275

Specs

Type Label Description Download
Brooks CTI-Cryogenics 8510 - REBUILT Installation, Operation & Service Instructions Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Brooks CTI-Cryogenics 8510 Helium Compressor - REBUILT

8031315      LV low voltage 208/230V 60Hz 3-phase
8031400G002  HV high voltage 460V 60Hz 3-phase
