CTI-Cryogenics IS-2000V - REBUILT
Call for Price
In stock
SKU
REBUILT_IS2000V
| Weight | 575 lbs |
|---|---|
| Height | 1481 mm |
| Width | 518 mm |
| Length | 686 mm |
| Power | 13.5 kW |

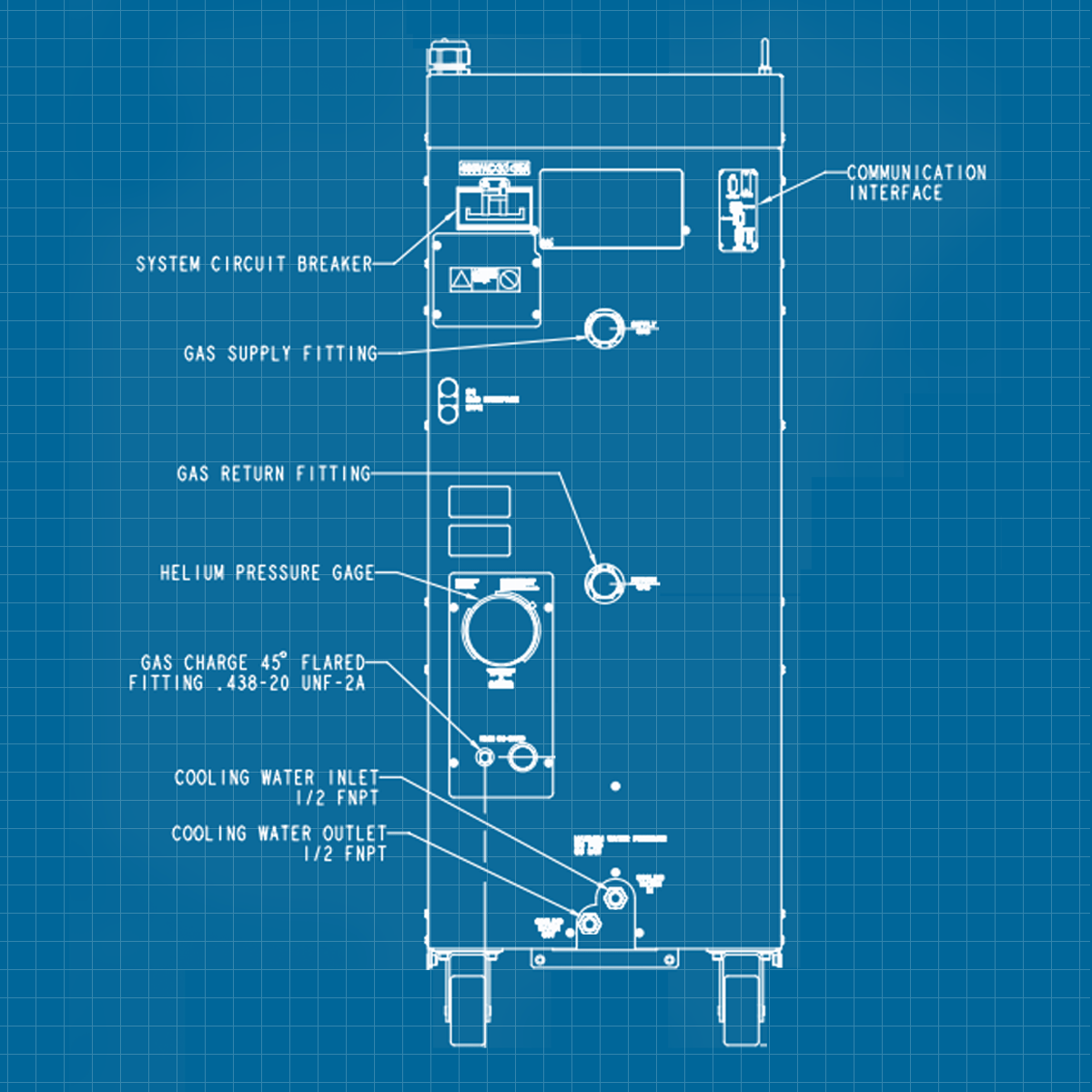

Brooks CTI-Cryogenics IS-2000V Helium Compressor - REBUILT
Atlas Copco purchased CTI from Brooks and placed it under the Edwards brand.
The IS-2000V delivers the lowest power usage at all phases of operation via the combination of higher pressure, rotary technology and adaptable helium delivery aligning with SEMI S-23 objectives. The IS-2000V replaces two On-Board IS-1000 compressors. This high capacity helium compressor is designed to support On-Board IS cryopump applications.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Low Voltage | High Voltage | |
|---|---|---|
| Operating voltage | 180 - 253 VAC | 342 - 528 VAC |
| Line frequency | 50 / 60 Hz | |
| Phase | 3 | |
| Nominal input power | 13.5 kW | |
| Cooling water | 3.0 to 4.0 gpm | |
| Adsorber service schedule | 3 Years | |
| Weight | 550 lbs / 250 kg | 575 lbs / 261 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Brooks CTI-Cryogenics IS-2000V - REBUILT | Data Sheet | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Brooks CTI-Cryogenics IS-2000V Helium Compressor - REBUILT
8135936G002R
Related Products
-

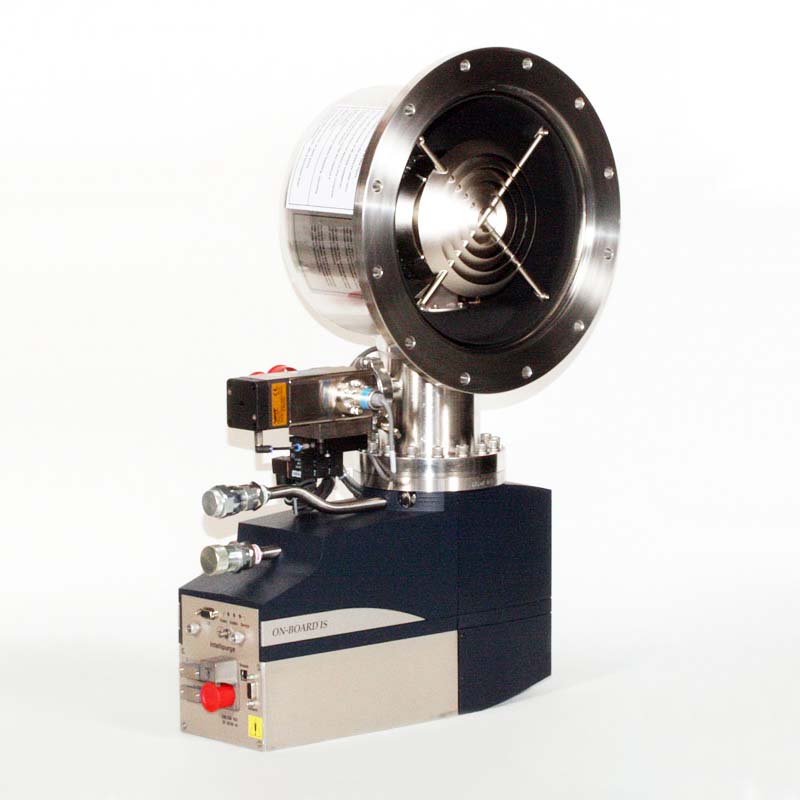

CTI-Cryogenics On-Board IS 250F - REBUILTCall for Price
-

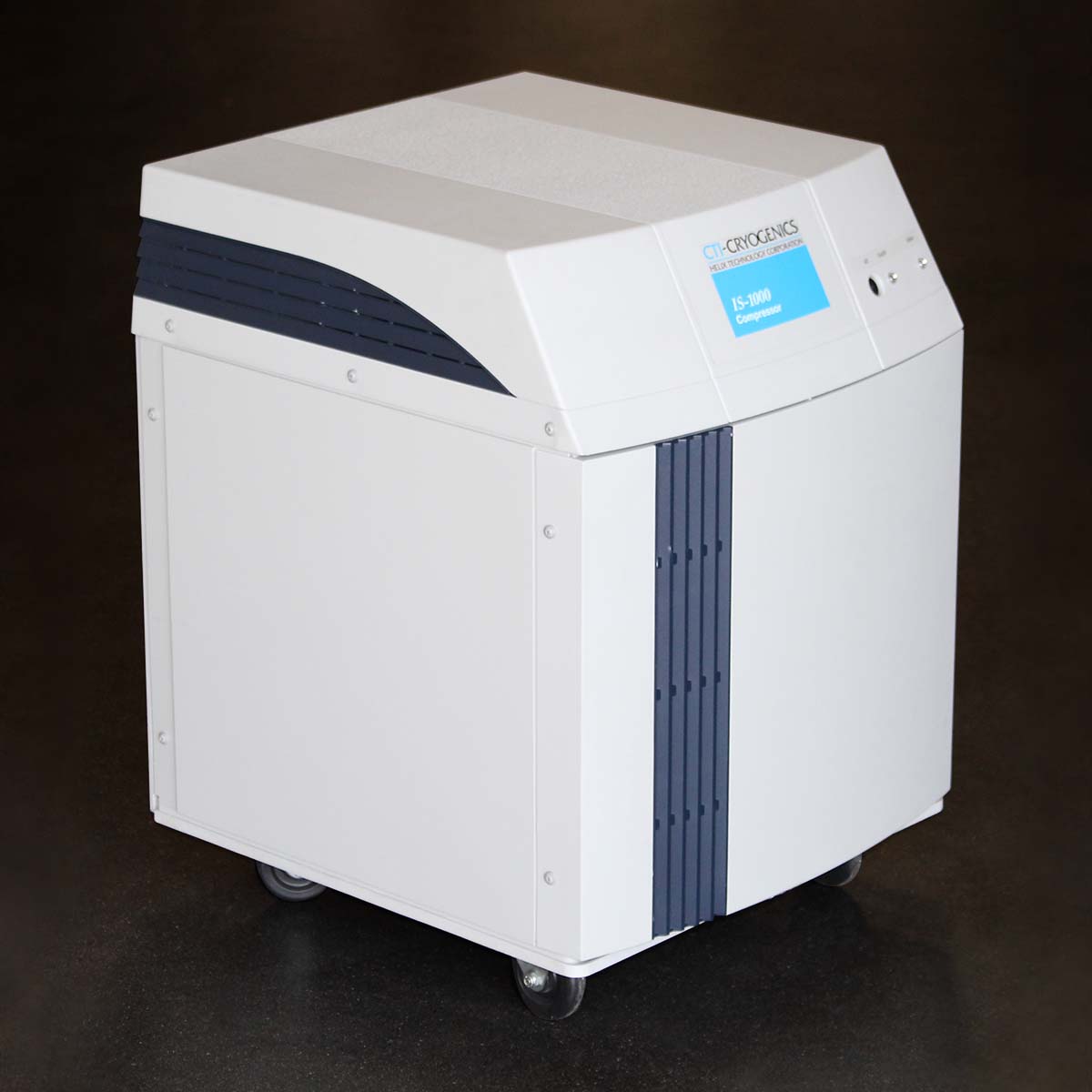

CTI-Cryogenics IS-1000 - REBUILTCall for Price
-
