CTI-Cryogenics On-Board IS 320FE - REBUILT
Call for Price
| Weight | 100 lbs |
|---|---|
| Pumping Speed | 3,600 l/s |

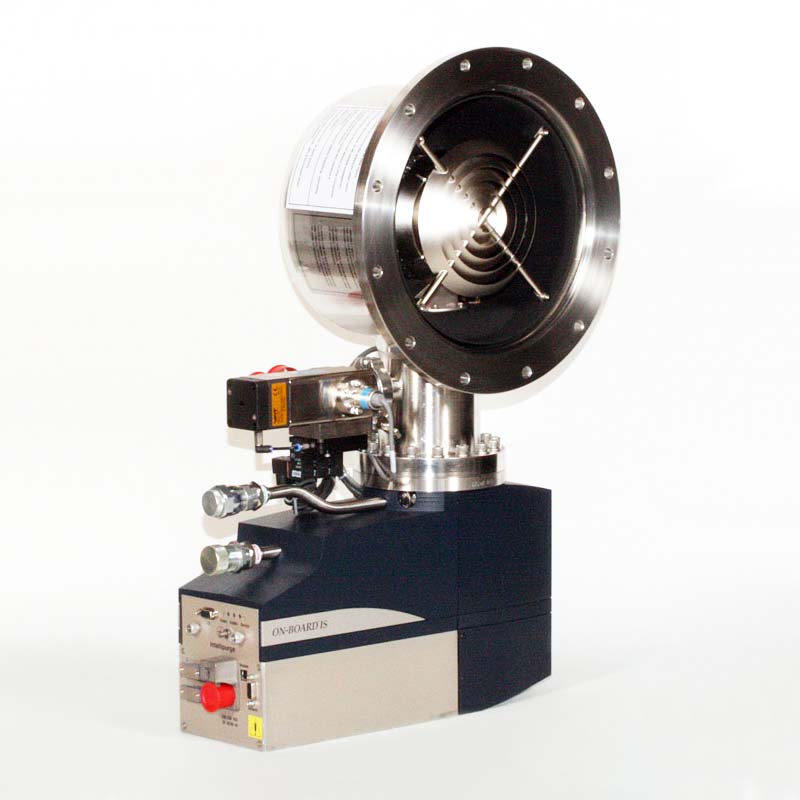

Brooks CTI-Cryogenics On-Board IS 320FE Vacuum Cryopump - REBUILT
The acquisition of CTI from Brooks includes cryo pump operations located in Chelmsford, USA and Monterrey, Mexico, under the Edwards brand.
Call for a quote. Ask us for options you would like included e.g. a three phase motor or a Fast Regen module. We also offer one year warranty repair service. View the other On-Board IS models.
Brooks CTI-Cryogenics On-Board cryogenic vacuum pumps incorporate embedded microprocessor control to enhance performance, perform diagnostic routines and provide communication capability. The On-Board Network module is included in the price.
Features
- Regenerates in half the time of a typical Cryo-Torr cryopump.
- Simultaneous regeneration capability, enabled by networking your cryopumps, to speed the overall system regeneration.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
This product has been refurbished by PTB Sales, Inc. PTB Sales is not affiliated with Brooks Automation, Inc., the Original Equipment Manufacturer. In some cases, PTB Sales uses processes and parts that are different from those used by the OEM, and the OEM expressly disclaims any warranty obligations with respect to this refurbished product.
| Model | On-Board IS 320F | On-Board IS 320FE | |
|---|---|---|---|

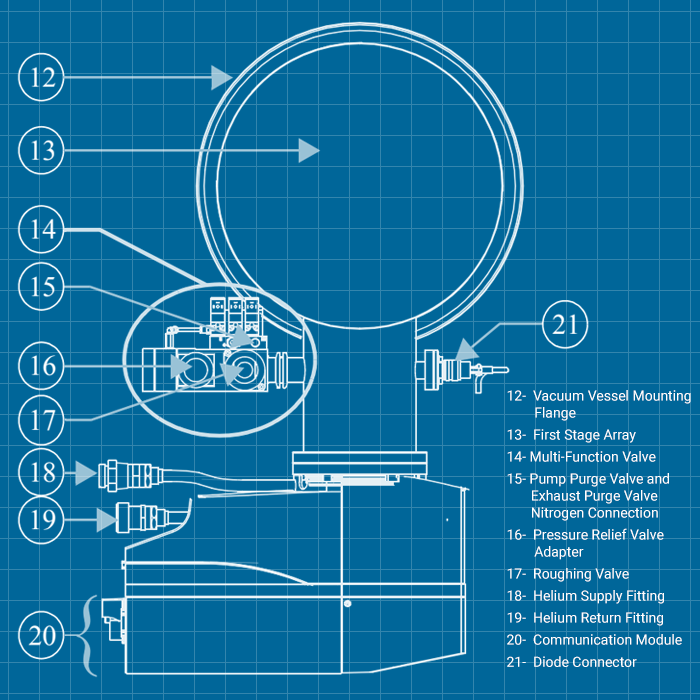

| Integrated hardware | Roughing valve Purge valve Cryopump TC gauge 1st stage diode 2nd stage diode 1st stage heater 2nd stage heater RS-232 interface |
||
| Pumping speeds | H2O | 11,000 liters/sec | 11,000 liters/sec |
| N2 | 3,300 liters/sec | 3,600 liters/sec | |
| H2 | 9,000 liters/sec | 12,500 liters/sec | |
| Ar | 2,700 liters/sec | 3,000 liters/sec | |
| Capacities | H2 | 30 std. liters @ 5 x 10-6 Torr | |
| Crossover | 300 Torr-liters | ||
| Full Regeneration - cold to cold (with 20 minutes extended purge) |
≤ 150 minutes (1 pump / 1 compressor) ≤ 150 minutes (3 pumps / 1 compressor) with TI = 100K |
||
| Fast regeneration | ≤ 75 minutes (1 pump / 1 compressor) ≤ 75 minutes (3 pumps / 1 compressor) with TI = 100K |
||
| Weight | 100 lbs | ||
This product has been refurbished by PTB Sales
| Type | Label | Description | Download |
|---|---|---|---|
|
Brooks CTI-Cryogenics On-Board IS Series - REBUILT | Installation Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Brooks CTI-Cryogenics On-Board IS 320FE/FX Vacuum Cryopump - REBUILT Please contact us for part number configurations:
| 8185049G001 | 8185059G001 | 8185081G001 | 8185082G001 | 8185090G001 | 8185102G001 | 8185104G001 | 8185105G001 |
| 8185106G001 | 8185122G001 | 8185123G001 | 8185134G001 | 8185134G002 | 8185134G003 | 8185141G001 | 8185161G001 |
| 8185169G001 | 8185169G002 | 8185170G001 | 8185171G001 | 8185187G001 |
This product has been refurbished by PTB Sales, Inc. PTB Sales is not affiliated with Brooks Automation, Inc., the Original Equipment Manufacturer. In some cases, PTB Sales uses processes and parts that are different from those used by the OEM, and the OEM expressly disclaims any warranty obligations with respect to this refurbished product.
