EBARA A70W - REBUILT

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_A70W

Request For Quote

Weight	838 lbs
Pumping Speed	296.64 cfm
Ultimate Pressure	9.75 x 10^-4 torr

EBARA A70W Multi-Stage Dry Vacuum Pump - REBUILT

Technical Characteristics

Complete pump safeguard system
High pump operating temperature preventing condensation
Low noise and low vibration
Corrosion resistant materials-stainless steel coolers, water circuits
High reliability even for harsh processes
Efficient interstage coolers for LPCVD nitride process
Canned motor
Low service requirements
Control panel for monitoring operating conditions

Customer Benefits

Very low nitrogen consumption for purging
Clean room compatible
Low service requirements
Compact size and small footprint

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Pumping speed (N₂) 50/60 Hz	7,000 / 8,400 l/min
Pumping speed (N₂) 50/60 Hz	420 / 504 m³/h
Ultimate pressure 50/60 Hz	3 x 10^-3 / 1.3 x 10^-3mbar
Ultimate pressure 50/60 Hz	0.3 / 0.13 Pa
Water consumption	3.5 l/min
Nitrogen consumption	14-16 slm
Nitrogen consumption	24-27 Pa m³/sec
Voltages ranges	200-220/380-415 V
Motor power, installed	2.2+3.7 kW
Weight, approx.	380 kg

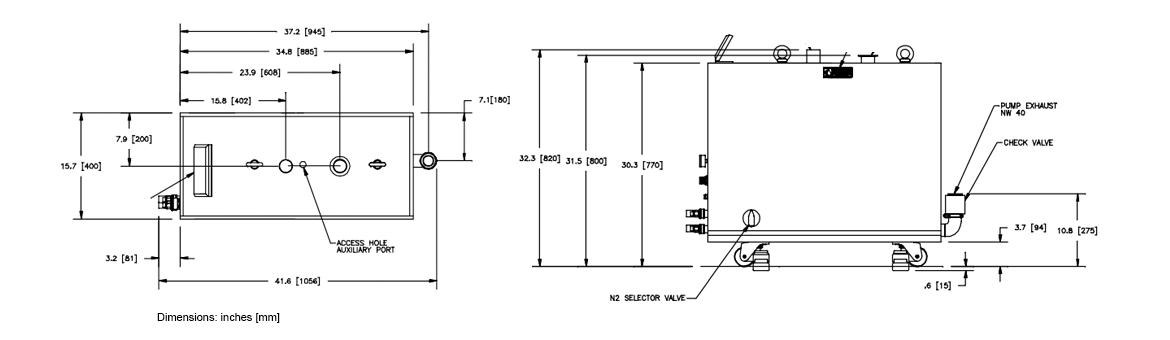

Dimensions	825 x 400 x 760 mm
Inlet flange size	DN 50 KF
Outlet flange size	DN 40 KF

Digital Manuals

Type	Label	Description	Download
	EBARA A Series - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

EBARA A70W Multi-Stage Dry Vacuum Pump - REBUILT
