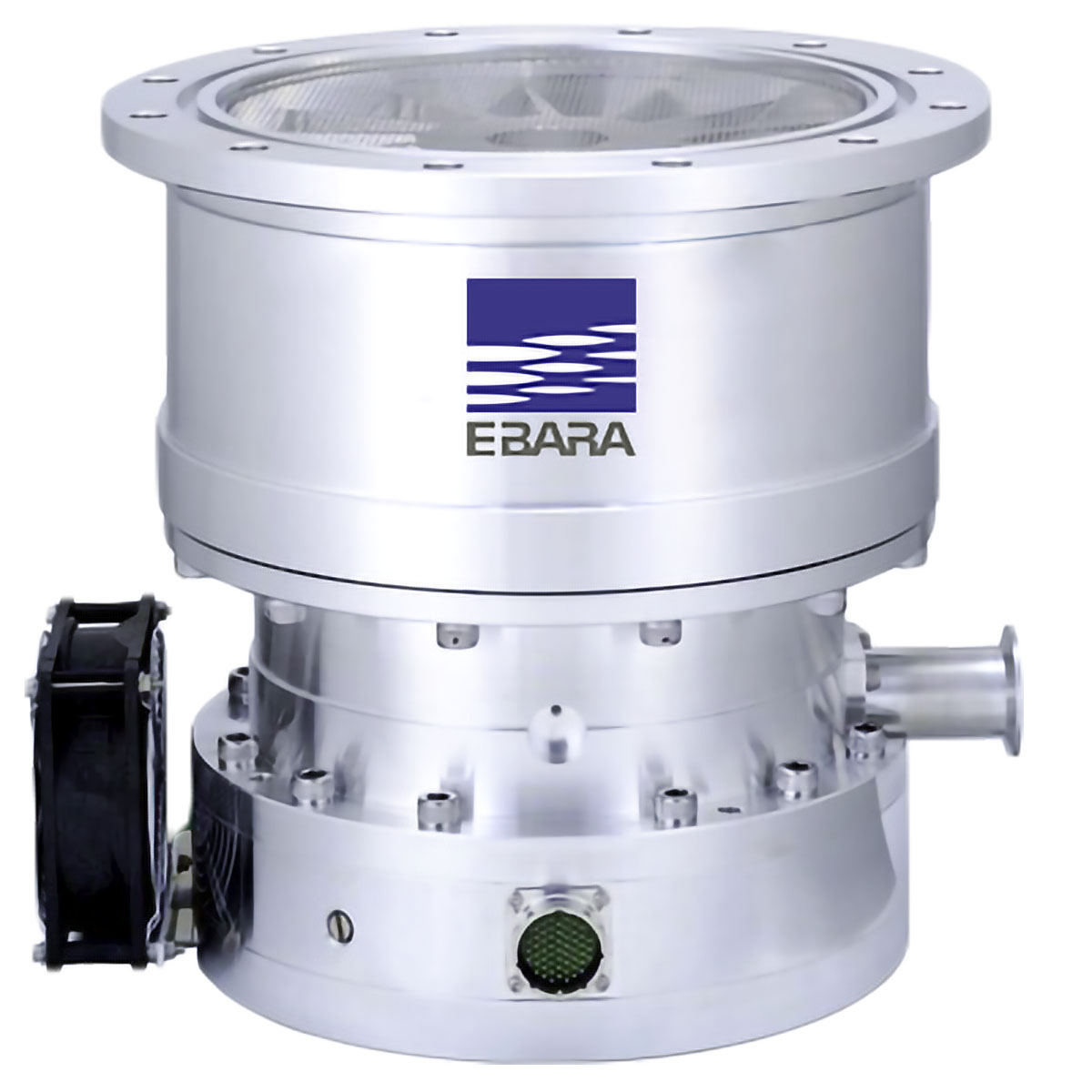

EBARA EMT 2204 MK Mag Lev - REBUILT
Call for Price
| Weight | 118 lbs |
|---|---|
| Pumping Speed | 2,200 l/s |
| Ultimate Pressure | < 7.50 x 10-9 Torr |
EBARA EMT 2204 MK Magnetically Levitated Turbo Vacuum Pump - REBUILT
The EMT Series offers five major types of turbomolecular pumps - temperature-controlled, corrosion resistant, ultra low vibration, radiation resistant, and ultra high vacuum.
The EMT Series turbomolecular pumps features a wide pressure range with maximum back pressure up to 3 Torr.
The temperature controlled model turbomolecular pumps reduce the rate condensation of the byproduct and process effluent build up commonly found inside a turbomolecular pump. The patented thermal insulation structure with integrated temperature management system is the most energy efficient temperature controlled turbomolecular pump on the market today.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet flange | ISO-B250 | |
| Outlet flange | NW40, NW50 | |
| Input voltage | 200 - 240 VAC - 15%+10% | |
| Phase | Single | |
| Frequency | 50/60 Hz | |
| Current Power |
Max. 5.3 A Max. 0.9 kVA |
|
| Pumping Speed, l/s | N2 | 2,200 |
| N2 with protective screen | 2,100 | |
| H2 | 1,800 | |
| Maximum compression ratio | N2 | > 2 x 108 |
| H2 | 3 x 103 | |
| Ultimate pressure | Pa (Torr) | < 1 x 10-6 (7.5 x 10-9) |
| Maximum foreline pressure | Pa (Torr) | 100 (0.75) |
| Maximum Throughput | N2 | 5,520 Pa l/s (3,000 sccm) |
| Ar | 4,790 Pa l/s (2,600 sccm) | |
| Mounting orientation | Any | |
| Communication module | Parallel I/O, RS232C, RS485, Profibus, or DeviceNet | |
| Cooling system | Water cooling | |
| Weight | kg (lbs) | 62 (137) |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
EBARA EMT 2204 MK Magnetically Levitated Turbomolecular Vacuum Pump - REBUILT EMT2204MKBWC
