Edwards E2M12 - REBUILT

Name: Edwards E2M12 - REBUILT
Brand: Edwards
SKU: REBUILT_E2M12

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_E2M12

Request For Quote

Weight	63.8 lbs
Pumping Speed	14.8 m³h^-1
Ultimate Pressure	2.5 x 10^-4 mbar

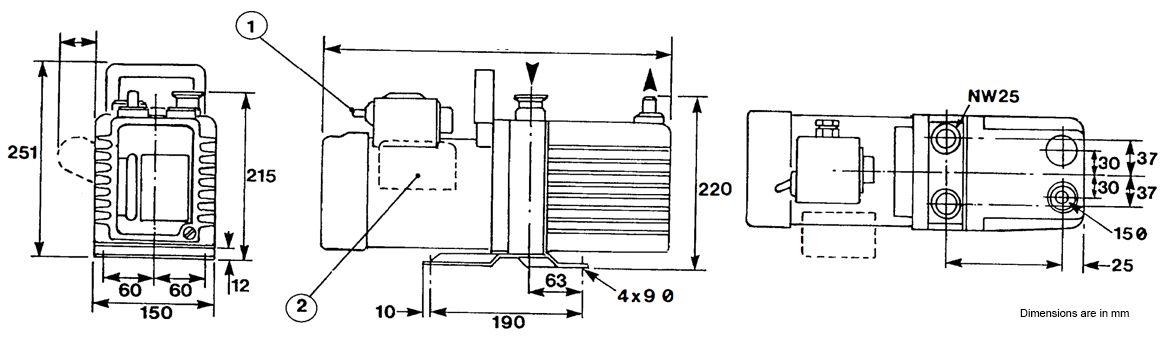

Dimensions

Description

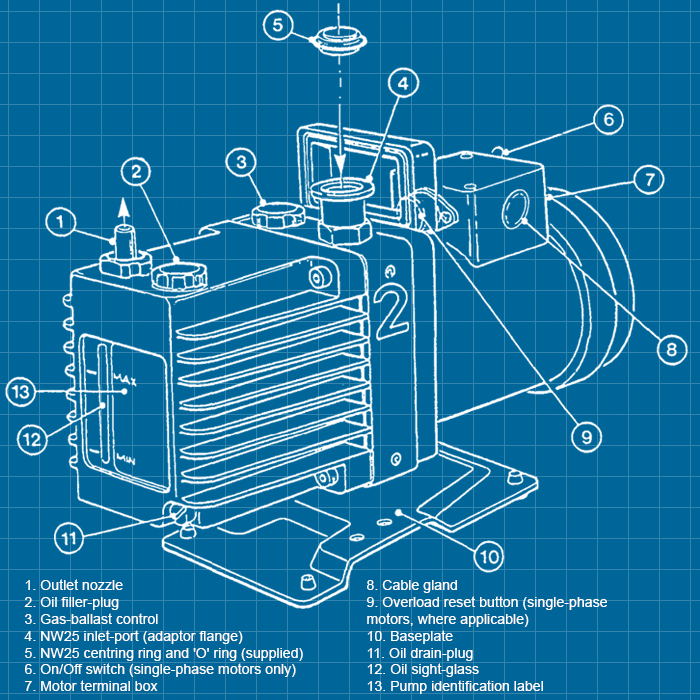

Edwards E2M12 Two Stage Rotary Vane Vacuum Pump - REBUILT

Edwards upgraded this model to the RV modern version. These older E2M12 pumps are getting hard to find parts for.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Displacement (swept volume)
50 Hz	14.3 m³h^-1
60 Hz	17.3 m³h^-1
Speed (Pneurop 6602)
50 Hz	12.0 m³h^-1
60 Hz	14.8 m³h^-1
Ultimate vacuum
w/out gas ballast (partial pressure)	2.5 x 10^-4 mbar / 2.5 x 10^-2 Pa
w/out gas ballast (total pressure)	1 x 10^-3 mbar / 1 x 10^-1 Pa
w/ gas ballast (partial pressure)	3 x 10^-2 mbar / 3 Pa
Inlet connection	NW25 (flange can be removed from 1 inch BSP threaded hole)
Outlet connection	5mm external diameter (nozzle can be removed from threaded hole)
Maximum permitted pressure at outlet	0.5 bar gauge 1.5 bar absolute 1.5 x 10⁵ Pa
Maximum inlet pressure for water vapour	15 mbar / 15 x 10² Pa
Maximum water vapour pumping rate	0.18 kgh^-1
Oil capacity - max	0.8 litre
Ambient operating temperature	+12 to +40°C
Noise level at 1 metre	52 dB

Specifications

Digital Manuals

Type	Label	Description	Download
	Edwards E2M2, E2M5, E2M8 & E2M12 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL E2M12 Two Stage Rotary Vane Vacuum Pump - REBUILT

Item No. A370-01-912 / A37001912  E2M12  220/240V 50Hz single-phase
Item No. A370-01-916 / A37001916  E2M12  220-240/380-420V 50Hz three-phase
         A370-03-981 / A37003981  E2M12  115/230V 60Hz 1-phase
         A370-03-982 / A37003982  E2M12  230/460V 60Hz 3-phase
         A370-01-934 / A37001934  E2M12  200V 50/60Hz 3-phase
         A370-02-920 / A37002920  E2M12  220V 50/60Hz 1-phase
