Edwards RV12 - NEW

Name: Edwards RV12 - NEW
Brand: Edwards
SKU: NEW_RV12

Be the first to review this product

Starting at $4,987

In stock

Only %1 left

SKU

NEW_RV12

Request For Quote

Weight	63.8 lbs
Motor Power	0.60 hp
Pumping Speed	12 m³/h
Ultimate Pressure	2 x 10^-3 mbar

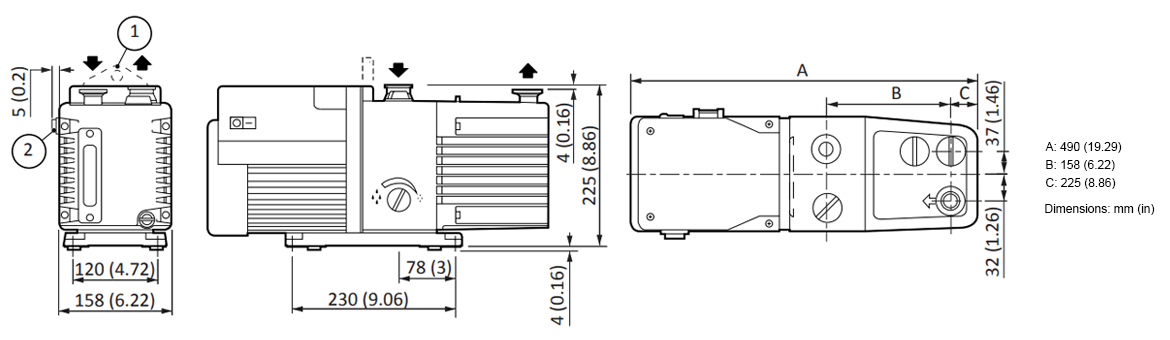

Dimensions

Description

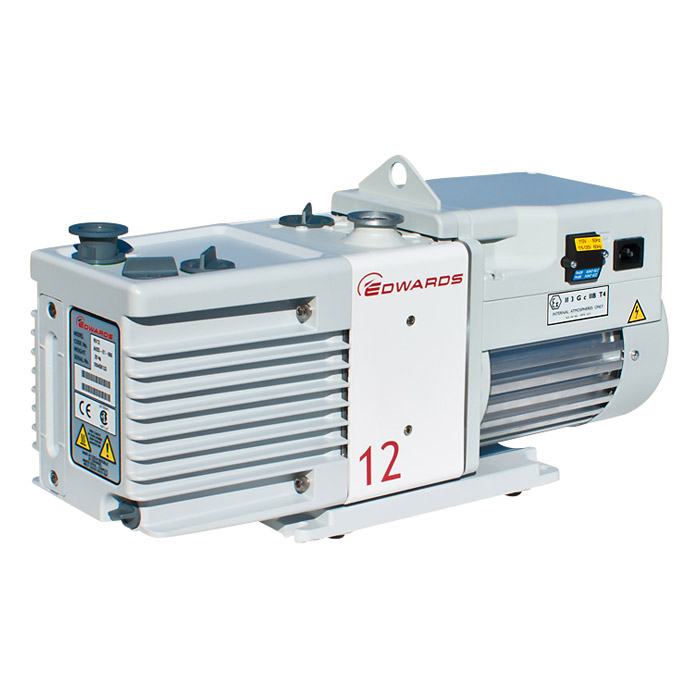

Edwards RV12 Two Stage Rotary Vane Vacuum Pump - NEW

Edwards RV pumps have become the industry standard for scientific primary pumping applications. RV pumps are uniquely capable of delivering high or low throughputs with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications. All pumps are approved to UL and CSA standards by an external test house. Edwards has a global network, providing world-wide support for product applications and service.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Displacement (swept volume)
50 Hz	14.2 m³h^-1 / 8.4 ft³min^-1
60 Hz	17 m³h^-1 / 10 ft³min^-1
Speed (Pneurop 6602)
50 Hz	12 m³h^-1 / 7.1 ft³min^-1
60 Hz	14.2 m³h^-1 / 8.4 ft³min^-1
Ultimate pressure	2.0 x 10^-3 mbar / 1.5 x 10^-3 Torr
Ultimate pressure GB I	3.0 x 10^-2 mbar / 2.3 x 10^-2 Torr
Ultimate pressure GB II	6.0 x 10^-1 mbar / 4.6 x 10^-2 Torr
Ultimate pressure w/ Fomblin®	2.0 x 10^-2 mbar / 1.5 x 10^-2 Torr
Maximum inlet pressure for water vapour	32 mbar / 24 Torr
Maximum water vapour pumping rate - GB I	60 gh^-1
Maximum water vapour pumping rate - GB II	220 gh^-1
Max allowed outlet pressure	0.2 bar gauge / 2.8 psig
Max allowed inlet and gas ballast pressure	0.5 bar gauge / 7 psig
Motor power 50/60Hz	450 / 550W
Power connector 1-phase	IEC EN60320 C13
Nominal rotation speed 50/60Hz	1,500 / 1,800 rpm
Weight (w/out oil)	29 kg / 63.8 lbs
Oil capacity min/max	0.65 / 1 litre
Inlet flange	NW25
Exhaust flange	NW25
Noise level	48 dB(A) @ 50 Hz
Recommended oil	Ultragrade 19
Operating temperature range	12 – 40°C

Specifications

Digital Manuals

Type	Label	Description	Download
	Edwards RV Series - REBUILT	Instruction manual	Download
	Edwards RV Series - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL RV12 Hydrocarbon Two Stage Rotary Vane Vacuum Pump - NEW

CODE No. A655-01-903 / A65501903  RV12  115/230V, single-phase, 50/60Hz, Factory set to 230V for Europe
CODE No. A655-01-906 / A65501906  RV12  115/230V, 1-phase, 50/60Hz, Factory set to 115V for USA
CODE No. A655-01-904 / A65501904  RV12  100/200V, 1-phase, 50/60Hz, Factory set to 200V for Japan
         A655-01-905 / A65501905  RV12  200-220/380-415V, three-phase, 50Hz and 200-230/460V, 3-phase, 60Hz, Factory set to 380/460V
         A655-09-903 / A65509903  RV12 PFPE  115/230V, 1-phase, 50/60Hz, Factory set to 230V for Europe
         A655-09-906 / A65509906  RV12 PFPE  Two Stage Rotary Vane Pump 115/230V 1-phase 50/60Hz, Factory set to 115V for USA
         A655-09-904 / A65509904  RV12 PFPE  100/200V, 1-phase, 50/60Hz, Factory set to 200V for Japan
         A655-09-905 / A65509905  RV12 PFPE  200-220/380-415V, 3-phase, 50Hz and 200-230/460V, 3-phase, 60Hz, Factory set to 380/460V

Atlas Copco GVD 12  1-phase 110-120V 50/60Hz
Atlas Copco GVD 12  1-phase 220-240V 50/60Hz
Atlas Copco GVD 12  3-phase 208-230/460V 50/60Hz
