Edwards E2M175 - NEW
Call for Price
In stock
SKU
NEW_E2M175
| Weight | 436.5 lbs |
|---|---|
| Motor Power | 5.5 hp |
| Pumping Speed | 160 m3/h |
| Ultimate Pressure | 3.0 x 10-3 Torr |

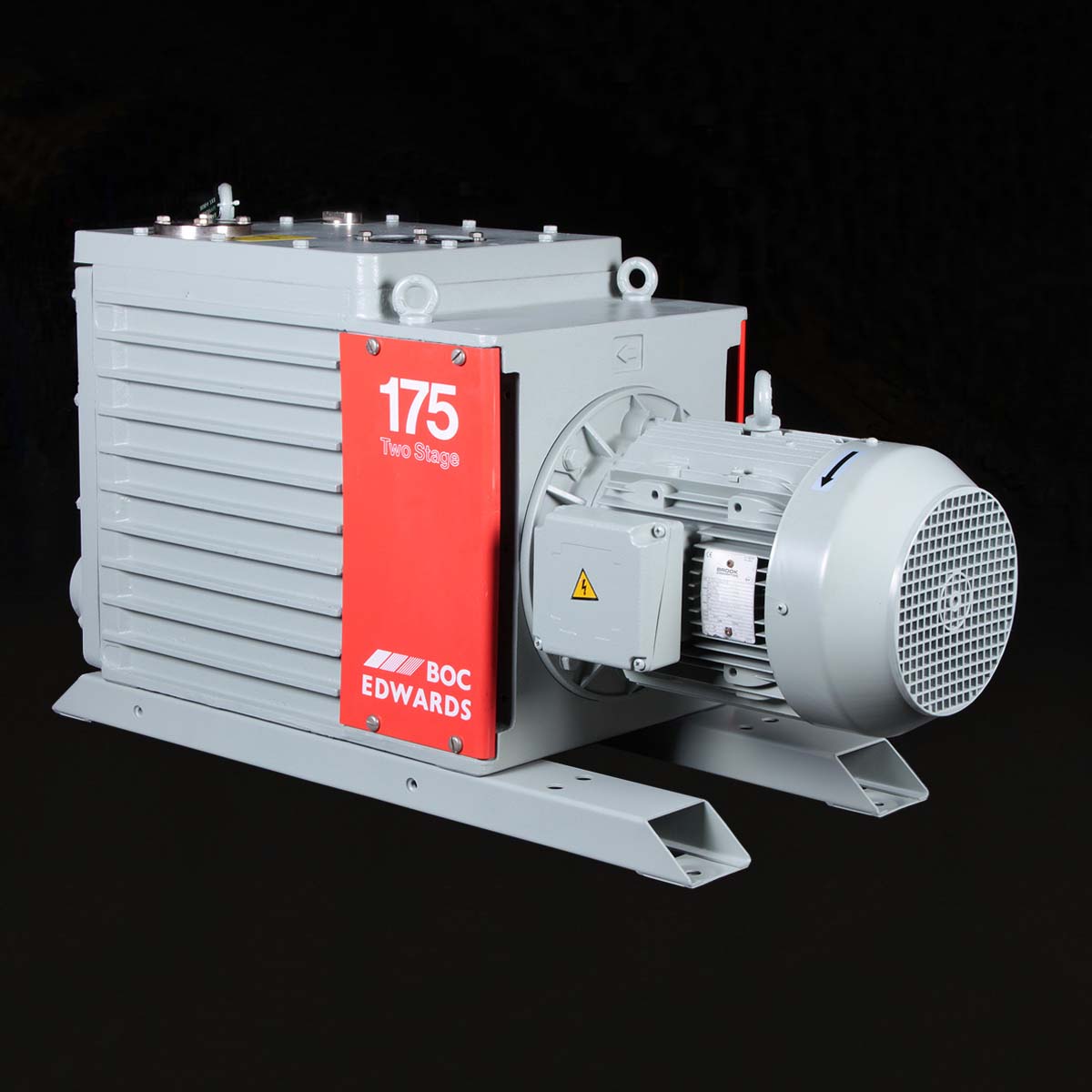

Edwards E2M175 Two Stage Rotary Vane Vacuum Pump - NEW
Edwards E2M series two stage oil sealed rotary vane vacuum pumps are renowned for their high ultimate vacuum, rapid pumping speeds, quiet operation and ability to handle water vapour. These direct drive rotary vane pumps are inherently compact and vibration free, and with their finger-proof fan and coupling housings they offer excellent operator protection.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 178 m3h-1 / 105 ft3min-1 |
| 60 Hz | 214 m3h-1 / 126 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50 Hz | 160 m3h-1 / 94 ft3min-1 |
| 60 Hz | 196 m3h-1 / 115 ft3min-1 |
| Number of stages | 2 |
| Ultimate vacuum | |
| w/out gas ballast (total pressure) | 1 x 10-3 mbar / 7.7 x 10-4 Torr |
| w/ gas ballast (partial pressure) | 5 x 10-3 mbar / 3.8 x 10-3 Torr |
| Ultimate w/ Fomblin® | |
| w/out gas ballast | 1 x 10-2 mbar / 7.7 x 10-3 Torr |
| Inlet connection | ISO63 blank flange with seal |
| Outlet connection | ISO40 flange centre tapped |
| Maximum permitted pressure at outlet | 0.5 bar gauge |
| Maximum inlet pressure for water vapour | 20 mbar / 15 Torr |
| Maximum water vapour pumping rate | 2.4 kg h-1 |
| Motor power | |
| 50 Hz | 5.5 kW / 7.5 hp |
| 60 Hz | 6.5 kW / 8.5 hp |
| Motor protection rating | IP55 |
| Weight | 198 kg / 436.5 lbs |
| Noise | 75 dB(A) @ 50 Hz |
| Standard oil capacity | |
| maximum | 25 litre |
| minimum | 16 litre |
| PFPE oil capacity | |
| maximum | 18 litre |
| minimum | 6.5 litre |
| Recommended oil | Ultragrade 70 |
| PFPE prepared version | Fomblin® Y06/6 |
| Type | Label | Description | Download |
|---|---|---|---|
|
BOC Edwards E1M175 - E2M275 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL E2M175 Two Stage Rotary Vane Vacuum Pump - NEW
CODE NO. A366-18-993 / A36618993 E2M175 T3 220-240/380-415V three-phase 50Hz
CODE NO. A366-04-940 / A36604940 E2M175 HC IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
CODE NO. A366-04-934 / A36604934 E2M175 HC IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
A366-17-934 / A36617934 E2M175 FX IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
A366-17-940 / A36617940 E2M175 FX IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
A366-07-934 / A36607934 E2M175 AZ IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
A366-07-940 / A36607940 E2M175 AZ IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
Atlas Copco GVD 175 3-phase 230/460V 50/60Hz
