Edwards E2M18 - NEW

Name: Edwards E2M18 - NEW
Brand: Edwards
SKU: NEW_E2M18

Be the first to review this product

Starting at $6,033

In stock

Only %1 left

SKU

NEW_E2M18

Request For Quote

Weight	86 lbs
Motor Power	1 hp
Pumping Speed	17 m³/h
Ultimate Pressure	7.4 x 10^-4 Torr

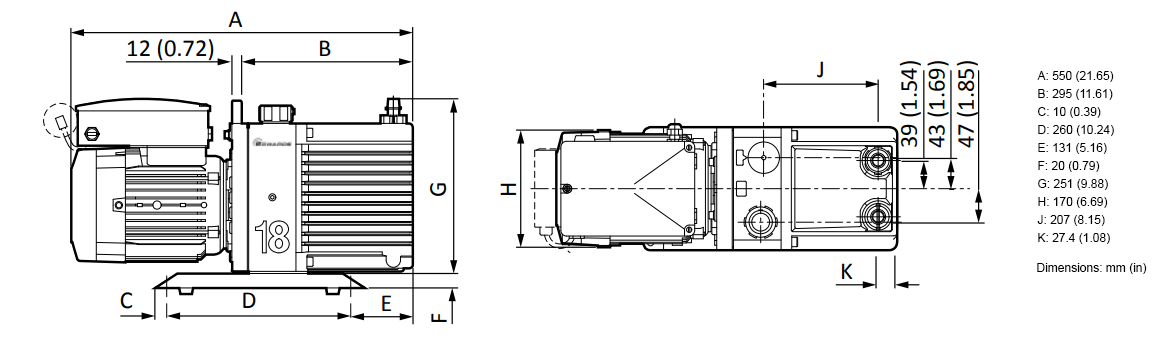

Dimensions

Description

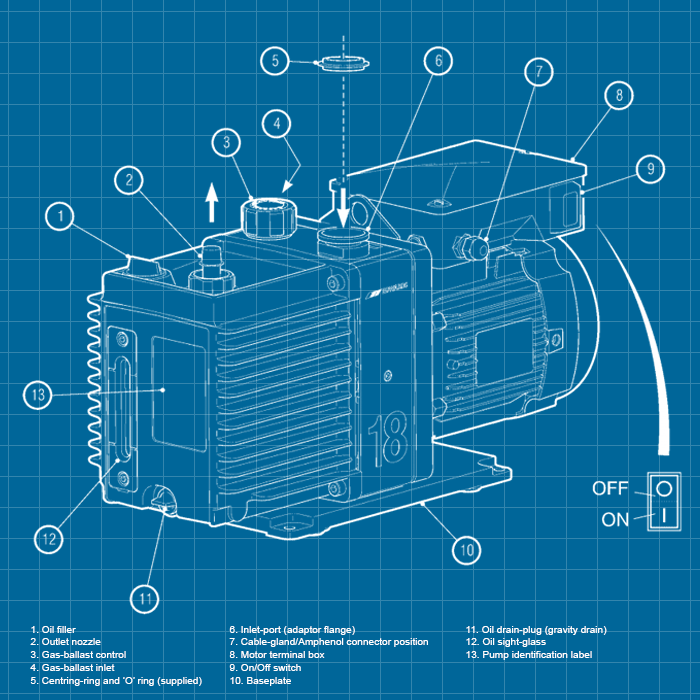

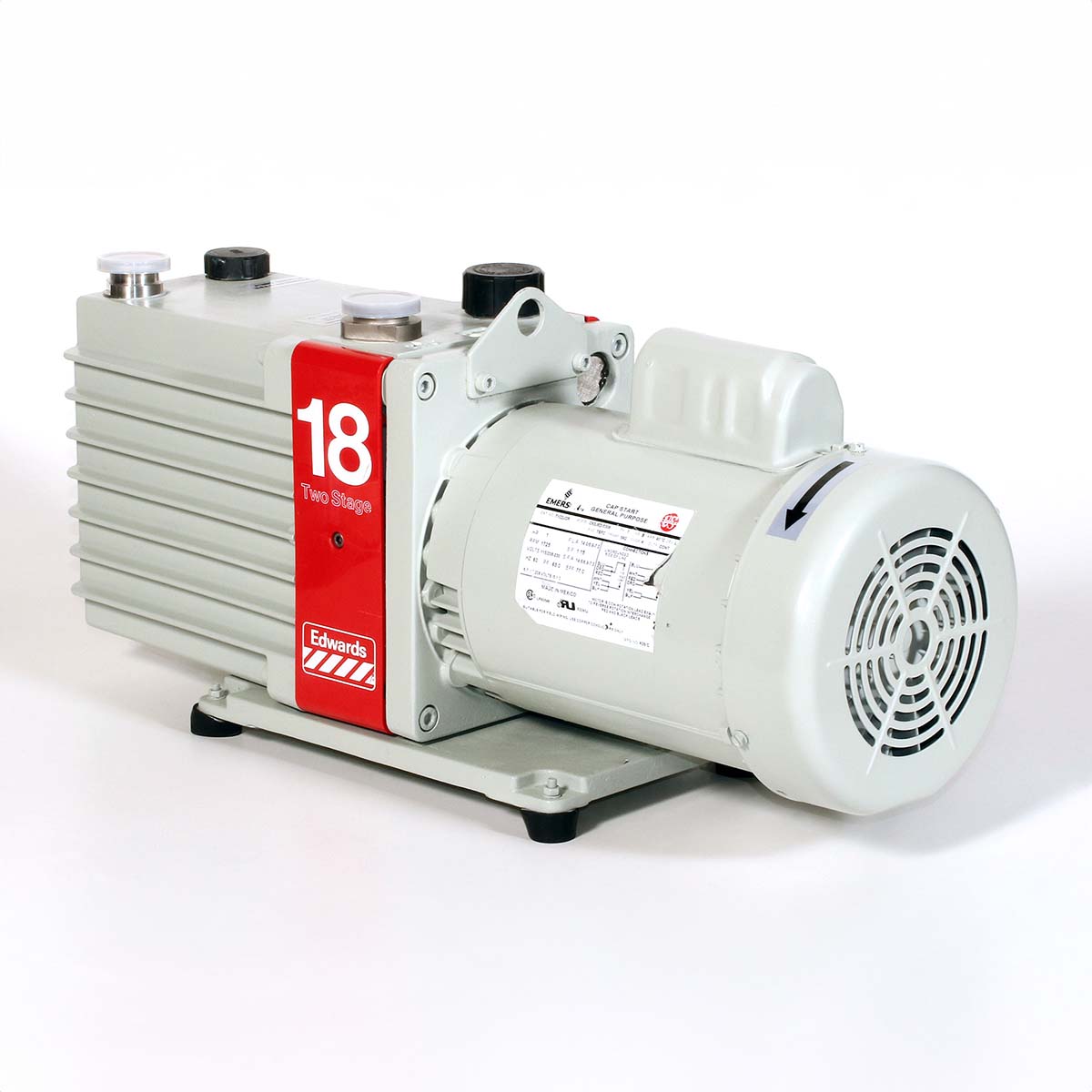

Edwards E2M18 Two Stage Rotary Vane Vacuum Pump - NEW

The EM range of oil-sealed rotary pumps – renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour – have become the industry standard for laboratory and light industrial applications. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single-phase or three-phase (four pole) motor.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Displacement (swept volume)
50 Hz	20.5 m³h^-1 / 12.1 ft³min^-1
60 Hz	25.0 m³h^-1 / 14.7 ft³min^-1
Speed (Pneurop 6602)
50 Hz	17.0 m³h^-1 / 10 ft³min^-1
60 Hz	20.4 m³h^-1 / 12.1 ft³min^-1
Ultimate vacuum (total pressure)
w/out gas purge	1 x 10^-3 mbar / 7.4 x 10^-4 Torr
w/ gas purge	1.5 x 10^-1 mbar / 1.1 x 10^-2 Torr
Inlet connection	NW25
Outlet connection	Nozzle 15 mm external diameter removable from 3/4" BSP tapped hole
Maximum permitted pressure at outlet	0.5 bar gauge / 7 psig
Maximum inlet pressure for water vapour	20 mbar / 15 Torr
Maximum water vapour pumping rate	0.3 kg h^-1
Motor power 50/60 Hz	0.55 kW / 0.75kW
Nominal rotational speed 50/60Hz	1,440/1,720 rpm
Power connector	IEC EN60320 C19
Operating temperature range	13 - 40°C
Weight	39 kg / 86 lbs
Noise	57 dB(A) @ 50 Hz
Oil capacity - maximum	1.05 litre
Oil capacity - minimum	0.75 litre
Recommended oil	Ultragrade 19

Digital Manuals

Type	Label	Description	Download
	Edwards E1M18 & E2M18 - REBUILT	Instruction Manual	Download
	Edwards E1M18 & E2M18 - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL E2M18 Two Stage Rotary Vane Vacuum Pump - NEW

CODE NO. A363-10-940 / A36310940  E2M18  200-230/460V 3-ph 60Hz
CODE NO. A363-15-904 / A36315904  E2M18  100-105/200-210V 1-phase 60Hz
CODE NO. A363-17-984 / A36317984  E2M18  115/200-230V 1-ph 50/60Hz w/ IEC60320 connector
