Edwards E2M18 - REBUILT

Name: Edwards E2M18 - REBUILT
Brand: Edwards
SKU: REBUILT_E2M18

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_E2M18

Request For Quote

Weight	86 lbs
Motor Power	0.75 hp
Pumping Speed	17 m³/h
Ultimate Pressure	1 x 10^-3 mbar

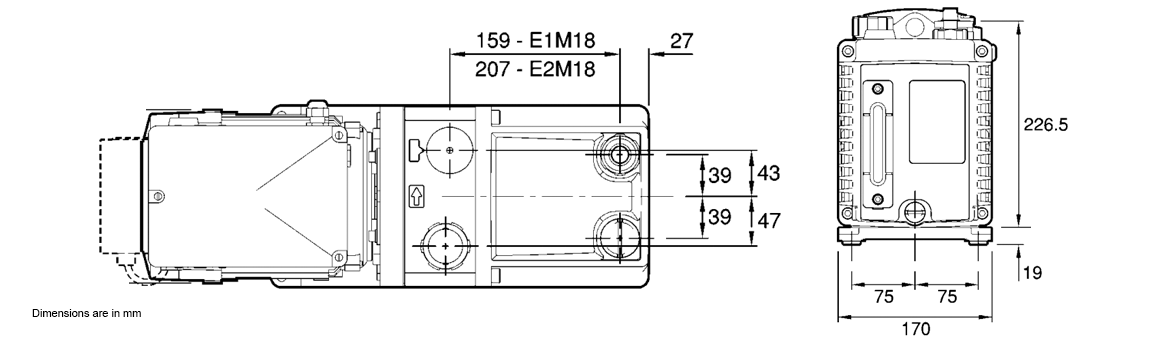

Dimensions

Description

Edwards E2M18 Two Stage Rotary Vane Vacuum Pump - REBUILT

The E2M18 pump is a two-stage, or one-stage direct drive, sliding vane pump. The pump is oil sealed and designed for reliable, long-term operation in both laboratory and industrial environments. The pump is a freestanding unit. The drive is provided through a flexible coupling by a single-phase or three-phase motor.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Displacement (swept volume)
50 Hz	20.5 m³h^-1 / 12.1 ft³min^-1
60 Hz	25.0 m³h^-1 / 14.7 ft³min^-1
Speed (Pneurop 6602)
50 Hz	17.0 m³h^-1 / 10 ft³min^-1
60 Hz	20.4 m³h^-1 / 12.1 ft³min^-1
Ultimate vacuum (total pressure)
w/out gas purge	1 x 10^-3 mbar / 7.4 x 10^-4 Torr
w/ gas purge	1.5 x 10^-1 mbar / 1.1 x 10^-2 Torr
Inlet connection	NW25
Outlet connection	Nozzle 15 mm external diameter removable from 3/4" BSP tapped hole
Maximum permitted pressure at outlet	0.5 bar gauge / 7 psig
Maximum inlet pressure for water vapour	20 mbar / 15 Torr
Maximum water vapour pumping rate	0.3 kg h^-1
Motor power 50/60 Hz	0.55 kW / 0.75kW
Nominal rotational speed 50/60Hz	1,440/1,720 rpm
Power connector	IEC EN60320 C19
Operating temperature range	13 - 40°C
Weight	39 kg / 86 lbs
Noise	57 dB(A) @ 50 Hz
Oil capacity - maximum	1.05 litre
Oil capacity - minimum	0.75 litre
Recommended oil	Ultragrade 19

Specifications

Digital Manuals

Type	Label	Description	Download
	BOC Edwards E1M18 & E2M18 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL E2M18 Two Stage Rotary Vane Vacuum Pump - REBUILT

CODE NO. A363-02-980 / A36302980  E2M18  115/230V 50/60Hz
CODE NO. A363-10-940 / A36310940  E2M18  200-230V/460V 60Hz 3-phase
CODE NO. A363-15-904 / A36315904  E2M18  100-105V/200-210V 60Hz 1-phase
         A363-17-984 / A36317984  E2M18  115V/200-230V 50/60Hz 1-phase IEC
         A363-21-940 / A36321940  E2M18FX  200-230V/460V 60Hz 3-phase
         A363-25-984 / A36325984  E2M18FX  115V/200-230V 50/60Hz 1-phase IEC
         A363-25-904 / A36325904  E2M18FX  100-105V/200-210V 60Hz 1-phase
         A363-24-904 / A36324904  E2M18  HP 100/200V 50/60Hz 1-phase
         A363-24-930 / A36324930  E2M18  220/240V 50/60Hz 1-phase
         A343-18-991 / A34318991
         A343-18-989 / A34318989
         A343-18-993 / A34318993
         A343-18-992 / A34318992
         A343-18-987 / A34318987
         A343-18-986 / A34318986
         A343-18-988 / A34318988
         A343-18-990 / A34318990
         A363-18-991 / A36318991
         A363-18-989 / A36318989
         A363-18-993 / A36318993
         A363-18-992 / A36318992
         A363-18-987 / A36318987
         A363-18-986 / A36318986
         A363-18-988 / A36318988
         A363-18-990 / A36318990
