Edwards E2M28 - REBUILT

Name: Edwards E2M28 - REBUILT
Brand: Edwards
SKU: REBUILT_E2M28

Be the first to review this product

$3,625

In stock

Only %1 left

SKU

REBUILT_E2M28

Request For Quote

Weight	97 lbs
Motor Power	1 hp
Pumping Speed	27.5 m³/h
Ultimate Pressure	1 x 10^-3 mbar

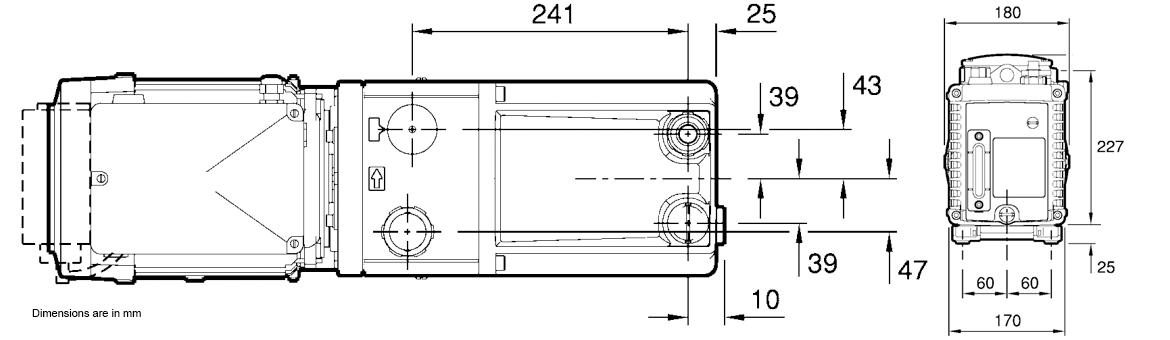

Dimensions

Description

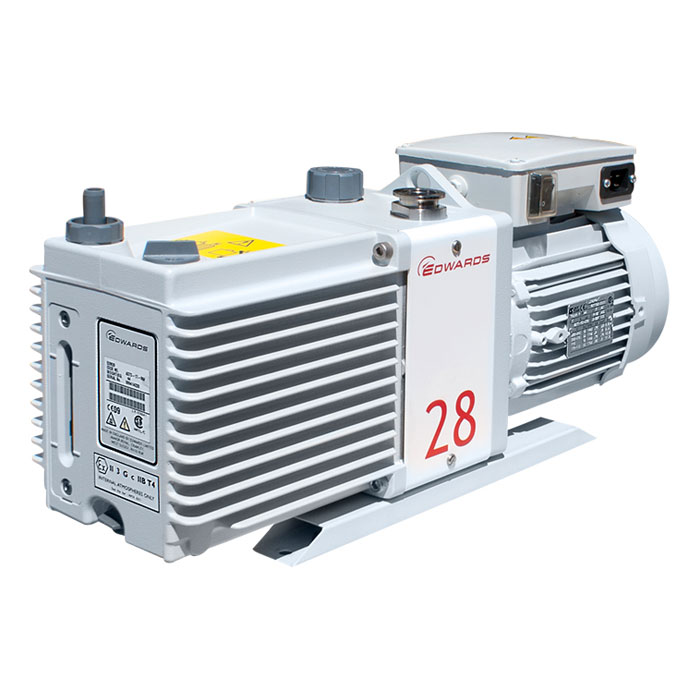

Edwards E2M28 Two Stage Rotary Vane Vacuum Pump - REBUILT

The Edwards E2M and E1M pumps are two stage, direct drive, sliding vane, oil sealed pumps. The drive is provided through a flexible coupling by a single or three phase air cooled motor. If the requested voltage is not in stock then we will purchase a new motor and split the cost with you. They run on various vacuum pump oils.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Displacement (swept volume)
50 Hz	32.2 m³h^-1 / 19 ft³min^-1
60 Hz	38.9 m³h^-1 / 22.3 ft³min^-1
Speed (Pneurop 6602)
50 Hz	27.5 m³h^-1 / 16.2 ft³min^-1
60 Hz	33.0 m³h^-1 / 19.5 ft³min^-1
Ultimate vacuum (total pressure)
w/out gas ballast	1 x 10^-3 mbar / 7.5 x 10^-4 Torr
w/ gas ballast	1.5 x 10^-2 mbar / 1.1 x 10^-2 Torr
w/ Fomblin®	1 x 10^-2 mbar / 7.5 x 10^-3 Torr
Inlet connection	NW25 flange
Outlet connection	Nozzle 15 mm external diameter removable from 3/4" BSP tapped hole
Maximum permitted pressure at outlet	0.5 bar gauge / 7 psig
Maximum inlet pressure for water vapour	30 mbar / 23 Torr
Maximum water vapour pumping rate	0.7 kg h^-1
Motor power 50/60 Hz	0.75 kW / 0.90 kW
Nominal rotational speed 50/60Hz	1,440/1,720 rpm
Power connector	IEC EN60320 C19
Operating temperature range	13 - 40°C
Weight	44 kg / 97 lbs
Noise	57 dB(A) @ 50 Hz
Oil capacity - maximum	1.5 litre
Oil capacity - minimum	1.2 litre
Recommended oil	Ultragrade 19

Specifications

Digital Manuals

Type	Label	Description	Download
	BOC Edwards E2M28 & E2M30 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL E2M28 Two Stage Rotary Vane Vacuum Pump - REBUILT

CODE NO. A373-10-940 / A37310940  E2M28  universal three-phase
CODE NO. A373-15-903 / A37315903  E2M28  220-240V 50/60Hz single-phase
CODE NO. A373-16-903 / A37316903  E2M28  220-240V 50/60Hz 1-phase
         A373-17-984 / A37317984  E2M28  115/200-230V 50/60Hz
         A373-24-904 / A37324904  E2M28  100/200V 50/60Hz 1-phase Agilent
