Edwards E2M30 - REBUILT
Call for Price
In stock
SKU
REBUILT_E2M30
| Weight | 97 lbs |
|---|---|
| Motor Power | 1 hp |
| Pumping Speed | 19.4 cfm |
| Ultimate Pressure | 7 x 10-4 Torr |

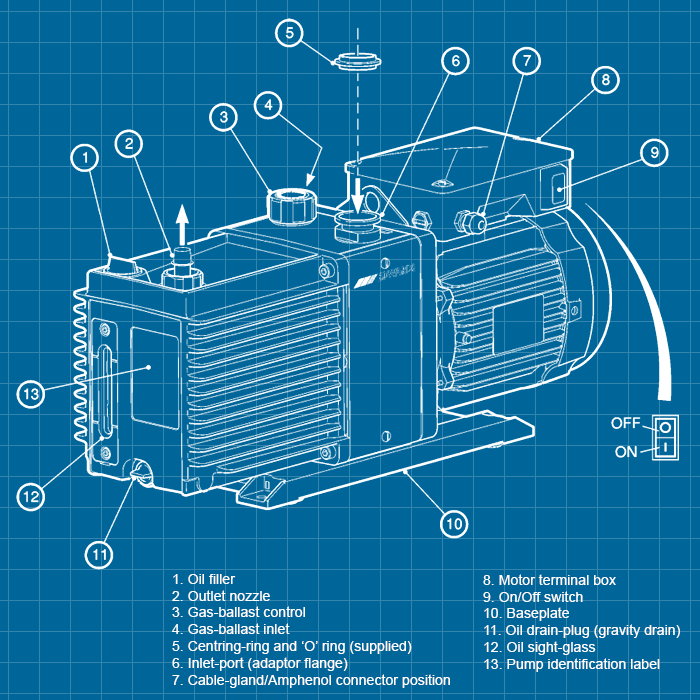

Edwards E2M30 Two Stage Rotary Vane Vacuum Pump - REBUILT
We are offering special pricing on the E2M28 and E2M30 208V models while supplies last. The Edwards E2M and E1M pumps are two stage, direct drive, sliding vane, oil sealed pumps. The drive is provided through a flexible coupling by a single or three phase air cooled motor. If the requested voltage is not in stock then we will purchase a new motor and split the cost with you. They run on various vacuum pump oils.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 32.2 m3h-1 / 19 ft3min-1 |
| 60 Hz | 38.9 m3h-1 / 22.3 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50 Hz | 27.5 m3h-1 / 16.2 ft3min-1 |
| 60 Hz | 33.0 m3h-1 / 19.5 ft3min-1 |
| Ultimate vacuum (total pressure) | |
| w/out gas ballast | 1 x 10-3 mbar / 7.5 x 10-4 Torr |
| w/ gas ballast | 1.5 x 10-2 mbar / 1.1 x 10-2 Torr |
| w/ Fomblin® | 1 x 10-2 mbar / 7.5 x 10-3 Torr |
| Inlet connection | NW25 flange |
| Outlet connection | Nozzle 15 mm external diameter removable from 3/4" BSP tapped hole |
| Maximum permitted pressure at outlet | 0.5 bar gauge / 7 psig |
| Maximum inlet pressure for water vapour | 30 mbar / 23 Torr |
| Maximum water vapour pumping rate | 0.7 kg h-1 |
| Motor power 50/60 Hz | 0.75 kW / 0.90 kW |
| Nominal rotational speed 50/60Hz | 1,440/1,720 rpm |
| Power connector | IEC EN60320 C19 |
| Operating temperature range | 13 - 40°C |
| Weight | 44 kg / 97 lbs |
| Noise | 57 dB(A) @ 50 Hz |
| Oil capacity - maximum | 1.5 litre |
| Oil capacity - minimum | 1.2 litre |
| Recommended oil | Ultragrade 19 |
| Type | Label | Description | Download |
|---|---|---|---|
|
BOC Edwards E2M28 & E2M30 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL E2M30 Two Stage Rotary Vane Vacuum Pump - REBUILT
CODE NO. A374-15-901 / A37415901 E2M30 100/200V 50Hz
CODE NO. A374-15-981 / A37415981 E2M30 115/230V 60Hz single-phase
CODE NO. A374-01-982 / A37401982 E2M30 230/460V 3-phase 60Hz
A374-15-903 / A37415903 E2M30 200-240V 50Hz or 230-240V 60Hz 1-phase
A374-15-940 / A37415940 E2M30 200-230V/460V 60Hz three-phase
A374-15-904 / A37415904 E2M30 100/200V 50Hz or 100-105/200-210V 60Hz single-phase
A374-10-940 / A37410940 E2M30 200-220/380-415V 50Hz or 200-230/460V 60Hz three-phase
