Edwards E2M40 - REBUILT
Call for Price
In stock
SKU
REBUILT_E2M40
| Weight | 165.5 lbs |
|---|---|
| Motor Power | 1.5 hp |
| Pumping Speed | 37 m3/h |
| Ultimate Pressure | 3 x 10-3 mbar |

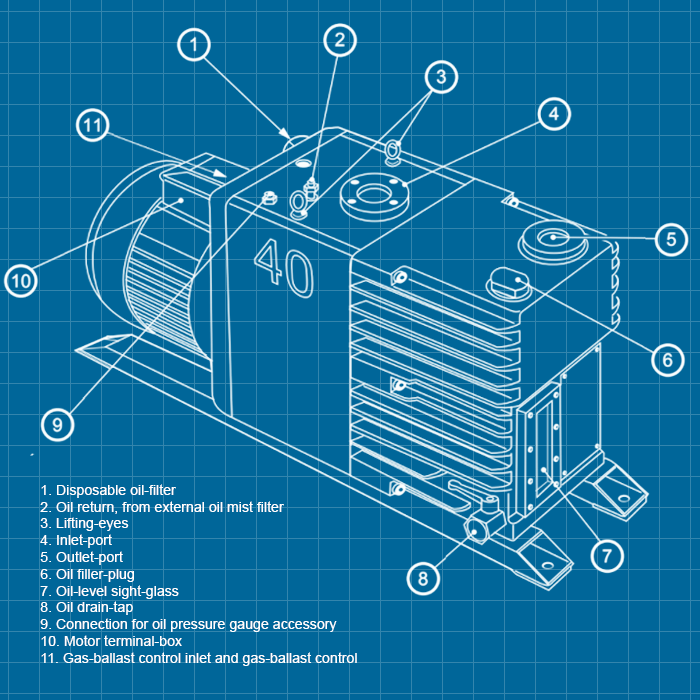

Edwards E2M40 Two Stage Rotary Vane Vacuum Pump - REBUILT
We are offering special pricing on the E2M40 model while supplies last. The Edwards E2M and E1M pumps are two stage, direct drive, sliding vane, oil sealed pumps. The drive is provided through a flexible coupling by a single or three phase air cooled motor. If the requested voltage is not in stock then we will purchase a new motor and split the cost with you. They run on various vacuum pump oils.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 42.5 m3h-1 / 25 ft3min-1 |
| 60 Hz | 50.5 m3h-1 / 29.7 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50 Hz | 37 m3h-1 / 21.8 ft3min-1 |
| 60 Hz | 44 m3h-1 / 25.9 ft3min-1 |
| Number of stages | 2 |
| Ultimate vacuum | |
| w/out gas ballast (total pressure) | 1 x 10-3 mbar / 7.5 x 10-4 Torr |
| w/ gas ballast (partial pressure) | 1.5 x 10-2 mbar / 1.1 x 10-2 Torr |
| Ultimate with Fomblin® | |
| w/out gas ballast | 1 x 10-2 mbar / 7.7 x 10-3 Torr |
| Inlet connection | ISO40 |
| Outlet connection | 25 mm flange suitable for NW25 |
| Maximum permitted pressure at outlet | 0.5 bar gauge |
| Maximum inlet pressure for water vapour | 7 mbar / 5.3 Torr |
| Maximum water vapour pumping rate | 0.2 kg h-1, 0.4 lb h-1 |
| Motor power | |
| 50 Hz | 1.1 kW / 1.5 hp |
| 60 Hz | 1.5 kW / 2 hp |
| Motor protection rating | IP55 |
| Weight | 75 kg / 165 lbs |
| Noise | 65 dB(A) @ 50 Hz |
| Standard & PFPE oil capacity | |
| maximum | 4 litre |
| minimum | 2.2 litre |
| Recommended oil | Ultragrade 70 |
| PFPE prepared version | Fomblin® Y06/6 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards E1M & E2M - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL E2M40 Two Stage Rotary Vane Vacuum Pump - REBUILT
CODE NO. A364-02-982 / A36402982 E2M40 230/460V 3-phase 60Hz
CODE NO. A364-12-982 / A36412982 E2M40 230/460V 3-phase 60Hz fomblin
CODE NO. A364-18-993 / A36418993 E2M40T4 400V 50Hz three-phase
A364-04-940 / A36404940 E2M40HC IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
A364-04-934 / A36404934 E2M40HC IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
A364-17-934 / A36417934 E2M40FX IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
A364-17-940 / A36417940 E2M40FX IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
A364-07-934 / A36407934 E2M40AZ IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
A364-07-940 / A36407940 E2M40AZ IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
