Edwards EH-4200 - REBUILT
Call for Price
In stock
SKU
REBUILT_EH4200
| Weight | 1,058 lbs |
|---|---|
| Motor Power | 15 hp |
| Pumping Speed | 3,100 m3/h |
| Ultimate Pressure | 7.60 x 102 Torr |

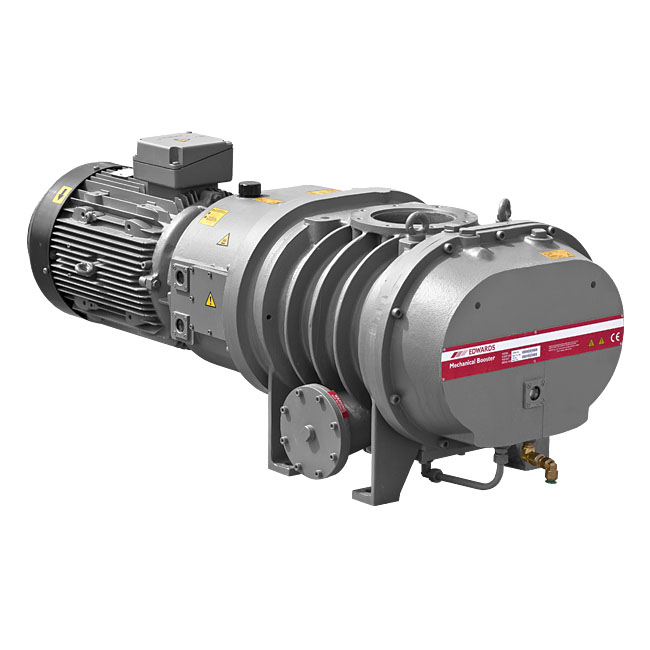

Edwards EH-4200 Mechanical Vacuum Blower - REBUILT
Rebuilt with one year warranty. View our inventory of Edwards blowers.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 4,140 m3h-1 / 2,440 ft3min-1 |
| 60 Hz | 4,985 m3h-1 / 2,935 ft3min-1 |
| Effective pumping speed with backing pump | |
| E2M275 | 3,100 m3h-1 / 1,825 ft3min-1 |
| Pressure differential across pump | |
| 50 Hz | |
| HC | 70 mbar / 52 Torr |
| FX | 60 mbar / 46 Torr |
| 60 Hz | |
| HC / FX | 60 mbar / 38 Torr |

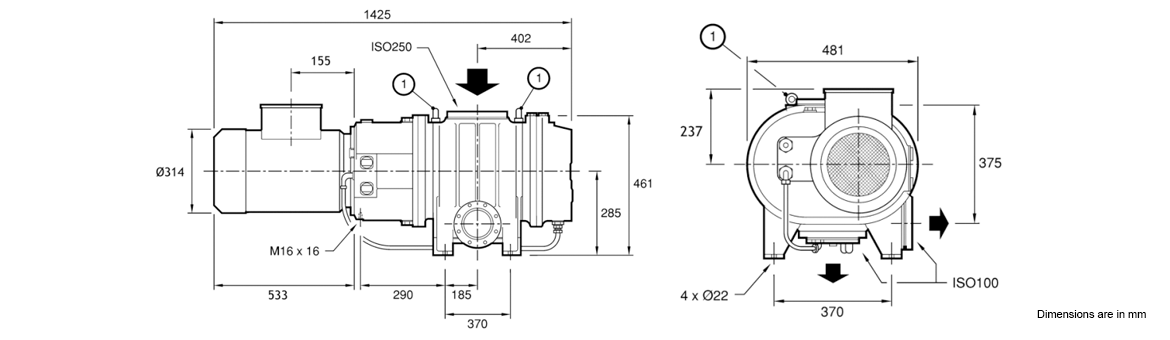

| Inlet connection | ISO250 |
| Outlet connection | ISO100 |
| Rotating speed | |
| 50 Hz | 2,900 rpm |
| 60 Hz | 3,500 rpm |
| Operating continuous inlet pressure | 1,000 mbar / 760 Torr |
| Maximum outlet pressure | 1,000 mbar / 760 Torr |
| Recommended backing pumps | GXS450, E2M275, ES300, ES630, 412J, IDX1000, IDX1300 |
| Motor power | |
| Hydrocarbon | 11 kW / 15 hp |
| PFPE | 11 kW / 15 hp |
| ATEX | 11 kW / 15 hp |
| Ambient temp. range | |
| Operating | 5 to 40°C / 40 to 104°F |
| Storage | -20 to 80°C / 14 to 176°F |
| Max. operating humidity | 90% RH |
| Recommended cooling water supply pressure | 2-6 barg |
| Cooling water connections | 3/8 inch BSP male |
| Recommended cooling water flow | 6 l/min-1 |
| Recommended oil | |
| Standard version | Ultragrade 20 |
| PFPE version | Fomblin YVAC 16/6 |
| Oil capacity | |
| Coupling cover | 6.5 l |
| Shaft seal reservoir | 0.45 l |
| Gear case | 3.5 litre |
| Weight | 485 kg / 1,067 lb |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards EH Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards EH-4200 Mechanical Vacuum Blower - REBUILT A30951935 / A309-51-935 EH-4200 A30953935 / A309-53-935 EH-4200 50Hz PFPE, 220-240V or 380-415V, three-phase, 7.5kW A30952936 / A309-52-936 EH-4200 A30975946 / A309-75-946 EH-4200 50Hz Industrial, 380-415V, 3-phase, 11kW A30976982 / A309-76-982 EH-4200 60Hz Industrial, 208-230V or 460V, 3-phase, 11kW A30956982 / A309-56-982 EH-4200 60Hz Chemical, 230V or 460V, 3-phase, 11kW A30979900 / A309-79-900 EH-4200 50Hz Chemical, 380-415V, 3-phase, 11kW A30941935 / A309-41-935 EH-4200 50Hz Chemical, 380-415V, 3-phase, 11kW
