Edwards EH-2600 - REBUILT

Name: Edwards EH-2600 - REBUILT
Brand: Edwards
SKU: REBUILT_EH2600

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_EH2600

Request For Quote

Weight	882 lbs
Motor Power	15 hp
Pumping Speed	1,900 m³/h
Ultimate Pressure	7.6 x 10² Torr

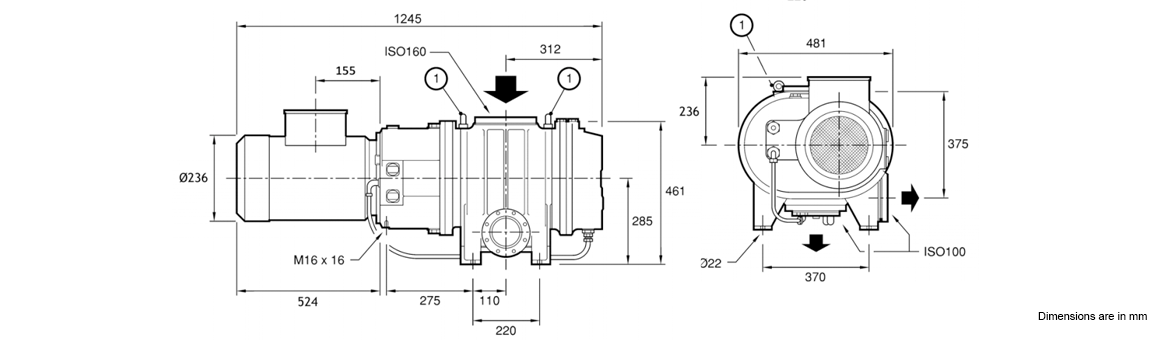

Dimensions

Description

Edwards EH-2600 Mechanical Vacuum Blower - REBUILT

Rebuilt with and tested with Fomblin oil. Let us know if you need it prepped for hydrocarbon. Shipped with one year warranty. View our inventory of Edwards blowers.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Displacement (swept volume)
50 Hz	2,590 m³h^-1 / 1,525 ft³min^-1
60 Hz	3,110 m³h^-1 / 1,830 ft³min^-1
Effective pumping speed with backing pump
E2M175	1,750 m³h^-1 / 1,031 ft³min^-1
E2M275	1,900 m³h^-1 / 1,119 ft³min^-1
Pressure differential across pump
50 Hz	120 mbar / 90 Torr
60 Hz	67 mbar / 50 Torr
Inlet connection	ISO160
Outlet connection	ISO100
Rotating speed
50 Hz	2,900 rpm
60 Hz	3,500 rpm
Operating continuous inlet pressure	1,000 mbar / 760 Torr
Maximum outlet pressure	1,000 mbar / 760 Torr
Recommended backing pumps	GXS250, GXS400, E2M175, E2M275, ES300, ES630, 412J, IDX1000, IDX1300
Motor power
Hydrocarbon	11 kW / 15 hp
PFPE	11 kW / 15 hp
ATEX	11 kW / 15 hp
Explosion proof	11 kW / 15 hp
Ambient temp. range
Operating	5 to 40°C / 40 to 104°F
Storage	-20 to 80°C / 14 to 176°F
Max. operating humidity	90% RH
Recommended oil
Standard version	Ultragrade 20
PFPE version	Fomblin YVAC 16/6
Oil capacity
Gear case	3.5 l
Shaft seal reservoir	6.5 l
Weight	405 kg / 891 lb

Specifications

Digital Manuals

Type	Label	Description	Download
	Edwards EH Series - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards EH-2600 Mechanical Vacuum Blower - REBUILT

A30776982R  EH-2600  60Hz Industrial, 230V or 460V, 3-phase, 11kW

A30751935 / A307-51-935  EH-2600  50Hz Standard, 220-240V or 380-415V, three-phase, 7.5kW
A30753935 / A307-53-935  EH-2600  50Hz PFPE, 220-240V or 380-415V, 3-phase, 7.5kW
A30752936 / A307-52-936  EH-2600  60Hz Standard, 208-230V or 460V, 3-phase, 7.5kW
A30754936 / A307-54-936  EH-2600  60Hz PFPE, 208-230V or 460V, 3-phase, 7.5kW
A30775946 / A307-75-946  EH-2600  50Hz Industrial, 380-415V, 3-phase, 11kW
A30776982 / A307-76-982  EH-2600  60Hz Industrial, 230V or 460V, 3-phase, 11kW
A30756982 / A307-56-982  EH-2600  60Hz Chemical, 230V or 460V, 3-phase, 11kW
A30779900 / A307-79-900  EH-2600  50Hz Chemical, 380-415V, 3-phase, 11kW
A30741935 / A307-41-935  EH-2600  50Hz Chemical, 380-415V, 3-phase, 11kW
