Edwards EH2600 - NEW
Weight
882 lbs
Motor Power
15 hp
Pumping Speed
1,900 m3 /h
Ultimate Pressure
7.6 x 102 Torr
Edwards EH2600 Mechanical Booster Vacuum Pump - NEW
The EH mechanical booster pump, based on the simple Roots principle, remains the favourite pump for applications where high pumping speeds are required for pressures in the region of 0.01 to 10 mbar. This pump must always be backed by another pump, which can deliver against a high-pressure differential to atmospheric pressure.
Questions? send an email to our sales team!
Displacement (swept volume)
50 Hz
2,590 m3 h-1 / 1,525 ft3 min-1
60 Hz
3,110 m3 h-1 / 1,830 ft3 min-1
Effective pumping speed with backing pump
E2M175
1,750 m3 h-1 / 1,031 ft3 min-1
E2M275
1,900 m3 h-1 / 1,119 ft3 min-1
Pressure differential across pump
50 Hz
120 mbar / 90 Torr
60 Hz
67 mbar / 50 Torr

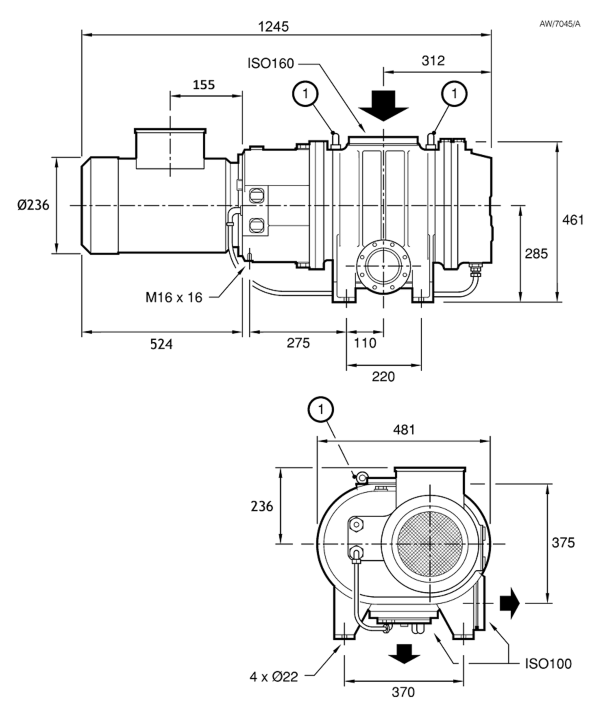

Inlet connection
ISO160
Outlet connection
ISO100
Rotating speed
50 Hz
2,900 rpm
60 Hz
3,500 rpm
Operating continuous inlet pressure
1,000 mbar / 760 Torr
Maximum outlet pressure
1,000 mbar / 760 Torr
Recommended backing pumps
GXS250, GXS400, E2M175, E2M275, ES300, ES630, 412J, IDX1000, IDX1300
Motor power
Hydrocarbon
11 kW / 15 hp
PFPE
11 kW / 15 hp
ATEX
11 kW
Explosion proof
15 hp
Ambient temp. range
Operating
5 to 40°C / 40t o 104°F
Storage
-20 to 80°C / 14 to 176°F
Max. operating humidity
90% RH
Recommended oil
Standard version
Ultragrade 20
PFPE version
Fomblin YVAC 16/6
Oil capacity
Gear case
3.5 l
Shaft seal reservoir
6.5 l
Weight
401 kg /882 lb
Specifications
Type
Label
Description
Download
Edwards EH Series - NEW
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards EH2600 Mechanical Booster Vacuum Pump - NEW
A30741935 / A307-41-935 EH2600T3 380-415V 3-phase 50Hz 11kW
A30756982 / A307-56-982 EH2600C 230/460V 3-phase 60Hz 15 hp
A30779900 / A307-79-900 EH2600T4 380-415V 3-phase 50Hz 11kW
A30705934 / A307-05-934 EH2600HC IE3 Asia 50Hz 200V
A30705945 / A307-05-945 EH2600HC IE3 EU/CN 50Hz 380-400V
A30706934 / A307-06-934 EH2600HC IE3 Asia 60Hz 200V, 380V
A30706946 / A307-06-946 EH2600HC IE3 US 60Hz 230/460V
A30707934 / A307-07-934 EH2600FX IE3 Asia 50Hz 200V
A30707945 / A307-07-945 EH2600FX IE3 EU/CN 50Hz 380-400V
A30708934 / A307-08-934 EH2600FX IE3 Asia 60Hz 200V, 380V
A30708946 / A307-08-946 EH2600FX IE3 US 60Hz 230/460V
A30753935 / A307-53-935 EH2600FX 380-415V 3-phase 50Hz 11kW
A30754936 / A307-54-936 EH2600FX 230/460V 3-phase 60Hz 15 hp
A30775946 / A307-75-946 EH2600IND 380-415V 3-phase 50Hz 11kW
A30776982 / A307-76-982 EH2600IND 230/460V 3-phase 60Hz 15 hp
A30754934 / A307-54-934 EH2600IND 200V 3-phase 60Hz 15 hp
A30753934 / A307-53-934 EH2600IND 200V 3-phase 50Hz 11kW
Atlas Copco ZRS2600 3-phase 230/460V 60Hz
