Edwards ESDP12 - REBUILT
Weight
55 lbs
Motor Power
0.5 hp
Pumping Speed
12.5 m3 /h
Ultimate Pressure
1.6 x 10-2 mbar

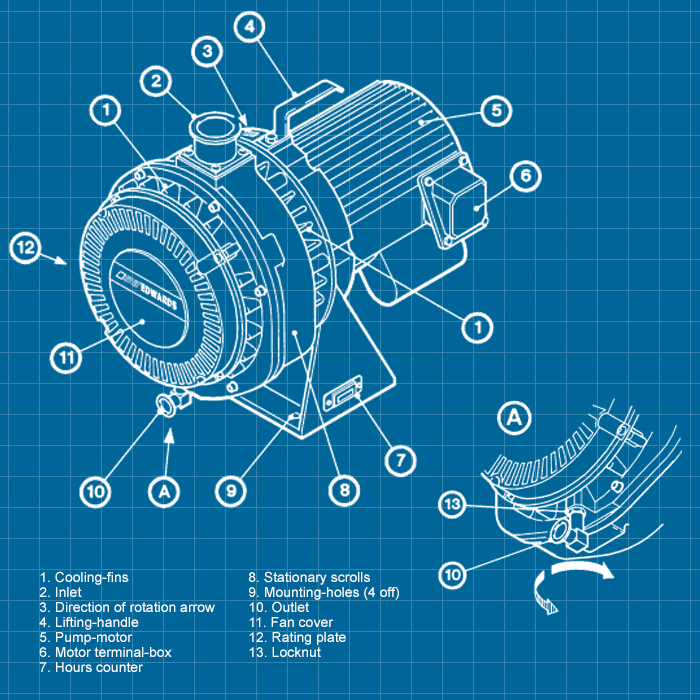

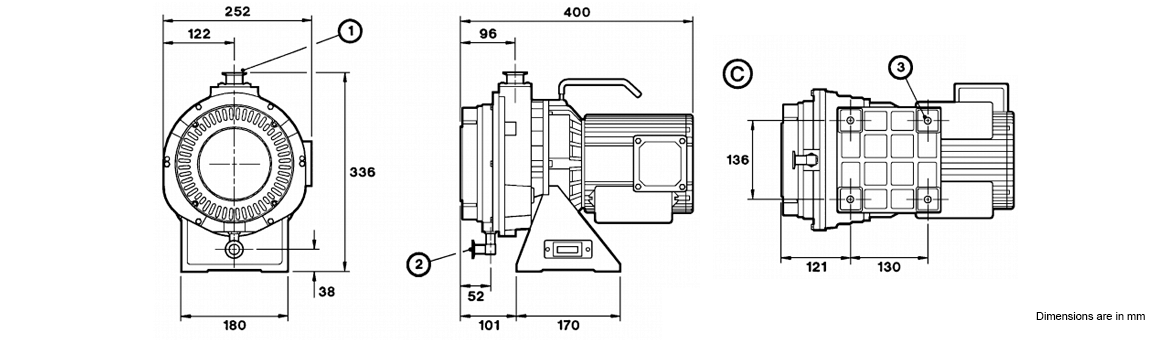

Edwards ESDP12 Dry Scroll Vacuum Pump - REBUILT
Rebuilt with a one year warranty. Edwards ESDP12 Dry Scroll Vacuum Pump. View our inventory of Edwards scroll pumps . We also offer repair service .
Questions? send an email to our sales team!
Displacement (swept volume)
50 Hz: 15 m3 h-1 / 8.8 ft3 min-1 3 h-1 / 10.6 ft3 min-1
Peak pumping speed
50 Hz: 12.5 m3 h-1 / 7.3 ft3 min-1 3 h-1 / 8.8 ft3 min-1
Ultimate total vacuum
1.6 x 10-2 mbar / 1 x 10-2 Torr
Inlet connection
NW25
Outlet connection
NW16
Motor power
0.4 kW
Electrical supply 1-phase
Enclosure rating
IP44
Leak tightness (static)
10-4 mbar l/s
Noise level (at 1 metre)
58 dB(A)
Vibration
1.5 mms-1
Operating temperature range
5 to 40°C / 41 to 104°F
Weight
Specifications
Type
Label
Description
Download
BOC Edwards ESDP12 & ESDP30 - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
BOC Edwards ESDP12 Dry Scroll Vacuum Pump - REBUILT
A71002909 / A710-02-909
The ESDP is the oldest ANEST IWATA "A" series pump. The FS1, FS2 and OS plates are not interchangeable with the current "C" series pumps.
If these oldest pumps have damaged plates then they are not rebuildable.
