Varian TriScroll 300DS - REBUILT

Name: Varian TriScroll 300DS - REBUILT
Brand: Agilent Varian
SKU: REBUILT_300DS

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_300DS

Request For Quote

Weight	60 lbs
Motor Power	0.53 hp
Pumping Speed	8.8 cfm
Ultimate Pressure	1.2 x 10^-2 torr

Dimensions

Description

Varian 300DS Dry Scroll Vacuum Pump - REBUILT

Rebuilt Varian scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Free air displacement	50 Hz: 300 l/m, (10.6 cfm) 60 Hz: 250 l/m, (8.8 cfm)
Pumping speed	50 Hz: 250 l/m, (8.8 cfm) 60 Hz: 210 l/m, (7.4 cfm)
Ultimate pressure	≤ 1.2 E^-2 Torr (≤ 1.6 E^-2 mbar)
Inlet connection	NW25
Exhaust connection	NW16
Motor rating	0.53 hp (0.4 kW)
Operating voltages	1-phase / 50-60 Hz: 100/115/200/230 VAC
Noise level (at 1 meter)	≤ 58 dB(A)
Ambient operating temperature	5°C to 40°C (41°F to 104°F)

Specifications

Digital Manuals

Type	Label	Description	Download

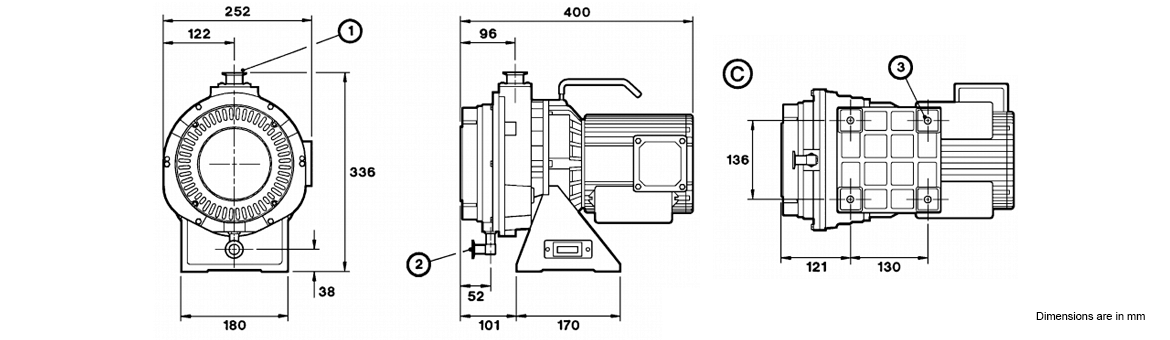

	BOC Edwards ESDP12 & ESDP30 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Varian 300DS Dry Scroll Vacuum Pump - REBUILT

300DS1UNIV

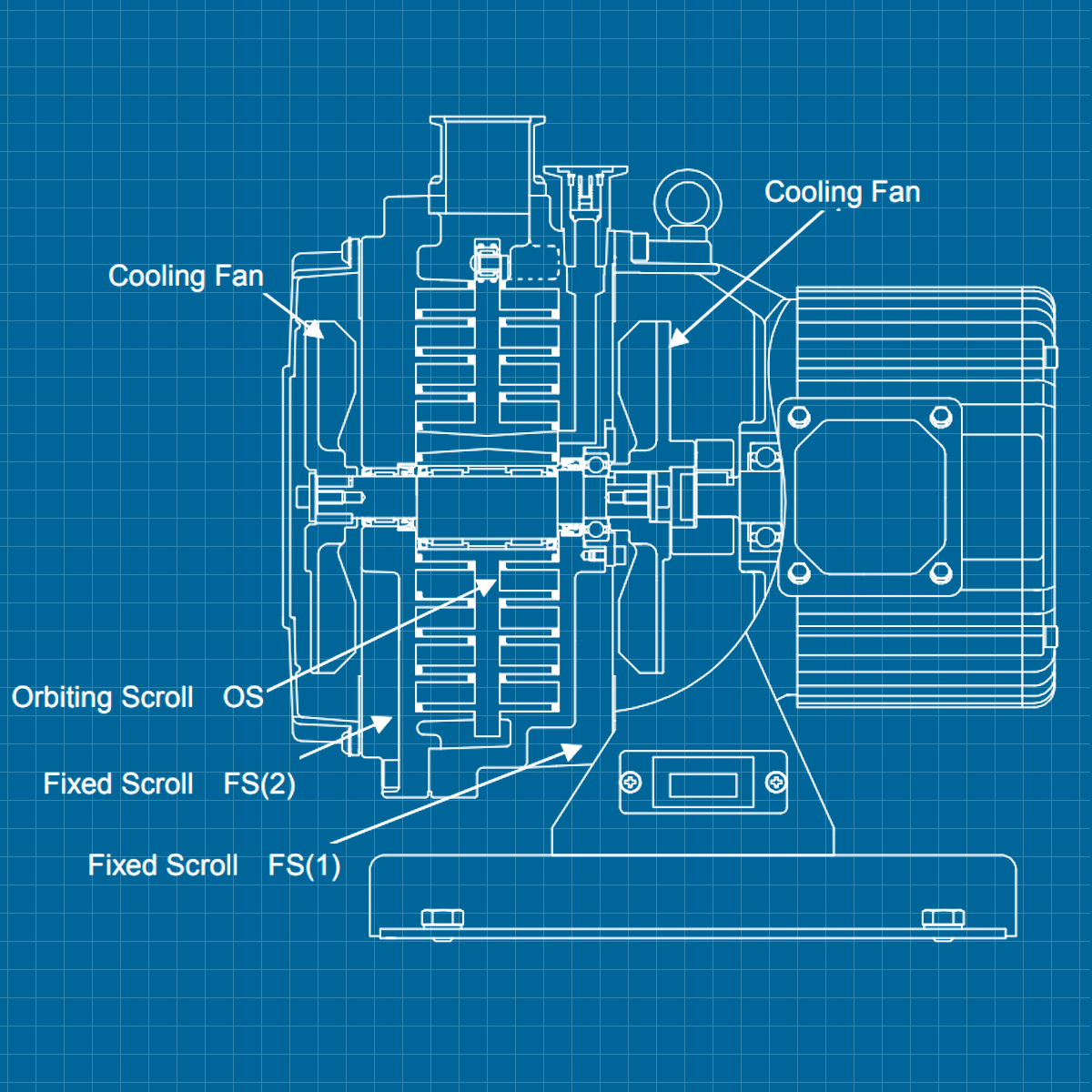

The DS is the oldest ANEST IWATA "A" series pump. The FS1, FS2 and OS plates are not interchangeable with the current "C" series pumps.
If these oldest pumps have damaged plates then they are not rebuildable.
