Edwards GV250 / EH1200 - REBUILT
Weight
1978 lbs
Pumping Speed
250 m3 /h
Ultimate Pressure
4 x 10-2 mbar
Edwards GV250 / EH1200 Vacuum Blower System - REBUILT
Rebuilt with one year warranty. Edwards EH1200 vacuum blower and GV250 dry pump package. We also offer repair service . View our inventory of Edwards blowers and DRYSTAR pumps .
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

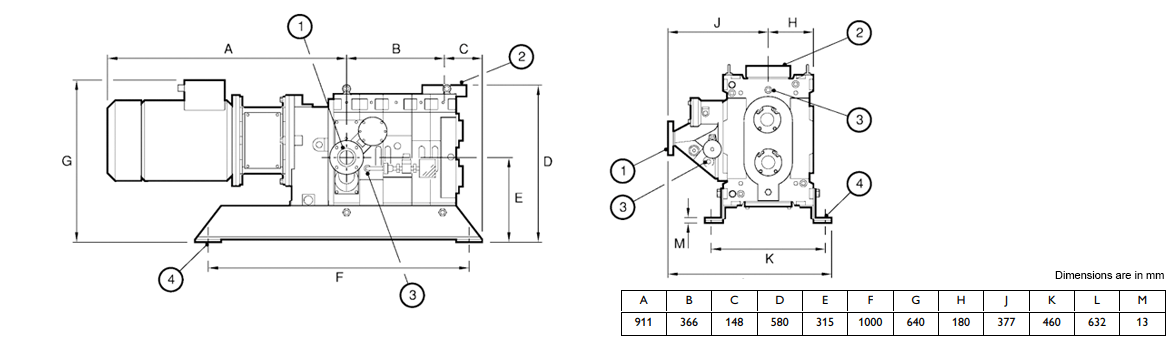

Specifications
GV250
Construction
3 claw
Displacement
341 m3 h-1 / 200 ft3 min-1
Pumping speed
250 m3 h-1 / 147 ft3 min-1
Ultimate pressure
< 0.4 mbar / < 0.03 Torr
Power consumption at 10 mbar / 7.5 Torr
6 Kw / 8 hp
Motor Rating
11 kW / 14.8 hp
Cooling-water flow at 20°C
4 l min-1 / 1.1 gal min-1
Seal purge (dry air)
< 22 l min-1 @ 0.4 bar / < 0.6 ft-3 @ 6 psig
Noise level
79 dB(A)
Inlet connection
ISO100
Outlet connection
ISO63
Weight
750 kg / 1,650 lbs
Gear box oil capacity
1.5 liter / 0.4 gal
Electrical supply
380-400 / 400-415V 60 Hz 3
Specifications
EH1200
Displacement (swept volume)
50 Hz
1
Type
Label
Description
Download
Edwards DRYSTAR GV250 - GV400 - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards GV250 / EH1200 Vacuum Blower System - REBUILT
